STAND

GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

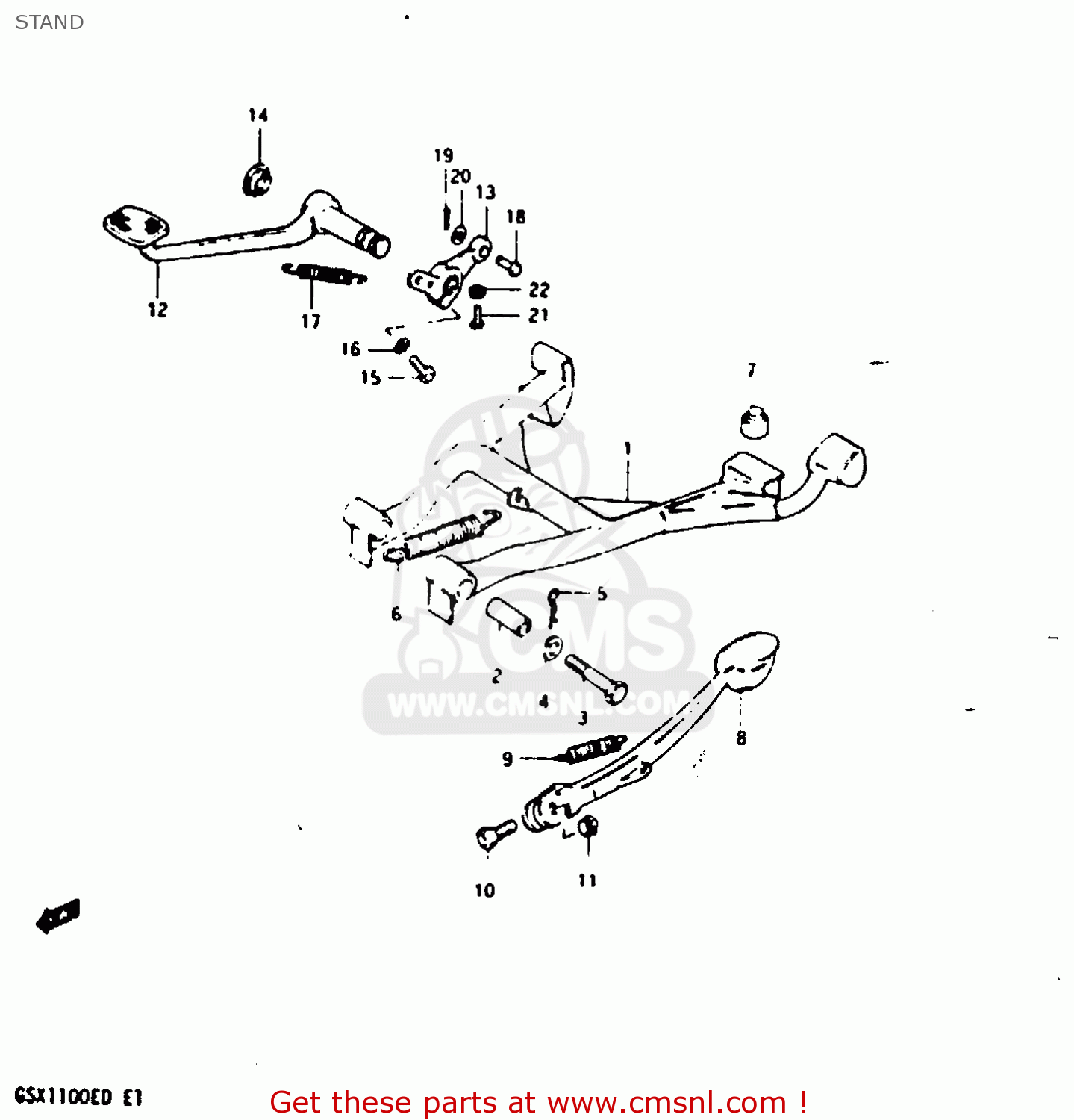

Stand diagram GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

STAND GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

STAND GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

4210049200
ref: 1

STAND,CENTER

€ 197.00

2

0918010040
ref: 2

SPACER(10X16X38.8)

€ 3.00

3

0910110018
ref: 3

BOLT

€ 5.50

4

0832121108
ref: 4

LOCK WASHER

€ 2.00

5

0938510001
ref: 5

CLIP

€ 1.50

6

0944320001
ref: 6

SPRING

€ 11.00

7

0932110001
ref: 7

CUSHION

€ 2.50

8

4231149500
ref: 8

STAND,SIDE

€ 50.00

9

0944317008
ref: 9

SPRING

€ 11.50

10

0910010067
ref: 10

BOLT(10X30)

€ 3.50

11

0831022108
ref: 11

NUT

€ 2.50

12-1

4311049510
ref: 12-1
MODEL Z

PEDAL,BRAKE

€ 63.00

12-2

4311049511
ref: 12-2
MODEL D

PEDAL,BRAKE

€ 63.00

13

4312849510
ref: 13

ARM,BRAKE PEDAL

€ 35.00

14

4311849510
ref: 14
MODEL Z

CAP, BRAKE PEDAL

€ 0.00

15-1

0120408257
ref: 15-1
MODEL Z

BOLT

€ 2.00

15-2

0110708258
ref: 15-2
MODEL D

BOLT

€ 2.50

16

0832121088
ref: 16

LOCK WASHER

€ 2.00

17

0944314013
ref: 17

SPRING

€ 21.50

18

0920006029
ref: 18

PIN

€ 1.50

19

0411120158
ref: 19

PIN

€ 1.50

20

0832221068
ref: 20

WASHER

€ 2.00

21

0110706208
ref: 21

BOLT

€ 2.00

22

0831011068
ref: 22

NUT

€ 2.50
