STEERING STEM (GSX1100ESD)

GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

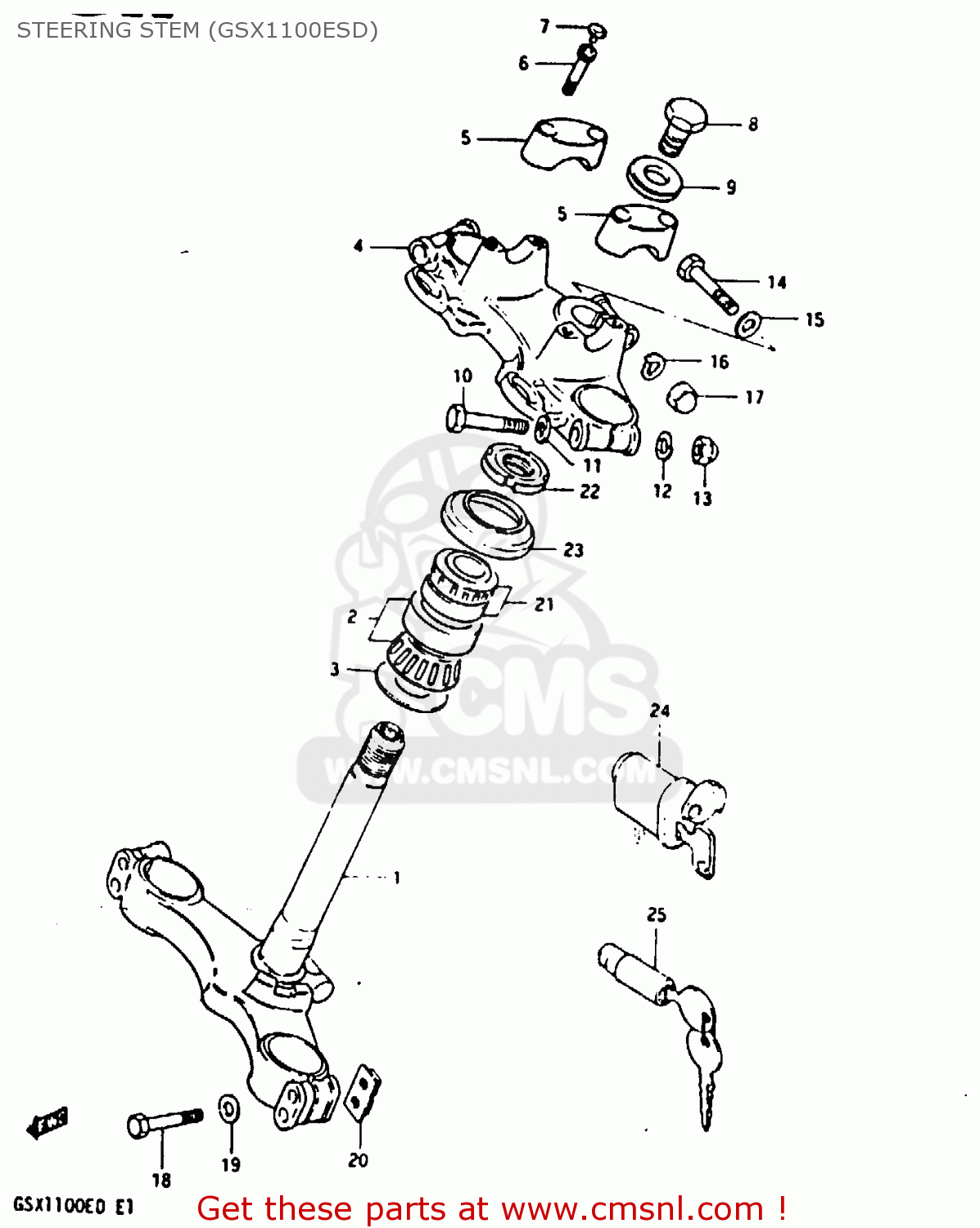

Steering stem (gsx1100esd) diagram GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

STEERING STEM (GSX1100ESD) GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

STEERING STEM (GSX1100ESD) GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

5141049520291
ref: 1

STEM,STEERING

€ 140.00

2

0926530005
ref: 2

BEARING

€ 49.50

3

0821130402
ref: 3

WASHER,THRUST

€ 4.00

4

5131149500291
ref: 4

HEAD,STEERING STEM

€ 198.50

5

5621149500291
ref: 5

HOLDER,HANDLEBAR

€ 26.00

6

0910608013
ref: 6

BOLT

€ 3.00

7

0925006004
ref: 7

CAP(OD:14.5)

€ 1.50

8

5135349300A
ref: 8

NUT,STEM HEAD

€ 11.50

9

5135649300A
ref: 9

WASHER,STEERING STEM B

€ 4.00

10

0110710555
ref: 10

BOLT 10X55

€ 3.50

11

0832221105
ref: 11

WASHER 10MM

€ 2.50

12

0832121105
ref: 12

LOCK WASHER

€ 3.00

13

0831311105
ref: 13

NUT 10MM

€ 2.00

14

0110708505
ref: 14

BOLT

€ 3.00

15

0832221085
ref: 15

WASHER

€ 1.50

16

0832121085
ref: 16

LOCK WASHER

€ 2.50

17

0831311085
ref: 17

NUT,M8X1.25X12

€ 2.00

18

0110708555
ref: 18

BOLT 8X55

€ 3.00

19

0832221085
ref: 19

WASHER

€ 1.50

20

5145849000
ref: 20

NUT,FR FORK INNER TUBE

€ 5.00

21

0926525008
ref: 21

TAPER,ROLLER BEARING

€ 48.50

22

5163134200
ref: 22

NUT,STEERING STEM

€ 23.00

23

5164340502
ref: 23

DUST SEAL,STEERING UPR

€ 8.00

24

NOTUSED
ref: 24

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

25

NOTUSED
ref: 25

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00
