FRONT FORK (GSX1100Z/D/XD)

GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

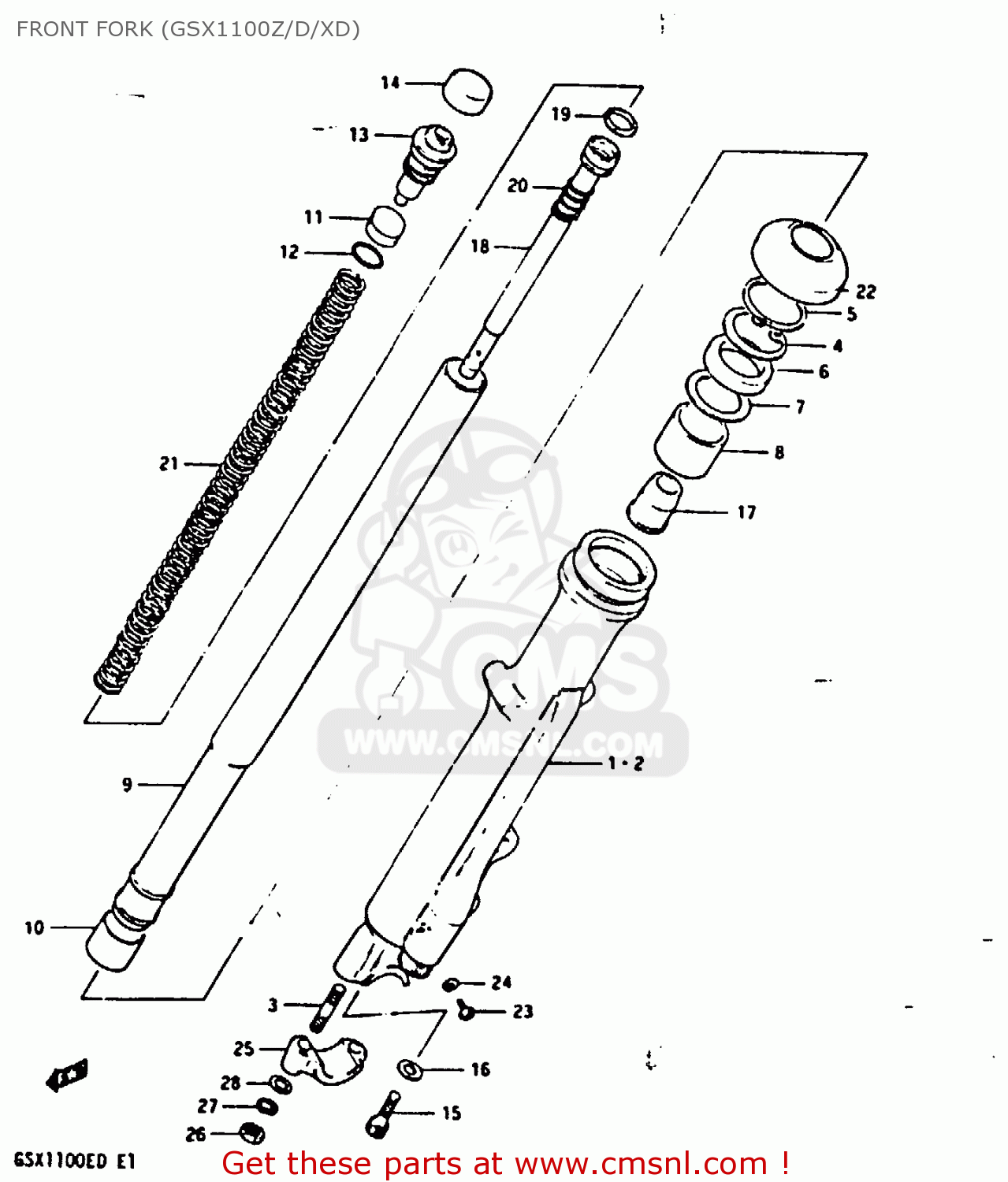

Front fork (gsx1100z/d/xd) diagram GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FRONT FORK (GSX1100Z/D/XD) GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FRONT FORK (GSX1100Z/D/XD) GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

0

5110349530
ref: 0

DUMPER ASSY, RH

€ 0.00

0

5110449530
ref: 0

DUMPER ASSY, LH

€ 0.00

1

5113049530291
ref: 1

OUTER TUBE, RH

€ 0.00

2

5114049530291
ref: 2

OUTER TUBE, LH

€ 0.00

3

0141108308
ref: 3

STUD 8X30

€ 2.00

4

5115640301
ref: 4

RING,STOPPER

€ 4.50

5

5115849000
ref: 5

WASHER. FRONT FORK

€ 7.00

6

5115349001
ref: 6

OIL SEAL,FRONT FORK

€ 16.50

7

5115849500
ref: 7

WASHER

€ 4.00

8

5116749500
ref: 8

METAL,SLIDE

€ 10.50

9

5111049530
ref: 9

INNER TUBE

€ 0.00

10

5112149500
ref: 10

METAL,FRONT FORK PISTON

€ 17.50

11

5117245110
ref: 11

PISTON,FREE

€ 10.50

12

5111745110
ref: 12

O-RING

€ 4.00

13

5135149200
ref: 13

CAP

€ 59.00

14

5118949300
ref: 14

CAP,RUBBER

€ 9.00

15

5114716510
ref: 15

BOLT,FORK CYLINDER(10X25)

€ 3.50

16

5114841310
ref: 16

GASKET (NAS)

€ 2.50

17

5119549530
ref: 17

PIECE, OIL LOCK

€ 0.00

18

5114649530
ref: 18

CYLINDER

€ 0.00

19

5119649000
ref: 19

RING,PISTON

€ 9.00

20

5117749200
ref: 20

SPRING,FORK REBOUND

€ 7.00

21

5117149530
ref: 21

SPRING

€ 0.00

22

5117349002
ref: 22

SEAL,DUST

€ 13.00

23

0211204088
ref: 23

SCREW

€ 1.50

24

5118303010
ref: 24

GASKET,DRAIN,PLUG (NAS)

€ 3.00

25

5113249500291
ref: 25

HOLDER,AXLE

€ 24.50

26

0914008005
ref: 26

NUT (8MM)

€ 1.50

27

0832121088
ref: 27

LOCK WASHER

€ 2.00

28

0832221088
ref: 28

WASHER

€ 2.00
