CRANKCASE
GSX1100G 1992 (N) USA (E03)

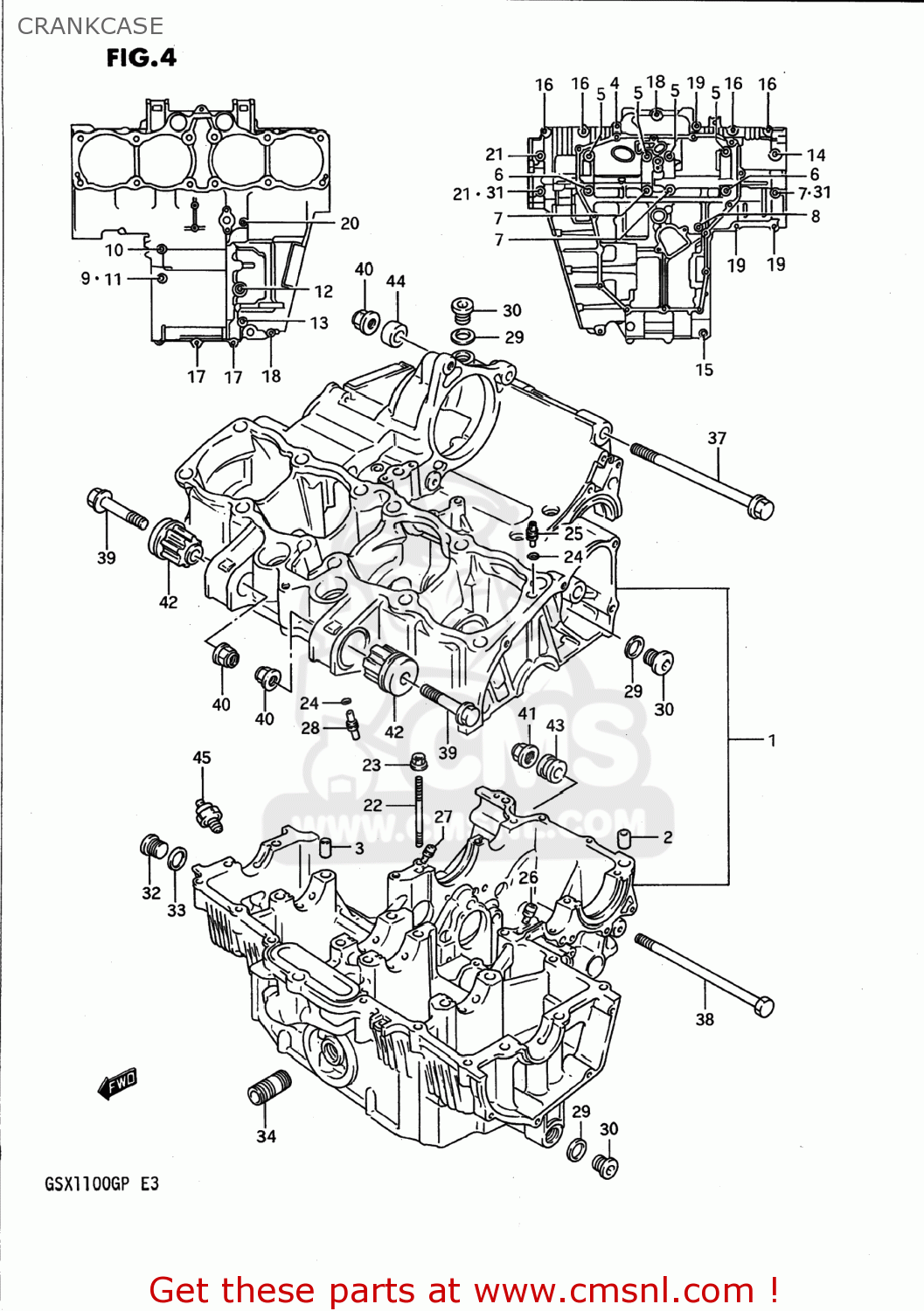

Crankcase diagram GSX1100G 1992 (N) USA (E03)
CRANKCASE GSX1100G 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130126851
ref: 1
CRANKCASE SET
€ 1,934.50
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0920611005
ref: 3
09206-11017
PIN (11X20)(SUS)
€ 6.50
4
0910306020
ref: 4
09103-06060
BOLT 6X100
€ 2.50
5
0910308209
ref: 5
09103-08212
BOLT 8X135
€ 7.00
6
0910308298
ref: 6
BOLT(8X145)
€ 8.00
7
0910308301
ref: 7
09103-08317
BOLT
€ 5.50
8
0910306148
ref: 8
BOLT(6X120)
€ 5.00
9
0916808016
ref: 9
GASKET(8.2X14X1) (NAS)
€ 1.00
10
0711008508
ref: 10
07130-0850A
BOLT ,8X50
€ 3.50
11
0711008608
ref: 11
07130-0860B
BOLT, REAR RH
€ 4.50
12
0711008708
ref: 12
07130-0870B
BOLT
€ 4.00
13
0711008758
ref: 13
07130-08757
BOLT
€ 0.00
14
0910308300
ref: 14
BOLT(8X85)
€ 3.00
15
0713008808
ref: 15
07130-0880B
BOLT
€ 3.00
16
0151706358
ref: 16
01550-06357
BOLT 6X35
€ 2.50
17
0151706408
ref: 17
01550-06407
BOLT
€ 2.50
18
0151706608
ref: 18
01550-06607
BOLT (6X60)
€ 2.50
19
0151706557
ref: 19
01550-06557
BOLT
€ 2.50
20
0151706808
ref: 20
01550-06807
BOLT (6X80)
€ 3.00
21
0910308105
ref: 21
BOLT(8X95)
€ 3.00
22
0142106708
ref: 22
STUD BOLT
€ 2.00
23
0915906017
ref: 23
08319-31067
NUT
€ 2.50
24
0928004004
ref: 24
O RING(D:1.2,ID:4)
€ 2.00
25
0949314002
ref: 25
JET,AIR
€ 8.00
26
0949324010
ref: 26
JET
€ 12.00
27
0949328012
ref: 27
JET(140)
€ 8.00
28
0949380011
ref: 28
JET
€ 10.50
29
0916816002
ref: 29
GASKET(16X22X2) (NAS)
€ 2.00
30
0924816008
ref: 30
PLUG
€ 4.00
31
0916808021
ref: 31
GASKET(8.5X17X2.3) (NAS)
€ 3.00
32
0924814005
ref: 32
PLUG,14X12
€ 5.00
33
0916814004
ref: 33
GASKET(14X19.2X2) (NAS)
€ 2.50
34
1659106B00
ref: 34
16591-06B01
UNION,OIL STAND
€ 6.00
35
1222848B000E0
ref: 35
BEARING,CRANK THRUST(GREEN)
€ 8.00
35
1222848B000E0
ref: 35
BEARING,CRANK THRUST(GREEN)
€ 8.00
36-1
1222848B000C0
ref: 36-1
BEARING,CRANK THRUST(RED)
€ 7.50
36-1
1222848B000C0
ref: 36-1
BEARING,CRANK THRUST(RED)
€ 7.50
36-2
1222848B000E0
ref: 36-2
BEARING,CRANK THRUST(GREEN)
€ 8.00
36-3
1222848B000H0
ref: 36-3
BEARING,CRANK THRUST(BLACK)
€ 7.50
37
0910310167
ref: 37
BOLT L:165
€ 12.50
38
0910012066
ref: 38
BOLT 12X151
€ 13.50
39
0151710555
ref: 39
01550-1055B
BOLT
€ 3.00
40
0915910044
ref: 40
09159-10115
NUT (10MM)
€ 4.00
41
0831931125
ref: 41
08319-3112B
NUT 12MM
€ 3.00
42
1168127A00
ref: 42
BUSH,ENGINE MOUNTING
€ 27.00
43-1
1161119B10
ref: 43-1
11611-19B13
SPACER,ENGINE MOUNT
€ 10.00
43-2
1161119B11
ref: 43-2
11611-19B13
SPACER,ENGINE MOUNT
€ 10.00
44
1161136A50
ref: 44
SPACER,ENGINE MOUNT
€ 7.00
45-1
3782033200
ref: 45-1
37820-33D10
SWITCH ASSEMBLY
€ 29.00
45-2
3782033D00
ref: 45-2
37820-33D10
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
