STARTING MOTOR
GSX1100G 1992 (N) USA (E03)

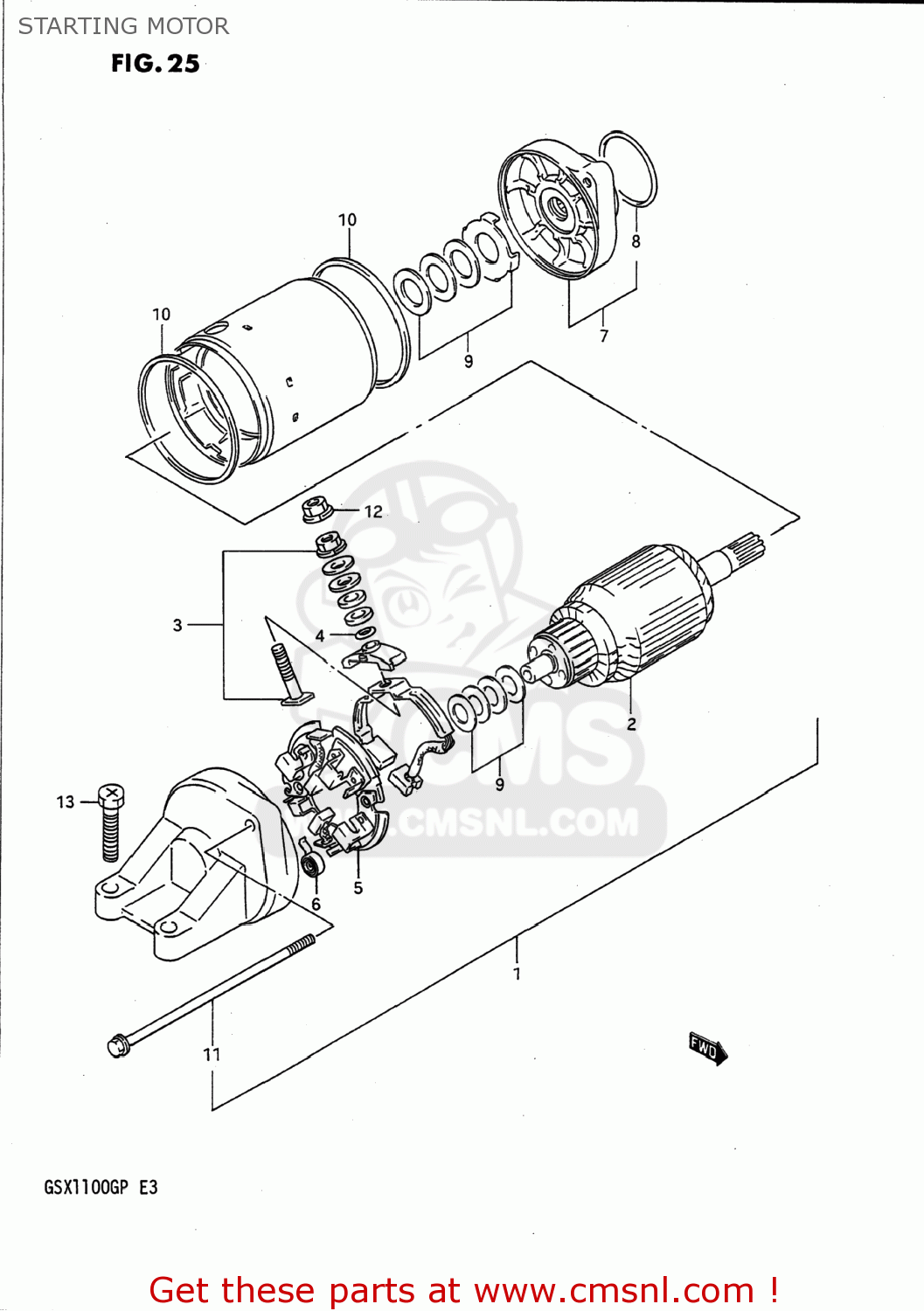

Starting motor diagram GSX1100G 1992 (N) USA (E03)
STARTING MOTOR GSX1100G 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110026D00
ref: 1
31100-26D10
MOTOR ASSEMBLY,STARTING (SI
€ 943.50
2
3131040C02
ref: 2
ARMATURE
€ 261.50
3
3113038B00
ref: 3
TERMINAL SET,BRUSH
€ 45.00
4
3114349040
ref: 4
O RING
€ 3.00
5
3113238B00
ref: 5
HOLDER SET,BRUSH
€ 45.00
6
3113538B00
ref: 6
SPRING,BRUSH
€ 3.50
7
3115026D00
ref: 7
BRACKET ASSY,FR
€ 129.00
8
3115640C00
ref: 8
31156-48B00
O-RING
€ 8.50
9
3117019B10
ref: 9
SHIM SET,STARTING MOTOR
€ 8.00
10
3126431300
ref: 10
31264-32E00
O RING
€ 7.50
11
3128026D00
ref: 11
BOLT
€ 12.50
12
0836135066
ref: 12
08361-3506A
NUT
€ 2.00
13
0912806024
ref: 13
09103-06212
SCREW (6X25)
€ 2.50
