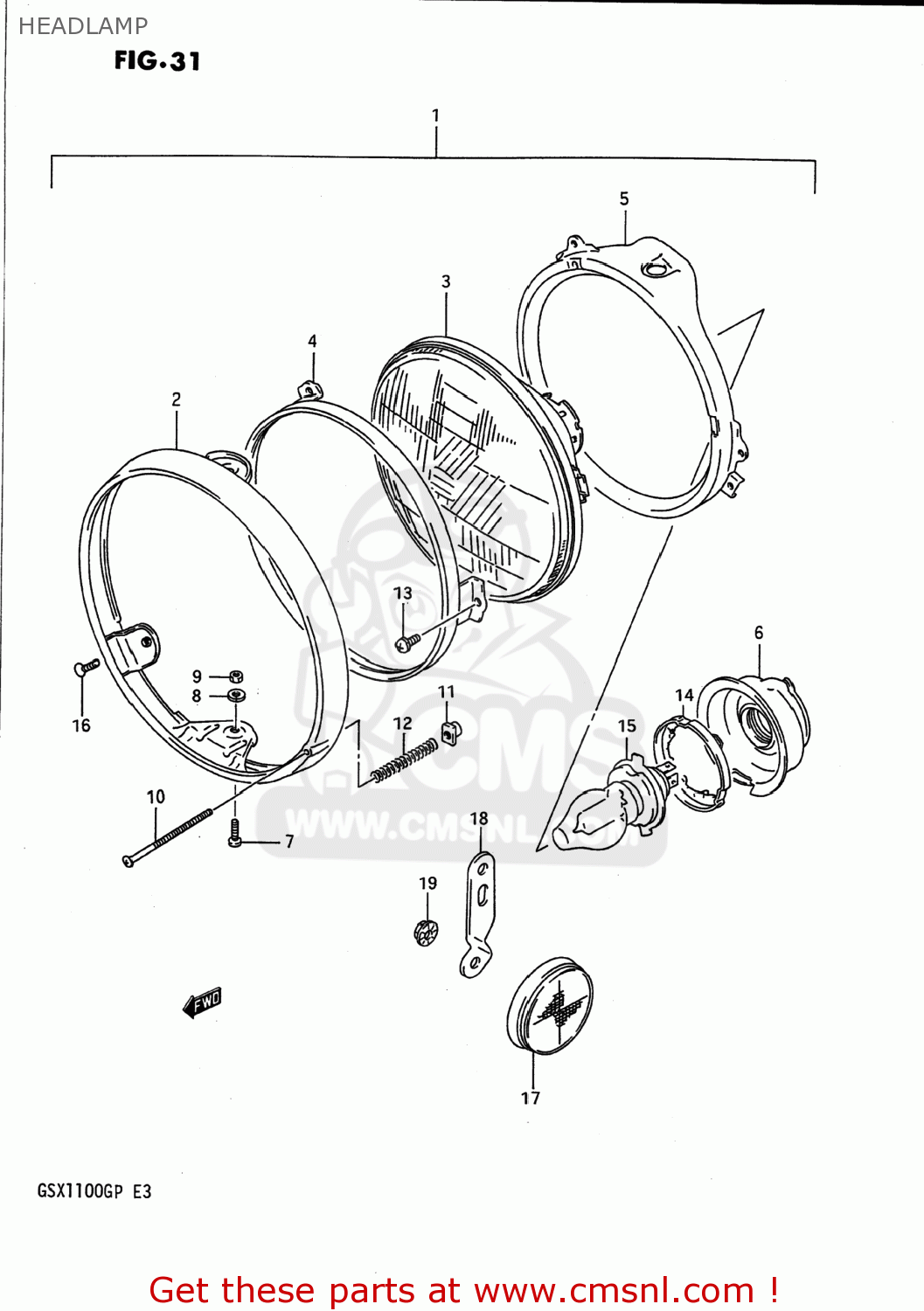

HEADLAMP

ref

part #

description

quantity

1

3510001D30
ref: 1

HEADLAMP ASSY

€ 244.50

2

3511101D20
ref: 2

RIM,HEADLAMP

€ 55.50

3

3512134430
ref: 3

LAMP UNIT

€ 100.00

4

3512745030
ref: 4

RETAINING RING

€ 19.50

5

3513045030
ref: 5

RING

€ 29.50

6

3517345000
ref: 6
35173-20A01

COVER,HEADLAMP SOCKET

€ 14.50

7

3518115611
ref: 7

H/LAMP LENS UNIT FITING SCRE

€ 3.00

8

0832121057
ref: 8
08321-0105A

LOCK WASHER

€ 2.00

9

0831011056
ref: 9
08310-0005A

NUT

€ 2.50

10

3515145030
ref: 10
35151-45900

SCREW,HEADLAMP ADJUST

€ 4.00

11

3515215611
ref: 11

NUT

€ 3.50

12

3515431900
ref: 12

SPRING,ADJUSTING

€ 3.50

13

0211204106
ref: 13
02112-0410A

SCREWM4X0.7X10

€ 1.00

14

3513634400
ref: 14

SETTING,BULB

€ 4.50

15

0947112060
ref: 15

BULB(12V60/55W,H4)

€ 8.00

16

0213205127
ref: 16
02122-05127

SCREW 5X12

€ 2.50

17

3595014A00
ref: 17

REFLECTOR,REFLEX FR

€ 15.00

18-1

3595626D00
ref: 18-1

BRACKET,FRONT SIDE REFLECTOR

€ 0.00

18-2

3595726D00
ref: 18-2

BRACKET,FRONT SIDE REFLECTOR

€ 0.00

19

0831626055
ref: 19
08316-2005A

NUT

€ 2.00

all assemblies
