prices are in EUR

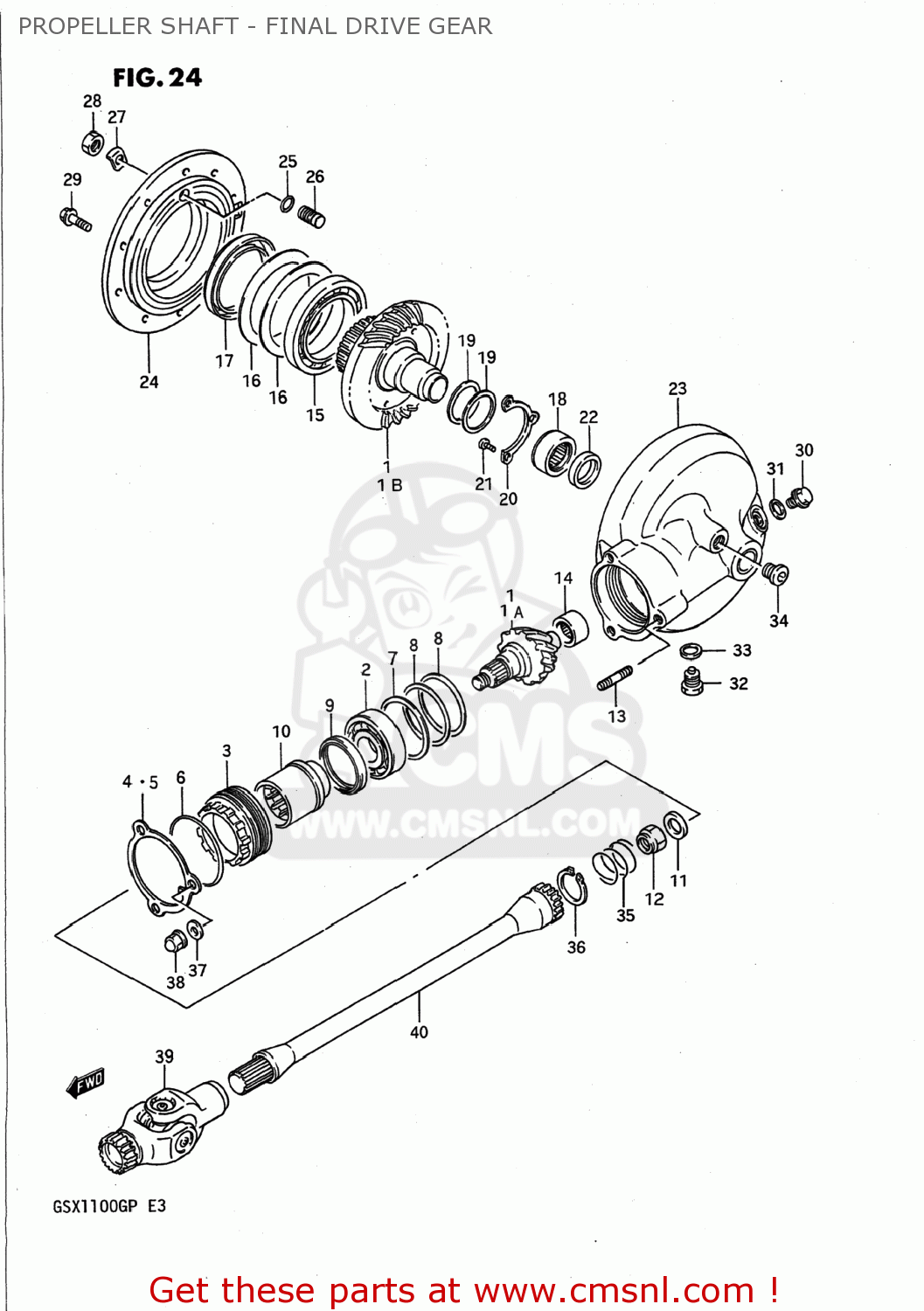

ref
part #
description
quantity
GEAR & CASE SET,FINAL BEVEL
1
GEAR & CASE SET,FINAL BEVEL
1A
GEAR,FINAL DRIVE BEVEL
1B
GEAR,FINAL DRIVEN BEVEL
2
BEARING(28X68X18)
3
STOPPER,FINAL DRIVE BEARING
4
PLATE,BEARING STOPPER
5
PLATE,BEARING STOPPER
6
O RING(D:3.1,ID:63.9)
7
WASHER(54X68X1.5)
8-1
SHIM,FINAL DRIVE GEAR 62
8-2
SHIM,FINAL DRIVE GEAR 62
8-3
SHIM,FINAL DRIVE GEAR 62
8-4
SHIM,FINAL DRIVE GEAR 62
8-5
SHIM,FINAL DRIVE GEAR 62
9
SEAL,OIL
10
COUPLING,FINAL DRIVE GEAR
11
WASHER(16X29X4)
12
NUT
13
STUD 10X25
14
BEARING(20X34X18)
15
BEARING(70X110X13)
16-1
SHIM,DRIVEN GEAR BEARING
16-2
SHIM,DRIVEN GEAR BEARING
16-3
SHIM,DRIVEN GEAR BEARING
16-4
SHIM,DRIVEN GEAR BEARING
17
SEAL,OIL(70X96X16)
18
BEARING(35X48X23.7)
19-1
SHIM,FINAL DRIVEN GEAR
19-2
SHIM,FINAL DRIVEN GEAR
19-3
SHIM,FINAL DRIVEN GEAR
19-4
SHIM,FINAL DRIVEN GEAR
19-5
SHIM,FINAL DRIVEN GEAR
19-6
SHIM,FINAL DRIVEN GEAR
19-7
SHIM,FINAL DRIVEN GEAR
19-8
SHIM,FINAL DRIVEN GEAR
20
RETAINER,FINAL DRIVEN GEAR BRG
21
SCREW 6X12
22
SEAL,OIL(30X42X7)
24
CASE,FINAL GEAR BEARING
25
O RING(D:1.9,ID:9.8)
26
BOLT,FINAL DRIVEN GEAR THRUST
30
PLUG (14X12)
31
GASKET(14X19.2X2) (NAS)
33
GASKET(14X19.2X2) (NAS)
34
PLUG
35
SPRING
36
CIRCLIP
37
WASHER
38
NUT
39
YOKE COMP,UNIVERSAL JOINT
