HEADLAMP HOUSING
GSX1100G 1992 (N) USA (E03)

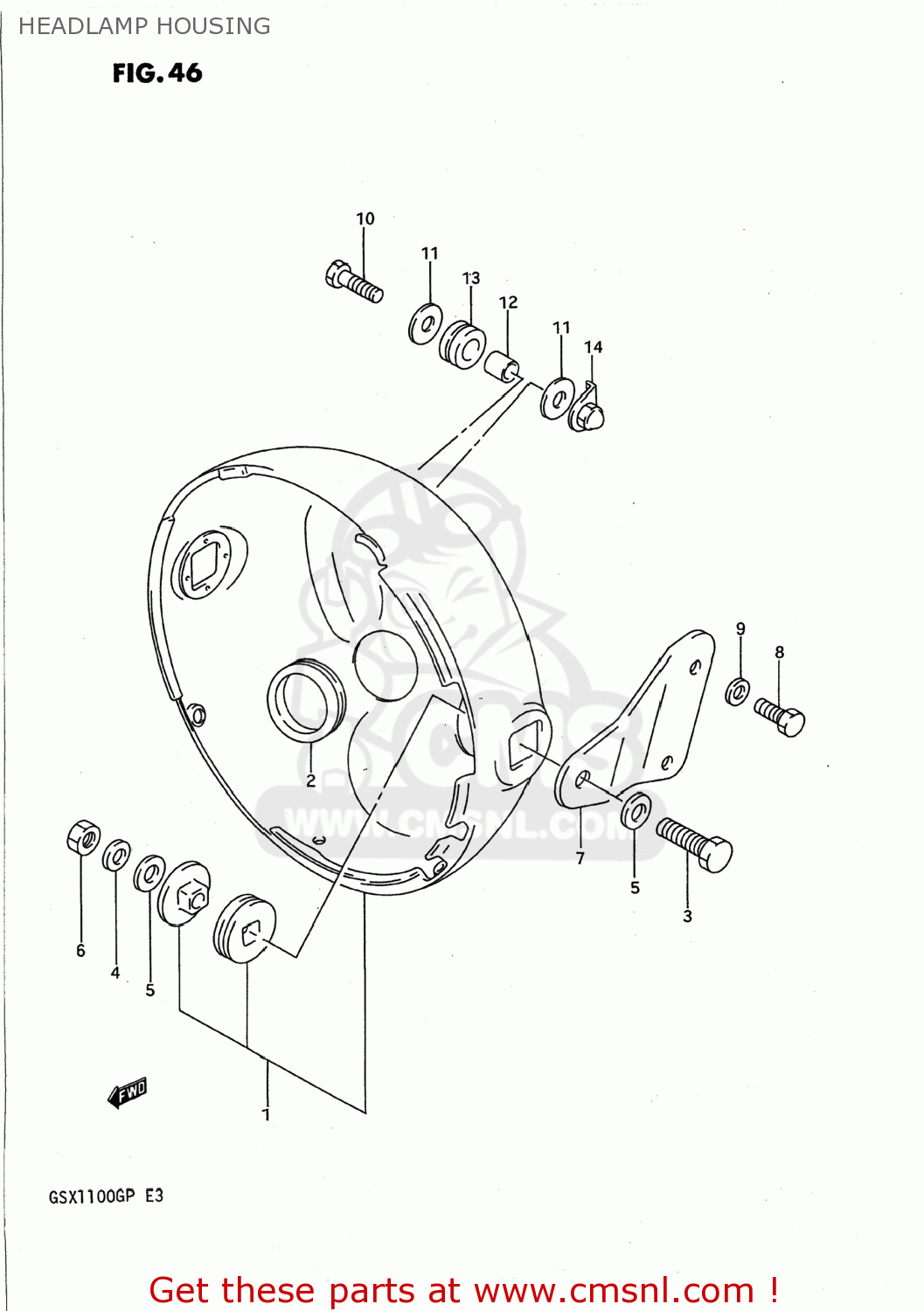

Headlamp housing diagram GSX1100G 1992 (N) USA (E03)
HEADLAMP HOUSING GSX1100G 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5181001D11
ref: 1
HOUSING,HEADLAMP
€ 124.00
2
5181701D00
ref: 2
51817-01D01
GROMMET
€ 4.50
3
0120408307
ref: 3
BOLT
€ 2.50
4
0832121088
ref: 4
08321-01087
LOCK WASHER
€ 2.00
5
0832211088
ref: 5
08322-01087
WASHER
€ 2.00
6
0831012088
ref: 6
08310-00087
NUT
€ 2.00
7-1
5185126D00
ref: 7-1
STAY,HEADLAMP HOUSING,R
€ 45.50
7-2
5186126D00
ref: 7-2
STAY,HEADLAMP HOUSING,L
€ 46.50
8
0120406127
ref: 8
BOLT
€ 1.50
9
0832221067
ref: 9
08322-01067
WASHER
€ 2.00
10
0123406258
ref: 10
01234-0625A
BOLT
€ 1.50
11
0916006006
ref: 11
09160-06084
WASHER
€ 2.00
12
0918007004
ref: 12
SPACER(6.5X10.5X12)
€ 2.50
13
0932010015
ref: 13
CUSHION
€ 2.50
14
5181506C00
ref: 14
PLATE,HEADLAMP
€ 5.00
