REAR MASTER CYLINDER
GSX1100G 1992 (N) USA (E03)

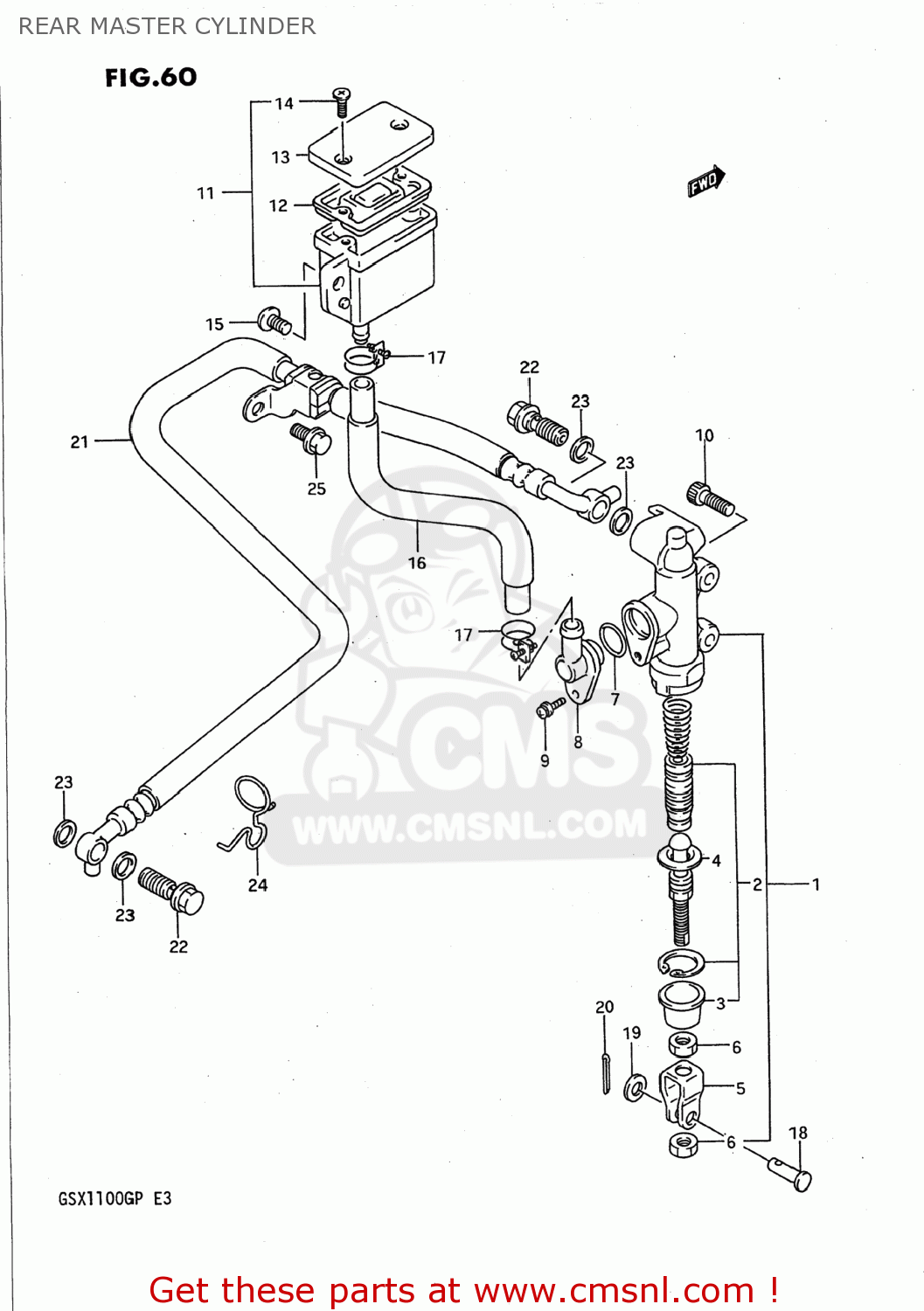

Rear master cylinder diagram GSX1100G 1992 (N) USA (E03)
REAR MASTER CYLINDER GSX1100G 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960026D00
ref: 1
CYLINDER ASSEMBLY,REAR MASTER
€ 146.50
2
6960004820
ref: 2
PISTON/CUP SET
€ 31.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6967000B21
ref: 4
ROD,PUSH
€ 24.00
5
6969227A30
ref: 5
YOKE
€ 12.50
6
6969305A00
ref: 6
NUT
€ 1.50
7
6968634200
ref: 7
O RING
€ 3.50
8
6967205A00
ref: 8
CONNECTOR
€ 4.50
9
0211274125
ref: 9
02112-7412A
SCREW
€ 2.50
10
0711006205
ref: 10
07130-0620B
BOLT
€ 3.00
11-1
6974024A00
ref: 11-1
69740-24A01
TANK ASSEMBLY,RESERVOIR
€ 99.50
11-1
6974024A00
ref: 11-1
69740-24A01
TANK ASSEMBLY,RESERVOIR
€ 99.50
11-2
6974024A01
ref: 11-2
TANK ASSY,RESERVOIR
€ 99.50
12
5966704700
ref: 12
DIAPHRAGM
€ 8.00
13-1
6966924A01
ref: 13-1
CAP
€ 12.00
13-2
5966905D00
ref: 13-2
CAP
€ 13.50
14
6968904A00
ref: 14
SCREW
€ 2.00
15
0214206127
ref: 15
SCREW 6X12
€ 1.50
16
6973126D00
ref: 16
HOSE,RESERVOIR TANK
€ 26.00
17
0940015302
ref: 17
CLAMP
€ 2.50
18
0920006037
ref: 18
09200-06068
PIN
€ 5.00
19
0832221067
ref: 19
08322-01067
WASHER
€ 2.00
20
0411120158
ref: 20
04111-2015A
PIN
€ 1.50
21-1
6948026D00
ref: 21-1
69480-26D01
HOSE COMP,REAR BRAKE
€ 80.00
21-1
6948026D00
ref: 21-1
69480-26D01
HOSE COMP,REAR BRAKE
€ 80.00
21-2
6948026D01
ref: 21-2
HOSE,REAR BRAKE
€ 80.00
22
0936010017
ref: 22
BOLT UNION
€ 6.50
23
0916110009
ref: 23
WASHER(10X15X1.5)
€ 2.00
24
6924319C00
ref: 24
GUIDE,BRAKE HOSE
€ 3.00
25
0151706105
ref: 25
01550-0610A
BOLT
€ 2.50
