GEAR SHIFTING
GSX1100G 1992 (N) USA (E03)

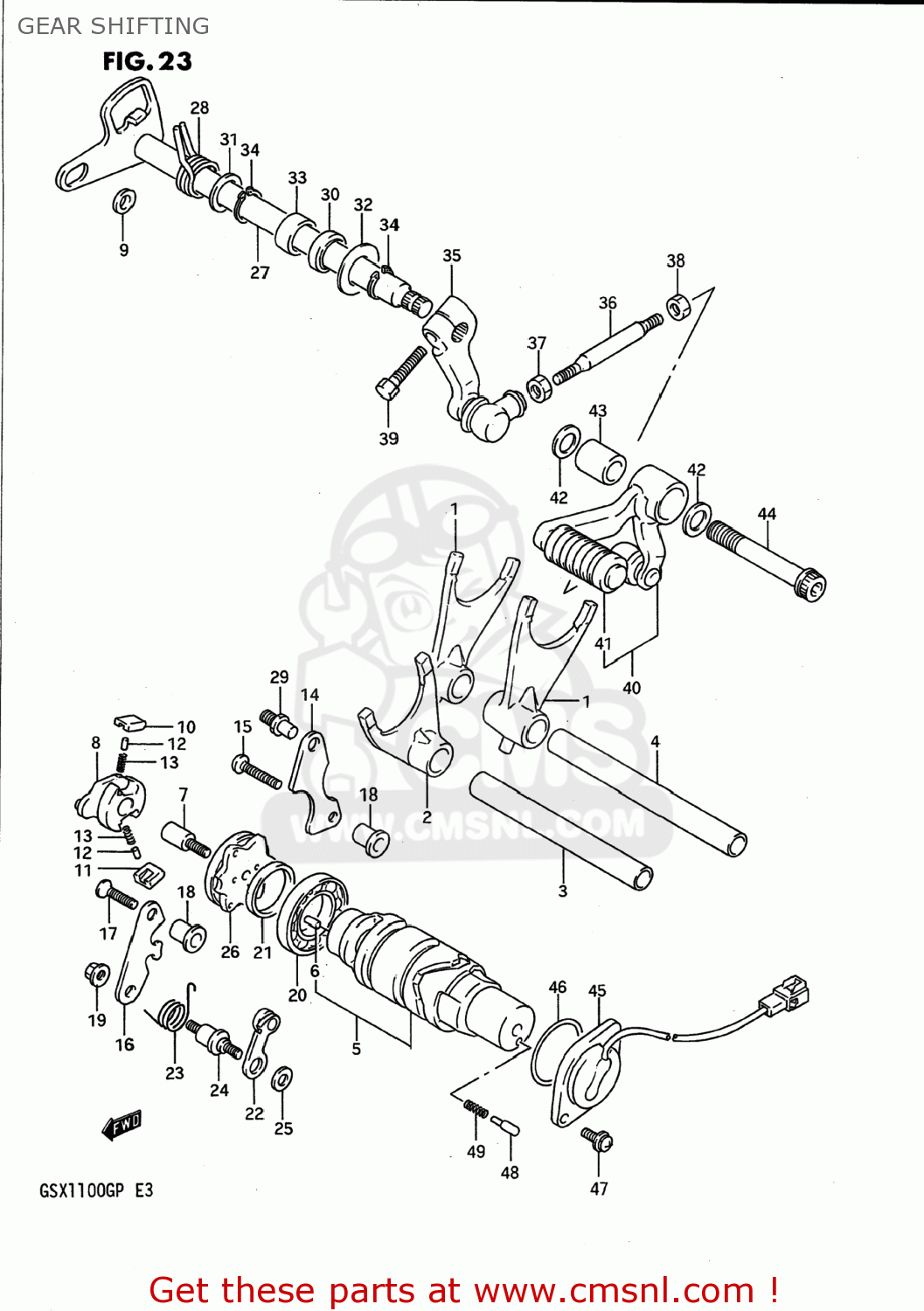

Gear shifting diagram GSX1100G 1992 (N) USA (E03)
GEAR SHIFTING GSX1100G 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521126D00
ref: 1
FORK,GEAR SHIFT NO.1
€ 66.50
2
2523126D01
ref: 2
FORK,GEAR SHIFT NO.3
€ 44.00
3-1
2541126D00
ref: 3-1
25411-26D01
SHAFT,GEAR SHIFT FORK
€ 16.00
3-2
2541126D01
ref: 3-2
SHAFT,GEAR SHIFT FORK
€ 16.00
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
€ 23.50
5
2531026D00
ref: 5
CAM COMP,GEAR SHIFT
€ 130.50
6
0422104089
ref: 6
PIN
€ 1.50
7
2531212C00
ref: 7
PIN,SHIFT CAM DRIVEN GEAR
€ 6.00
8
2532233C00
ref: 8
25322-33C01
SHIFTER,GEAR SHIFT CAM
€ 49.50
9
0918007014
ref: 9
SPACER(7X10X5)
€ 4.00
10
2532334201
ref: 10
PAWL,GEAR SHIFT NO.1
€ 6.00
11
2532434201
ref: 11
PAWL,GEAR SHIFT NO.2
€ 6.00
12
0926105003
ref: 12
PIN(5X8)
€ 1.50
13
0944004003
ref: 13
SPRING
€ 1.50
14
2533126D00
ref: 14
LIFTER,GEAR SHIFT PAWL
€ 6.00
15
0211206308
ref: 15
02112-06307
SCREW 6X30
€ 2.50
16
2534126D00
ref: 16
GUIDE,GEAR SHIFT CAM
€ 5.50
17
0212206308
ref: 17
02122-0630B
SCREW
€ 2.00
18
0918006202
ref: 18
SPACER(6.1X10X16)
€ 4.00
19
0915906017
ref: 19
08319-31067
NUT
€ 2.50
20
0926225002
ref: 20
09262-25006
BEARING
€ 24.00
21
0916025059
ref: 21
WASHER(25X32X3)
€ 5.00
22-1
2535026D00
ref: 22-1
25350-26D01
STOPPER,SHIFT CAM
€ 8.50
22-2
2535026D01
ref: 22-2
STOPPER,GEAR SHIFT CAM
€ 8.50
23
2535526D00
ref: 23
25355-26D21
SPRING,STOPPER ARM
€ 11.00
24
2535612C00
ref: 24
SUPPORT,CAM STOPPER ARM
€ 9.50
25
0821106141
ref: 25
WASHER
€ 2.50
26
2538012B00
ref: 26
PLATE,GEAR SHIFT CAM
€ 10.00
27
2551026D00
ref: 27
SHAFT COMP,GEAR SHIFTING
€ 54.00
28
0944420001
ref: 28
SPRING
€ 5.00
29
2567101000
ref: 29
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
30
0928314005
ref: 30
SEAL,OIL(14X22X7.3)
€ 6.50
31
0821114221
ref: 31
09181-14167
WASHER,THRUST
€ 3.50
32
0916014034
ref: 32
09160-14060
WASHER
€ 3.00
33
0926314027
ref: 33
BEARING(14X20X12)
€ 11.00
34
0833131146
ref: 34
08331-3114A
CIRCLIP
€ 2.00
35
2552026D00
ref: 35
ARM,GEAR SHIFT LINK
€ 47.50
36
2552549010
ref: 36
25525-26D00
ROD,GEAR SHIFT LINK
€ 6.50
37
0914006011
ref: 37
NUT
€ 1.50
38
0831011067
ref: 38
08310-00067
NUT 6MM
€ 2.50
39
0110706207
ref: 39
01500-06207
BOLT
€ 2.00
40
2560026D01
ref: 40
25600-26D02
LEVER ASSEMBLY,GEAR SHIFTING
€ 39.50
41
2565220C00
ref: 41
RUBBER,GEAR SHIFT PEDAL
€ 8.00
42
0832221108
ref: 42
08322-01107
WASHER
€ 2.50
43
0918010130
ref: 43
SPACER(10X18X22)
€ 12.50
44
0712010708
ref: 44
07120-10707
BOLT
€ 4.00
45
3772048B00
ref: 45
TERMINAL BASE ASSY,NEUTRAL
€ 57.00
46
0928036001
ref: 46
O RING(D:2.4,ID:36.5)
€ 4.50
47
0913805003
ref: 47
09138-05011
SCREW
€ 1.50
48
0920905011
ref: 48
PIN(5X15.5)
€ 2.00
49
0944004010
ref: 49
SPRING
€ 1.50
