FRONT MASTER CYLINDER

GSX1100G 1992 (N) USA (E03)

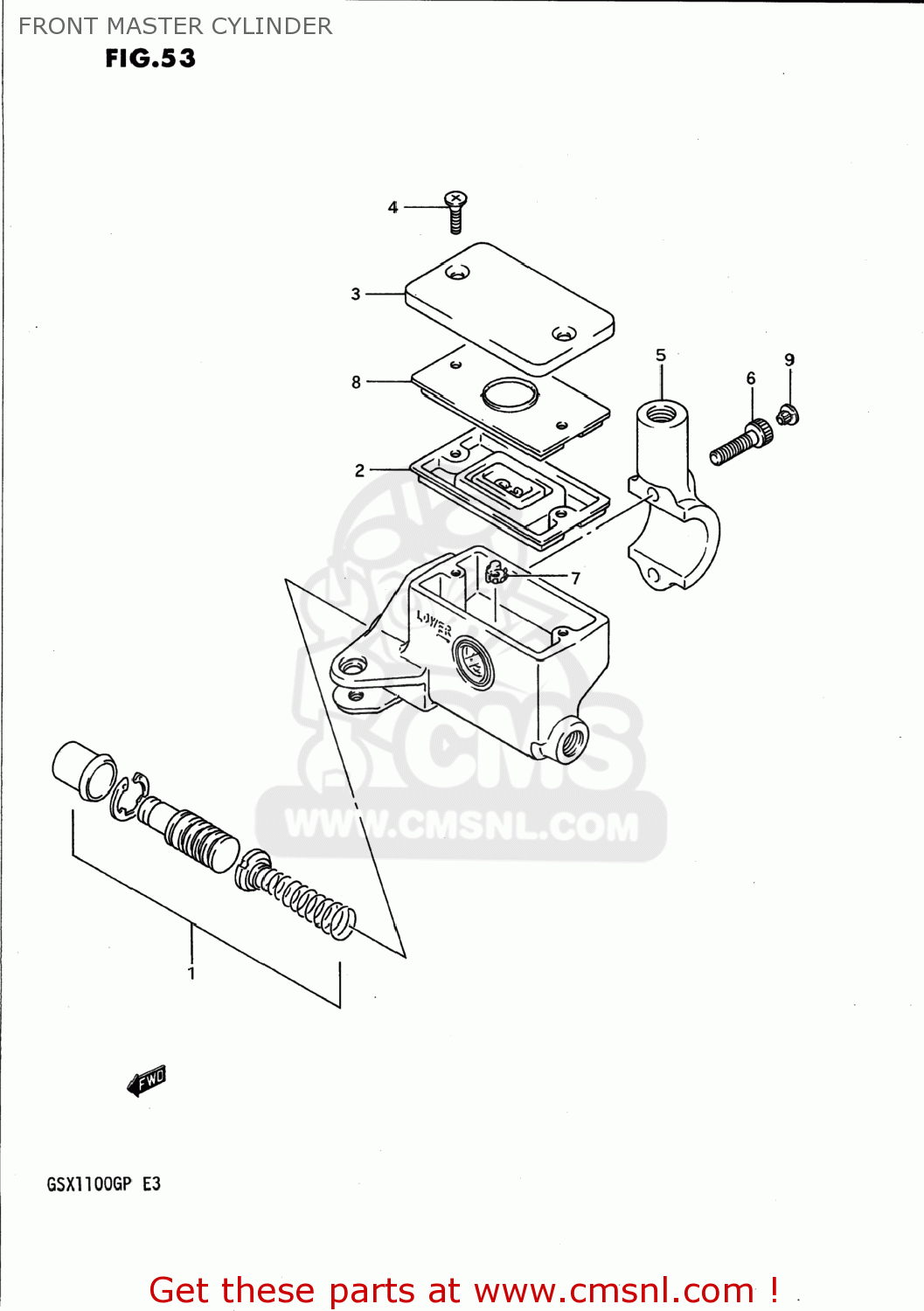

Front master cylinder diagram GSX1100G 1992 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

5960026D00
ref:

CYLINDER ASSEMBLY,FRONT MASTER

€ 191.00

5960045860
ref: 1

PISTON & CUP SET

€ 44.00

5966749460
ref: 2

5966749460

5966926D00
ref: 3

CAP

€ 48.00

5969138A00
ref: 4
02122-04127

SCREW,RESERVOIR CAP

€ 2.00

5967126D00
ref: 5

HOLDER

€ 65.50

0711006208
ref: 6
07130-06207

BOLT ,6X20

€ 3.50

5966448B00
ref: 7

PROTECTOR

€ 8.00

5966841C00
ref: 8

PLATE,DIAPHRAGM

€ 8.00

0925005008
ref: 9

CAP(OD:10)

€ 5.00
