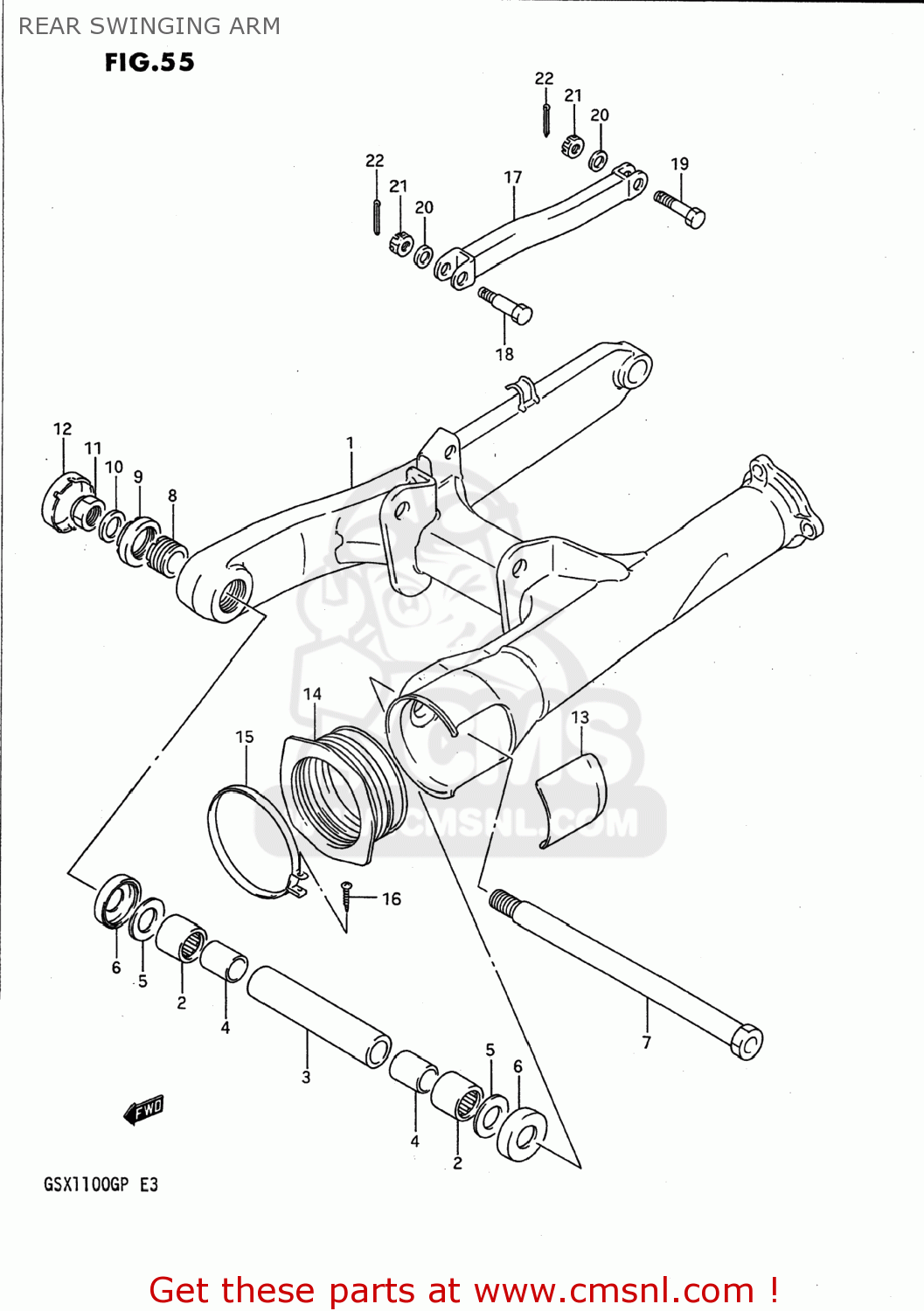

REAR SWINGING ARM

ref

part #

description

quantity

1

6110026D00019
ref: 1
61100-26D01-019

SWING ARM ASSEMBLY,REAR

€ 884.00

2

0926325024
ref: 2

BEARING(25X33X30)

€ 31.50

3

0918020111
ref: 3

SPACER (20.8X27.2X143)

€ 18.00

4

6125117C00
ref: 4

SPACER,RR SWGARM PIVOT BERRING

€ 36.00

5

0821120381
ref: 5

WASHER

€ 3.00

6

6126210D00
ref: 6

COVER,RR SWGARM PIVOT SEAL

€ 9.00

7

6121126D00
ref: 7

SHAFT,REAR SWING ARM

€ 46.00

8

6121322D00
ref: 8

BOLT,RR SWGARM PIVOT

€ 36.50

9

6121440C30
ref: 9
61214-40C31

NUT,REAR SWING ARM PIVOT

€ 16.50

10

0916018026
ref: 10
09160-18030

WASHER (18.2X28X2.6)

€ 2.50

11

0915918004
ref: 11

NUT

€ 23.00

12

6122243400
ref: 12

CAP,SWINGINGARM PIVOT

€ 4.00

13

6123026D01019
ref: 13

COVER,REAR SWING ARM PIVOT

€ 20.50

14

6137238B00
ref: 14

BOOT,PROPELLER SHAFT

€ 16.50

15

0940292306
ref: 15
09402-92306-XC0

CLAMP

€ 8.50

16

0321104255
ref: 16
03211-0425B

SCREW 4X25

€ 2.00

17

6431026D00
ref: 17

TORQUELINK,RR

€ 36.00

18

0911110016
ref: 18

BOLT(10X41)

€ 6.50

19

0910110036
ref: 19

BOLT(10X35)

€ 4.50

20

0916010069
ref: 20
09160-10005

WASHER (10X18X3.2)

€ 2.00

21

0831441108
ref: 21
08314-4010B

NUT

€ 2.50

22

0411120208
ref: 22
04111-2020A

PIN 20X20

€ 1.50
