CARBURETOR

GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

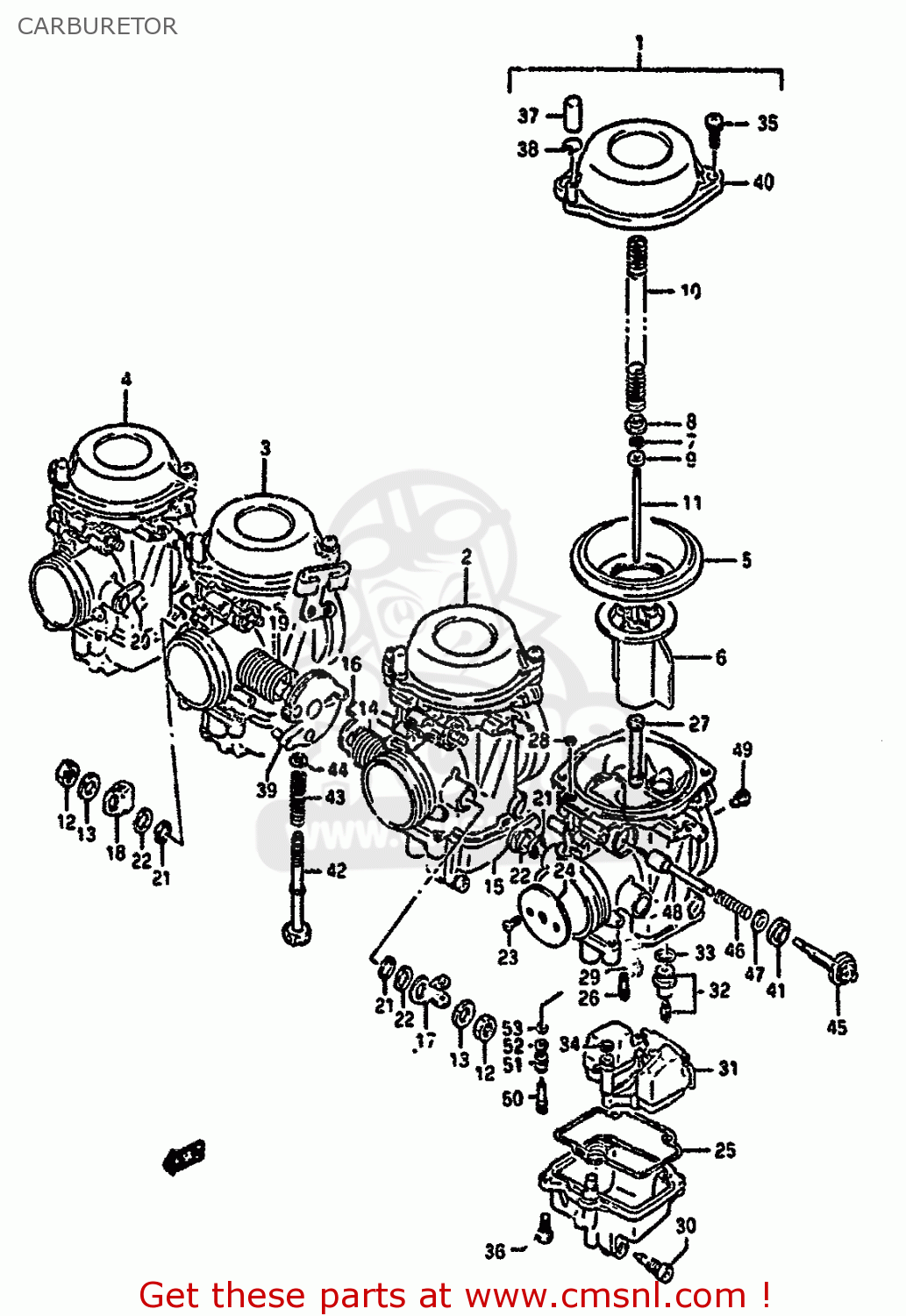

Carburetor diagram GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

CARBURETOR GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
CARBURETOR GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
CARBURETOR GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1320126D00
ref: 1-1
CARBURETOR ASSY,LH
€ 461.00
1-2
1320126D50
ref: 1-2
E15,E24
CARBURETOR ASSY,LH
€ 0.00
1-3
1320126D80
ref: 1-3
E17
CARBURETOR ASSY,LH
€ 0.00
1-4
1320126D30
ref: 1-4
E18
CARBURETOR ASSY,LH
€ 0.00
1-5
1320126D60
ref: 1-5
E22
CARBURETOR ASSY,LH
€ 0.00
1-6
1320126D70
ref: 1-6
E39
CARBURETOR ASSY,LH
€ 0.00
2-1
1320226D00
ref: 2-1
CARBURETOR ASSY,ML
€ 461.00
2-2
1320226D50
ref: 2-2
E15,E24
CARBURETOR ASSY,ML
€ 461.00
2-3
1320226D80
ref: 2-3
E17
CARBURETOR ASSY,ML
€ 0.00
2-4
1320226D30
ref: 2-4
E18
CARBURETOR ASSY,ML
€ 0.00
2-5
1320226D60
ref: 2-5
E22
CARBURETOR ASSY,ML
€ 461.00
2-6
1320226D70
ref: 2-6
E39
CARBURETOR ASSY,ML
€ 0.00
3-1
1320326D00
ref: 3-1
CARBURETOR ASSY,MR
€ 461.00
3-2
1320326D50
ref: 3-2
E15,E24
CARBURETOR ASSY,MR
€ 461.00
3-3
1320326D80
ref: 3-3
E17
CARBURETOR ASSY,MR
€ 0.00
3-4
1320326D30
ref: 3-4
E18
CARBURETOR ASSY,MR
€ 0.00
3-5
1320326D60
ref: 3-5
E22
CARBURETOR ASSY,MR
€ 461.00
3-6
1320326D70
ref: 3-6
E39
CARBURETOR ASSY,MR
€ 0.00
4-1
1320426D00
ref: 4-1
CARBURETOR ASSY,RH
€ 461.00
4-2
1320426D50
ref: 4-2
E15,E24
CARBURETOR ASSY,RH
€ 461.00
4-3
1320426D80
ref: 4-3
E17
CARBURETOR ASSY,RH
€ 0.00
4-4
1320426D30
ref: 4-4
E18
CARBURETOR ASSY,RH
€ 0.00
4-5
1320426D60
ref: 4-5
E22
CARBURETOR ASSY,RH
€ 461.00
4-6
1320426D70
ref: 4-6
E39
CARBURETOR ASSY,RH
€ 0.00
5
1350717C00
ref: 5
DIAPHRAGM
€ 24.50
6
1350117C20
ref: 6
VALVE,PISTON
1350117C20
€ 64.00
7
1339401D00
ref: 7
E RING
1339401D00
€ 4.50
8
1338242A00
ref: 8
RING
1338242A00
€ 3.50
9
1338747010
ref: 9
RING
1338747010
€ 7.50
10
1341742A00
ref: 10
SPRING
1341742A00
€ 6.00
11-1
1338340C40
ref: 11-1
NEEDLE,JET(5D44)
1338340C40
€ 15.50
11-2
1338326D30
ref: 11-2
E18
NEEDLE,JET
€ 13.00
12
0831000083
ref: 12
ML,MR
NUT
0831000083
€ 1.50
13
0832101083
ref: 13
ML,MR
LOCK WASHER
0832101083
€ 2.50
14
1357326D10
ref: 14
ML
SPRING
€ 6.00
15
1355017C00
ref: 15
LH
SHAFT ASSEMBLY
€ 0.00
16
1355026D00
ref: 16
ML
SHAFT ASSEMBLY
€ 30.00
17
1355317C00
ref: 17
ML
LEVER
€ 7.00
18
1355344B00
ref: 18
MR
LEVER,THROTTLE
€ 7.00
19
1357326D00
ref: 19
MR
SPRING
€ 6.00
20
1355017C30
ref: 20
RH
SHAFT ASSEMBLY
€ 0.00
21
1355644B00
ref: 21
LH,RH:1,ML:MR:2
SEAL
1355644B00
€ 3.50
22
1355747070
ref: 22
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
23
1360442A00
ref: 23
SCREW
€ 3.50
24
1355117C00
ref: 24
VALVE,THROTTLE(125)
1355117C00
€ 37.50
25
1325844B00
ref: 25
GASKET,FLOAT CHAMBER (NAS)
1325844B00
€ 8.50
26-1
0949235010
ref: 26-1
JET,PILOT(37.5)
0949235010
€ 10.50
26-2
0949230010
ref: 26-2
E18
JET,PILOT(30)
0949230010
€ 13.00
27-1
0949400731
ref: 27-1
JET,NEEDLE,O-8
€ 30.00
27-2
0949400733
ref: 27-2
E18
JET,NEEDLE (0-7)
€ 0.00
28
1350917C00
ref: 28
O RING
1350917C00
€ 4.50
29-1
0949124016
ref: 29-1
JET,MAIN(120)
0949124016
€ 11.50
29-2
0949123011
ref: 29-2
E18
JET,MAIN(115)
0949123011
€ 10.50
30
1324713A00
ref: 30
13247-38B00
SCREW,DRAIN
1324713A00
€ 5.50
31
1324001D00
ref: 31
FLOAT ASSY
1324001D00
€ 48.50
32
1337044B00
ref: 32
VALVE ASSEMBLY,NEEDLE
1337044B00
€ 46.50
33
1337444080
ref: 33
O-RING,NEEDLE VALVE
1337444080
€ 6.00
34
1337446710
ref: 34
O RING
1337446710
€ 4.50
35
1360234390
ref: 35
SCREW
1360234390
€ 2.50
36
0211205127
ref: 36
13602-05128
SCREW
0211205127
€ 2.50
37-1
1350817C00
ref: 37-1
CAP
1350817C00
€ 4.50
37-2
1350817C00
ref: 37-2
E18,E39 LH,MR,RH
CAP
1350817C00
€ 4.50
38-1
1367133600
ref: 38-1
CLIP
1367133600
€ 4.00
38-2
1367133600
ref: 38-2
E18,E39 LH,MR,RH
CLIP
1367133600
€ 4.00
39
1355026D10
ref: 39
MR
SHAFT ASSEMBLY
€ 30.00
40-1
1350245B00
ref: 40-1
COVER,DIAPHRAGM
1350245B00
€ 36.00
40-2
1350226D80
ref: 40-2
E17
COVER,DIAPHRAGM
€ 30.00
40-3
1350226D30
ref: 40-3
E18
COVER, DIAPHRAGM
€ 31.50
41
1341817C00
ref: 41
CAP,STARTER
1341817C00
€ 5.00
42
1326728A00
ref: 42
MR
SCREW
€ 22.50
43
1326843410
ref: 43
MR
SPRING
€ 6.50
44
1342738300
ref: 44
MR
WASHER
1342738300
€ 1.50
45
1341817C10
ref: 45
HOLDER,GUIDE
1341817C10
€ 14.00
46
1341726D00
ref: 46
SPRING
1341726D00
€ 5.50
47
1343247090
ref: 47
WASHER
1343247090
€ 2.50
48
1341105320
ref: 48
PLUNGER ASSY
1341105320
€ 18.00
49-1
0949328007
ref: 49-1
JET,AIR
€ 15.50
49-2
0949325003
ref: 49-2
E18
JET,AIR(1.25)
0949325003
€ 11.00
49-3
0949329002
ref: 49-3
E39
JET,AIR
0949329002
€ 9.50
50-1
1327947070
ref: 50-1
EXCEPT E18
SCREW,PILOT
1327947070
€ 11.50
50-2
1327947070
ref: 50-2
E17
SCREW,PILOT
1327947070
€ 11.50
50-3
1327947070
ref: 50-3
E39
SCREW,PILOT
1327947070
€ 11.50
51
1326847070
ref: 51
EXCEPT E18
SPRING
1326847070
€ 5.00
52
1329129900
ref: 52
EXCEPT E18
WASHER
1329129900
€ 2.00
53
1329529900
ref: 53
EXCEPT E18
O RING,PILOT AIR SCREW
1329529900
€ 4.00
