FRONT BRAKE HOSE

GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

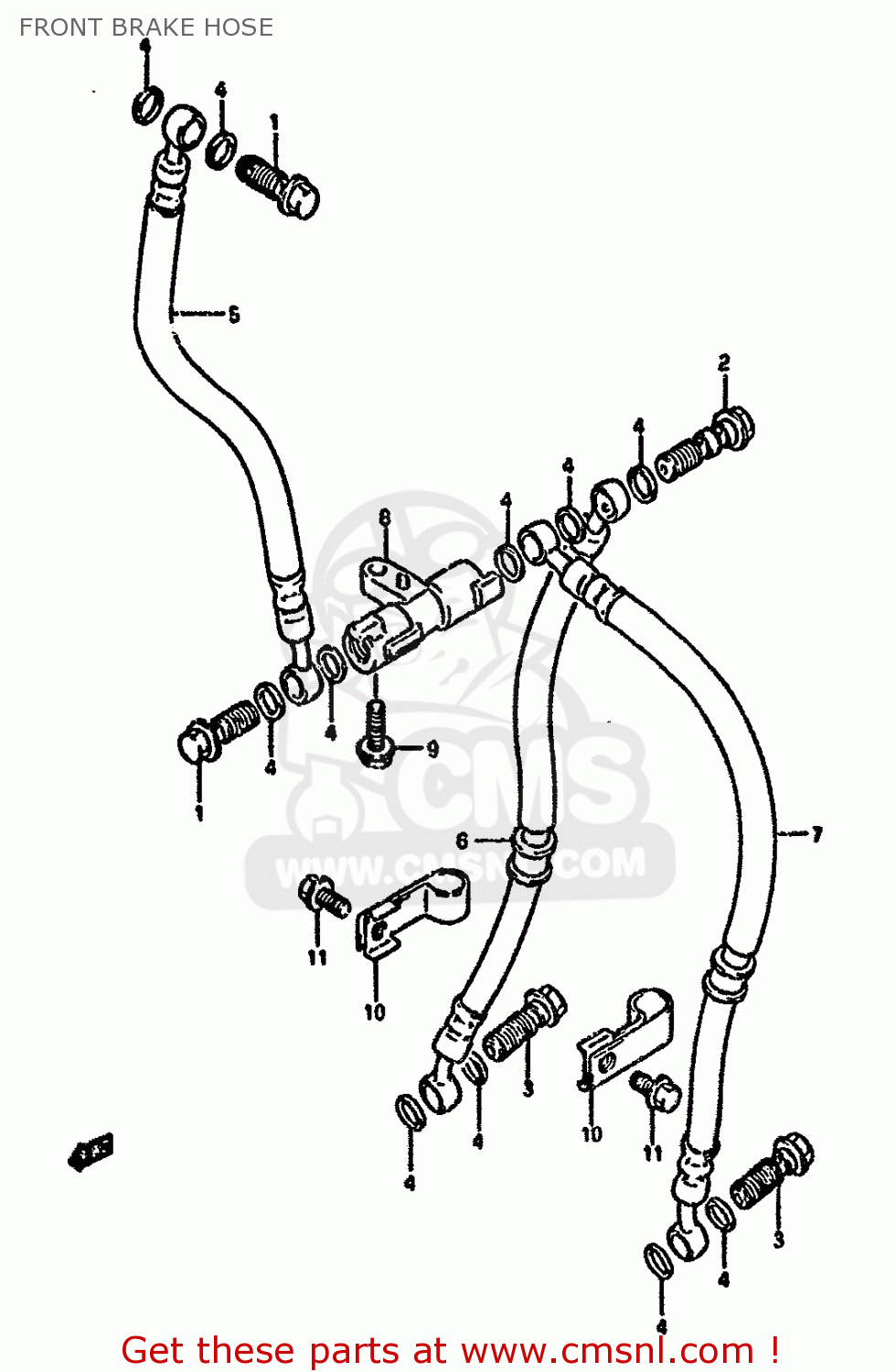

Front brake hose diagram GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

prices are in EUR

ref

part #

description

quantity

1-1

0936010017
ref: 1-1
MODEL M/N/P

BOLT UNION

€ 6.50

1-2

0936010039
ref: 1-2
MODEL R

BOLT UNION

€ 6.50

0936010018
ref: 2

BOLT UNION

€ 7.00

3-1

0936010033
ref: 3-1
MODEL M/N/P

BOLT 10X1.25X24

€ 5.00

3-2

0936010040
ref: 3-2
MODEL R

BOLT UNION

€ 5.00

0916110009
ref: 4

WASHER(10X15X1.5)

€ 2.00

5948026D00
ref: 5

HOSE COMP,FRONT BRAKE

€ 43.50

5924026D10
ref: 6

HOSE,FRONT BRAKE,NO.2 RH

€ 47.50

5944026D10
ref: 7

HOSE,FRONT BRAKE,NO.2 LH

€ 48.50

5949112C10
ref: 8

JOINT,BRAKE HOSE

€ 24.00

9-1

0151706164
ref: 9-1
MODEL M/N/P

BOLT

€ 2.50

9-2

0155006163
ref: 9-2
MODEL R

BOLT

€ 2.50

5926801D10
ref: 10

CLAMP,FRONT BRAKE NO.2

€ 6.00

11-1

0151706125
ref: 11-1
MODEL M/N/P

BOLT 6X12

€ 2.50

11-2

0155006123
ref: 11-2
MODEL R

BOLT

€ 2.50
