STAND-REAR BRAKE

GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

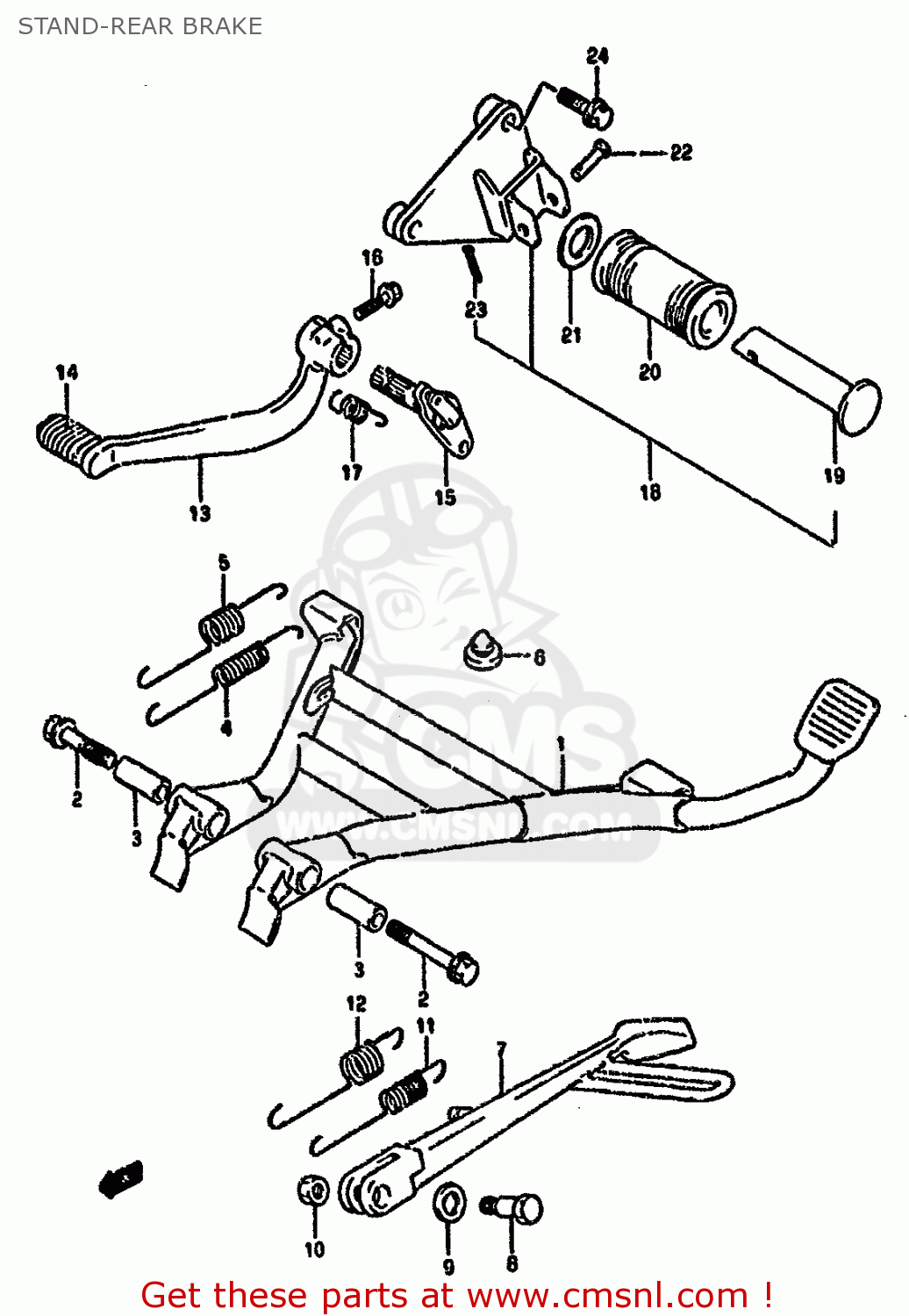

Stand-rear brake diagram GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

STAND-REAR BRAKE GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
STAND-REAR BRAKE GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
STAND-REAR BRAKE GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
prices are in EUR
ref
part #
description
quantity
1
4210026D11
ref: 1
42100-26D10
STAND,PROP.
€ 174.00
2
0910310185
ref: 2
BOLT(10X60)
0910310185
€ 3.00
3
0918010040
ref: 3
SPACER(10X16X38.8)
0918010040
€ 3.00
4
0944314059
ref: 4
SPRING
0944314059
€ 9.50
5
0944322013
ref: 5
SPRING OUTER
0944322013
€ 7.00
6-1
0932110011
ref: 6-1
MODEL M/N/P
CUSHION
0932110011
€ 3.00
6-2
0932110001
ref: 6-2
MODEL R
CUSHION
0932110001
€ 2.50
7
4231026D00
ref: 7
STAND,PROP
€ 107.50
8
0911110036
ref: 8
BOLT(10X38)
0911110036
€ 5.50
9
0822112224
ref: 9
SHIM
0822112224
€ 2.00
10-1
0831022105
ref: 10-1
MODEL M/N/P
NUT
0831022105
€ 2.00
10-2
0914010043
ref: 10-2
MODEL R
NUT
0914010043
€ 2.00
11
0944315046
ref: 11
SPRING
0944315046
€ 7.50
12
0944322017
ref: 12
SPRING
0944322017
€ 7.00
13
4311026D00
ref: 13
PEDAL COMP,BRAKE
€ 102.00
14
2565249300
ref: 14
RUBBER,PEDAL
2565249300
€ 5.50
15
4312026D01
ref: 15
43120-26D00
ARM,BRAKE ROD
€ 36.50
16
0155006257
ref: 16
BOLT
0155006257
€ 2.50
17
0944315043
ref: 17
SPRING,BRAKE PEDAL
0944315043
€ 3.00
18
4390026820
ref: 18
OPT
GRIP SET,CENTER STAND
€ 15.50
19
4361044000
ref: 19
OPT
BAR,PILLION FOOTREST
4361044000
€ 14.50
20
4399545C00
ref: 20
OPT
RUBBER,STAND GRIOP (OPT)
4399545C00
€ 21.00
21
0916019006
ref: 21
OPT
WASHER (19.5X32X2)
0916019006
€ 2.00
22
0920006010
ref: 22
OPT
PIN
0920006010
€ 2.50
23
0411120158
ref: 23
OPT
PIN
0411120158
€ 1.50
24
0155008353
ref: 24
OPT
BOLT
0155008353
€ 3.50
