FRONT DAMPER

GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

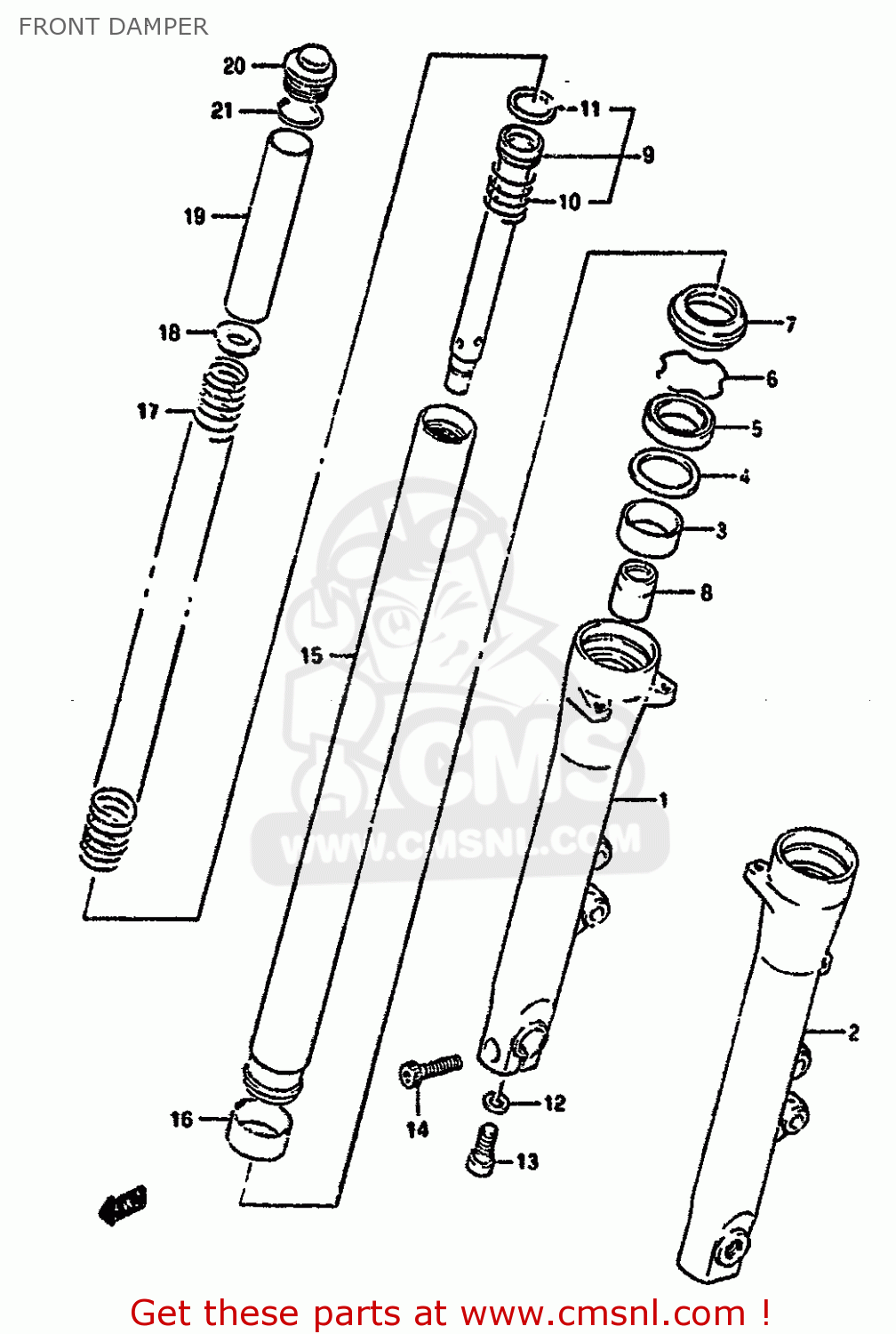

Front damper diagram GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

FRONT DAMPER GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
FRONT DAMPER GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
FRONT DAMPER GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
prices are in EUR
ref
part #
description
quantity
0
5110326D20
ref: 0
DAMPER ASSY,RH
€ 660.50
0
5110426D20
ref: 0
DAMPER ASSY,LH
€ 576.00
1
5113026D00
ref: 1
TUBE,OUTER,RIGHT
€ 425.00
2
5114026D00
ref: 2
TUBE,OUTER,L
€ 454.50
3
5116740C00
ref: 3
METAL,SLIDE
5116740C00
€ 13.50
4
5115814200
ref: 4
WASHER
5115814200
€ 4.00
5
5115340C00
ref: 5
OIL SEAL,FRONT FORK
5115340C00
€ 15.50
6
5115614200
ref: 6
RING,STOPPER
5115614200
€ 4.50
7
5117340C00
ref: 7
SEAL,DUST
5117340C00
€ 18.50
8
5119506C00
ref: 8
PIECE,OIL LOCK
5119506C00
€ 13.00
9
5114626D00
ref: 9
CYLINDER
5114626D00
€ 58.50
10
5117726D00
ref: 10
SPRING,REBOUND
€ 6.00
11
5119631D00
ref: 11
RING,PISTON
5119631D00
€ 6.00
12
5114814200
ref: 12
GASKET (NAS)
5114814200
€ 2.00
13
5114714200
ref: 13
BOLT(14X25)
5114714200
€ 5.50
14
0713008407
ref: 14
BOLT
0713008407
€ 3.50
15
5111026D00
ref: 15
TUBE,INNER
€ 279.50
16
5112140C00
ref: 16
PISTON
5112140C00
€ 11.50
17
5117126D00
ref: 17
SPRING,MAIN
€ 52.50
18
5117226D00
ref: 18
GUIDE,SPRING
5117226D00
€ 7.00
19
5117626D10
ref: 19
SPACER
€ 8.50
20
5135131D00
ref: 20
CAP,FORK
5135131D00
€ 32.50
21
5111714200
ref: 21
O RING
5111714200
€ 2.00
