GEAR SHIFTING

GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

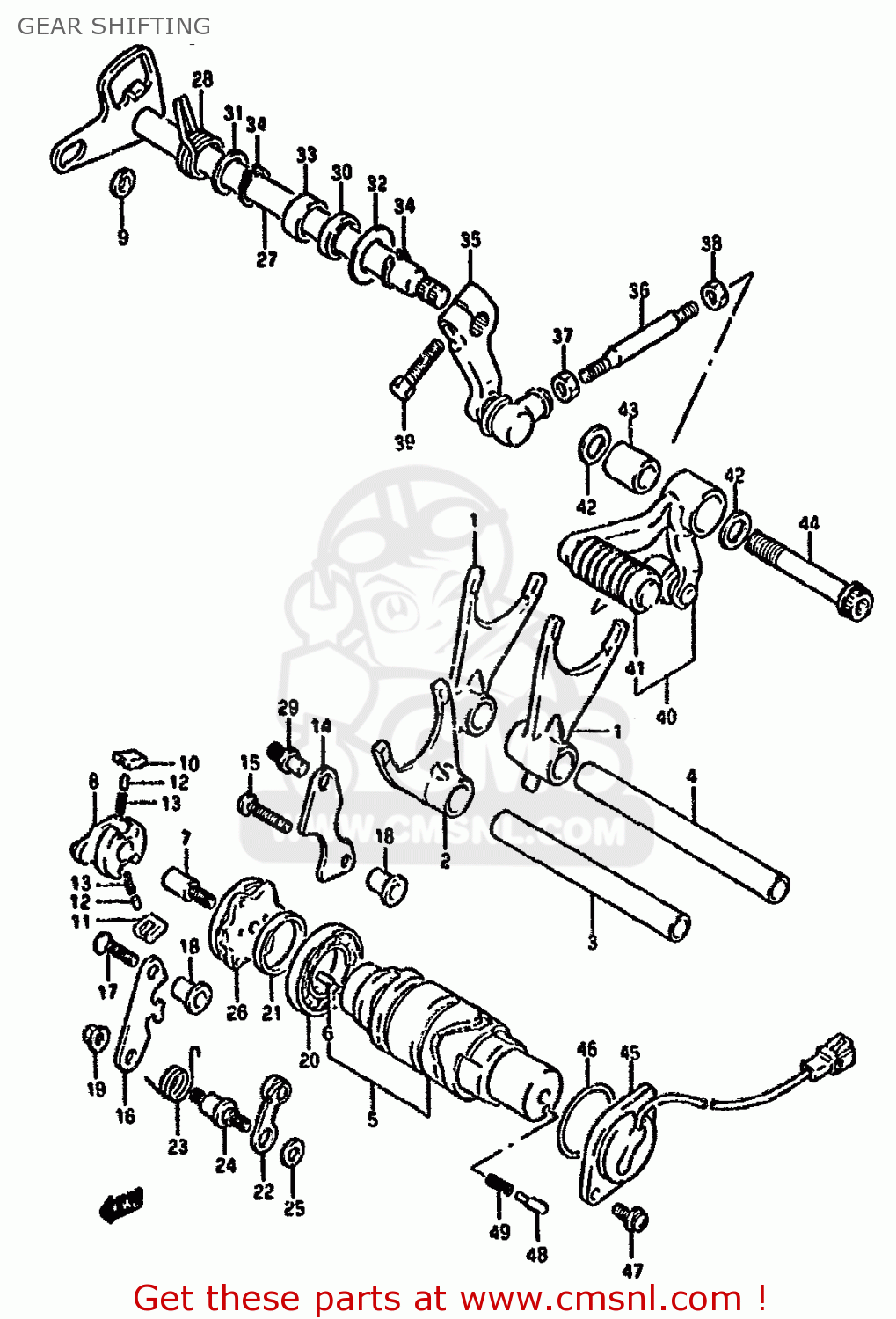

Gear shifting diagram GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

GEAR SHIFTING GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
GEAR SHIFTING GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
GEAR SHIFTING GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
prices are in EUR
ref
part #
description
quantity
1
2521126D00
ref: 1
FORK,GEAR SHIFT NO.1
2521126D00
€ 66.50
2
2523126D01
ref: 2
FORK,GEAR SHIFT NO.3
€ 44.00
3
2541126D01
ref: 3
SHAFT,GEAR SHIFT FORK
2541126D01
€ 16.00
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
2541127A00
€ 23.50
5
2531026D00
ref: 5
CAM COMP,GEAR SHIFT
€ 130.50
6
0422104089
ref: 6
PIN
0422104089
€ 1.50
7
2531212C00
ref: 7
PIN,SHIFT CAM DRIVEN GEAR
2531212C00
€ 6.00
8
2532233C00
ref: 8
SHIFTER,GEAR SHIFT CAM
€ 49.50
9
0918007014
ref: 9
SPACER(7X10X5)
0918007014
€ 4.00
10
2532334201
ref: 10
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
11
2532434201
ref: 11
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
12
0926105003
ref: 12
PIN(5X8)
0926105003
€ 1.50
13
0944004003
ref: 13
SPRING
0944004003
€ 1.50
14
2533126D00
ref: 14
LIFTER,GEAR SHIFT PAWL
2533126D00
€ 6.00
15
0211206303
ref: 15
SCREW 6X30
0211206303
€ 2.50
16
2534126D00
ref: 16
GUIDE,GEAR SHIFT CAM
€ 5.50
17
0212206303
ref: 17
SCREW
0212206303
€ 2.00
18
0918006202
ref: 18
SPACER(6.1X10X16)
0918006202
€ 4.00
19-1
0915906017
ref: 19-1
MODEL M/N/P
NUT
0915906017
€ 2.50
19-2
0831610063
ref: 19-2
MODEL R
NUT
0831610063
€ 2.50
20
0926225006
ref: 20
09262-25002
BEARING(25X47X8)
0926225006
€ 24.00
21
0916025059
ref: 21
WASHER(25X32X3)
0916025059
€ 5.00
22
2535026D01
ref: 22
25350-26D00
STOPPER,GEAR SHIFT CAM
2535026D01
€ 8.50
23
2535526D10
ref: 23
25355-26D01
SPRING,STOPPER ARM
€ 11.00
24
2535612C00
ref: 24
SUPPORT,CAM STOPPER ARM
2535612C00
€ 9.50
25
0821106141
ref: 25
WASHER
0821106141
€ 2.50
26
2538012B00
ref: 26
PLATE,GEAR SHIFT CAM
2538012B00
€ 10.00
27
2551026D00
ref: 27
SHAFT COMP,GEAR SHIFTING
€ 54.00
28
0944420001
ref: 28
SPRING
0944420001
€ 5.00
29
2567101000
ref: 29
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
30
0928314006
ref: 30
09283-14005
SEAL,OIL(14X22X6)
0928314006
€ 6.50
31
0821114221
ref: 31
WASHER,THRUST
€ 3.50
32
0916014034
ref: 32
WASHER
0916014034
€ 3.00
33
0926314027
ref: 33
BEARING(14X20X12)
0926314027
€ 11.00
34
0833131146
ref: 34
CIRCLIP
0833131146
€ 2.00
35
2552026D00
ref: 35
ARM,GEAR SHIFT LINK
2552026D00
€ 47.50
36
2552549010
ref: 36
ROD,GEAR SHIFT LINK
2552549010
€ 6.50
37
0914006011
ref: 37
NUT
0914006011
€ 1.50
38
0831000067
ref: 38
NUT
0831000067
€ 2.50
39
0150006207
ref: 39
BOLT
0150006207
€ 2.00
40-1
2560026D01
ref: 40-1
MODEL M/N/P
LEVER ASSEMBLY,GEAR SHIFTING
€ 39.50
40-2
2560026D02
ref: 40-2
MODEL R
LEVER ASSEMBLY,GEAR SHIFTING
€ 39.50
41
2565220C00
ref: 41
RUBBER,GEAR SHIFT PEDAL
2565220C00
€ 8.00
42-1
0832201107
ref: 42-1
MODEL M/N/P
WASHER
0832201107
€ 2.50
42-2
0916010051
ref: 42-2
MODEL R
WASHER
0916010051
€ 2.00
43
0918010130
ref: 43
SPACER(10X18X22)
0918010130
€ 12.50
44
0712010708
ref: 44
BOLT
€ 4.00
45
3772048B00
ref: 45
TERMINAL BASE ASSY,NEUTRAL
3772048B00
€ 57.00
46
0928036001
ref: 46
O RING(D:2.4,ID:36.5)
0928036001
€ 4.50
47-1
0913805003
ref: 47-1
MODEL M/N
SCREW
€ 1.50
47-2
0211275163
ref: 47-2
MODEL P/R
SCREW
0211275163
€ 2.50
48
0920905011
ref: 48
PIN(5X15.5)
0920905011
€ 2.00
49
0944004010
ref: 49
SPRING
0944004010
€ 1.50
