CRANKCASE COVER

GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

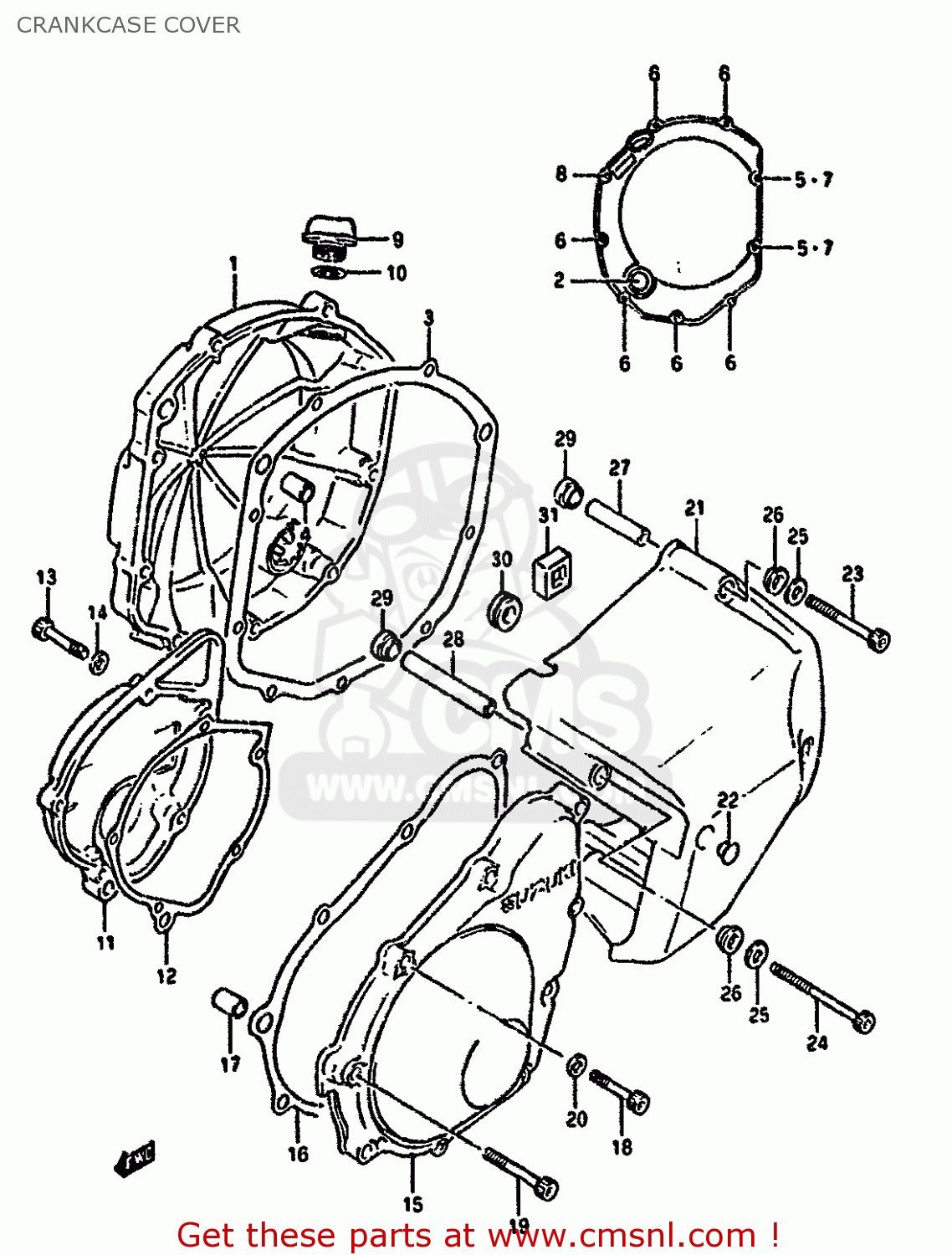

Crankcase cover diagram GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

CRANKCASE COVER GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
CRANKCASE COVER GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
CRANKCASE COVER GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1134026D00
ref: 1-1
MODEL M/N/P
COVER COMP,CLUTCH
€ 150.50
1-2
1134026D10
ref: 1-2
MODEL R
COVER,CLUTCH
€ 207.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148227A20
ref: 3
11482-27A10
GASKET,CL COVER (NAS)
1148227A20
€ 18.00
4
0421109189
ref: 4
PIN
0421109189
€ 2.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
6-1
0713006255
ref: 6-1
MODEL M/N/P
BOLT
0713006255
€ 3.00
6-2
0713006257
ref: 6-2
MODEL R
BOLT
0713006257
€ 2.50
7-1
0711006305
ref: 7-1
MODEL M/N/P
BOLT
0711006305
€ 3.00
7-2
0713006307
ref: 7-2
MODEL R
BOLT
0713006307
€ 3.00
8-1
0711006355
ref: 8-1
MODEL M/N/P
BOLT
€ 3.50
8-2
0713006357
ref: 8-2
MODEL R
BOLT
€ 3.50
9-1
0925920018
ref: 9-1
MODEL M/N/P
PLUG (20X10)
€ 6.50
9-2
0925920015
ref: 9-2
MODEL R
PLUG
0925920015
€ 6.50
10
0928017003
ref: 10
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
11-1
1138126D01
ref: 11-1
MODEL M/N/P
COVER,SIGNAL GENERATOR
1138126D01
€ 72.00
11-2
1138126D10
ref: 11-2
MODEL R
COVER,SIGNAL GENERATOR
€ 62.00
12
1149127A20
ref: 12
11491-27A10
GASKET,SIGNAL GENERATOR COVER (NAS)
1149127A20
€ 8.00
13-1
0910606059
ref: 13-1
MODEL M/N/P
BOLT
0910606059
€ 3.00
13-2
0910606079
ref: 13-2
MODEL R
BOLT
€ 3.00
14
0916806024
ref: 14
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
15-1
1135126D00
ref: 15-1
MODEL M/N/P
COVER,STARTER GEAR
1135126D00
€ 149.00
15-2
1135126D10
ref: 15-2
MODEL R
COVER,STARTER GEAR
€ 149.00
16
1148326D00
ref: 16
GASKET,STARTER GEAR COVER (NAS)
1148326D00
€ 10.50
17
0920611005
ref: 17
PIN (11X20)(SUS)
€ 6.50
18-1
0713006255
ref: 18-1
MODEL M/N/P
BOLT
0713006255
€ 3.00
18-2
0713006257
ref: 18-2
MODEL R
BOLT
0713006257
€ 2.50
19-1
0711006405
ref: 19-1
MODEL M/N/P
BOLT
0711006405
€ 3.50
19-2
0713006407
ref: 19-2
MODEL R
BOLT
0713006407
€ 2.50
20
0916806024
ref: 20
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
21-1
1136126D00
ref: 21-1
MODEL M/N/P
COVER,SPROCKET
€ 193.00
21-2
1136126D10
ref: 21-2
MODEL R
COVER,SECONDARY GEAR CASE
€ 193.00
22
0925008012
ref: 22
CAP(OD:12)
0925008012
€ 2.00
23-1
0910606035
ref: 23-1
MODEL M/N/P
BOLT
€ 3.00
23-2
0713006607
ref: 23-2
MODEL R 09106-06080
BOLT
€ 0.00
24-1
0711006705
ref: 24-1
MODEL M/N/P
BOLT
€ 4.00
24-2
0713006707
ref: 24-2
MODEL R
BOLT
€ 0.00
25
0916006092
ref: 25
WASHER
€ 2.50
26
0916109006
ref: 26
WASHER(8.7X15X2.1)
0916109006
€ 2.50
27
0918006183
ref: 27
SPACER (L=45.9)
€ 7.00
28
0918006233
ref: 28
SPACER(6.1X9X55.9)
0918006233
€ 8.00
29
0916109005
ref: 29
WASHER(8.7X16X5)
0916109005
€ 2.50
30
0932008021
ref: 30
CUSHION
0932008021
€ 4.00
31
1136938A00
ref: 31
DAMPER,SECONDARY COVER
€ 7.50
