CYLINDER HEAD

GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

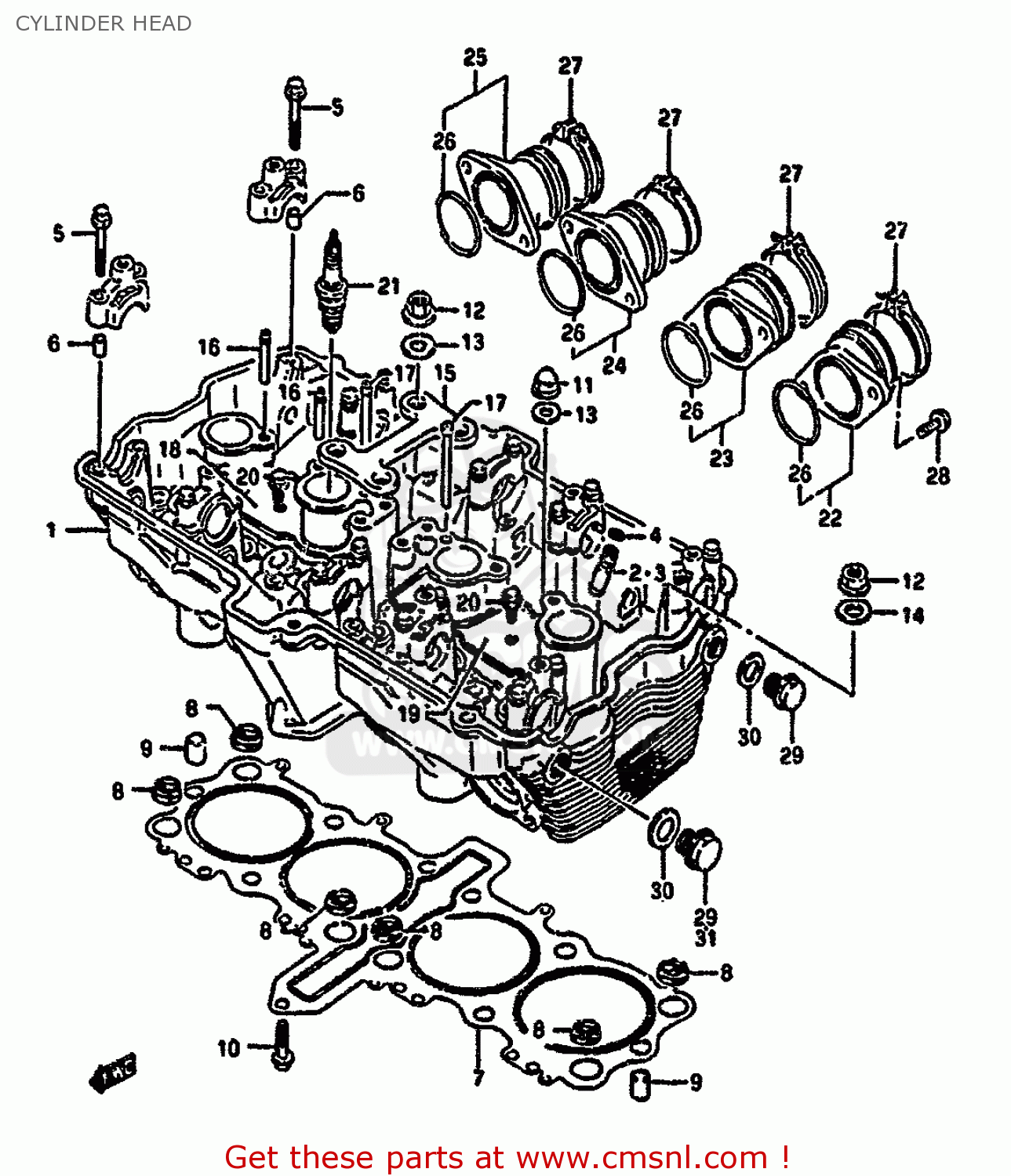

Cylinder head diagram GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

CYLINDER HEAD GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
CYLINDER HEAD GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
CYLINDER HEAD GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1110026D00
ref: 1-1
MODEL M/N/P
HEAD ASSEMBLY,CYLINDER
€ 1,530.00
1-2
1110026D20
ref: 1-2
MODEL R
HEAD ASSY,CYLINDER
€ 0.00
1-3
1110026D10
ref: 1-3
MODEL M/N/P E18 MODE
HEAD ASSEMBLY,CYLINDER
€ 997.50
1-4
1110026D30
ref: 1-4
MODEL R E39
HEAD ASSY,CYLINDER
€ 0.00
2
1111606B70
ref: 2
GUIDE,VALVE
1111606B70
€ 43.00
3
1111606B70
ref: 3
GUIDE,VALVE
1111606B70
€ 43.00
4
0938110004
ref: 4
RING,SNAP
0938110004
€ 1.50
5
0910306026
ref: 5
BOLT(6X39)
0910306026
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
0920608001
€ 2.00
7
1114148B21
ref: 7
11141-48B20
GASKET,CYLINDER HEAD (NAS)
1114148B21
€ 91.00
8
1114348B01
ref: 8
O-RING,HEAD GASKET
1114348B01
€ 6.00
9
0920911007
ref: 9
PIN
0920911007
€ 16.00
10-1
0151706305
ref: 10-1
MODEL M/N/P
BOLT 6X30
€ 2.50
10-2
0155006303
ref: 10-2
MODEL R
BOLT
0155006303
€ 2.50
11
0915910069
ref: 11
NUT
0915910069
€ 5.00
12
0831610103
ref: 12
NUT
0831610103
€ 2.00
13
0916810031
ref: 13
GASKET(10.2X20X2).3 (NAS)
0916810031
€ 2.00
14
0916010060
ref: 14
WASHER (10.5X22X2.3)
0916010060
€ 2.50
15
1113840C10
ref: 15
PLATE,HEAD REINFORCEMENT
1113840C10
€ 27.00
16
1113127A00
ref: 16
PIPE,OIL NO.1
1113127A00
€ 6.00
17
1113327A00
ref: 17
PIPE,OIL NO.3
1113327A00
€ 7.00
18
1113527A02
ref: 18
PLATE,OIL PIPE,R
1113527A02
€ 4.00
19
1113627A02
ref: 19
PLATE,OIL PIPE,L
1113627A02
€ 4.00
20-1
0155006127
ref: 20-1
MODEL M/N/P
BOLT
0155006127
€ 2.50
20-2
0155006123
ref: 20-2
MODEL R
BOLT
0155006123
€ 2.50
21-1
0948200389
ref: 21-1
PLUG,SPARK(JR9B)
0948200389
€ 8.00
21-2
0948200491
ref: 21-2
OPT
PLUG,SPARK(JR8B)
0948200491
€ 8.00
21-3
0948200391
ref: 21-3
OPT
PLUG,SPARK(JR10B)
0948200391
€ 9.00
22
1310140C00
ref: 22
PIPE,INTAKE NO.1
1310140C00
€ 43.50
23
1310240C00
ref: 23
PIPE,INTAKE NO.2
1310240C00
€ 43.50
24
1310340C00
ref: 24
PIPE,INTAKE NO.3
1310340C00
€ 43.50
25
1310440C00
ref: 25
PIPE,INTAKE NO.4
1310440C00
€ 38.00
26
0928040010
ref: 26
O RING(D:2.4,ID:39.7)
0928040010
€ 3.50
27
0940252208
ref: 27
CLAMP
0940252208
€ 5.50
28-1
0215206165
ref: 28-1
MODEL M/N/P
SCREW
€ 2.00
28-2
0211216163
ref: 28-2
MODEL R
SCREW
€ 2.00
29
0924714034
ref: 29
PLUG
0924714034
€ 3.50
30
0916814004
ref: 30
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
31
0924714040
ref: 31
MODEL R
PLUG
€ 0.00
