TRANSMISSION

GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

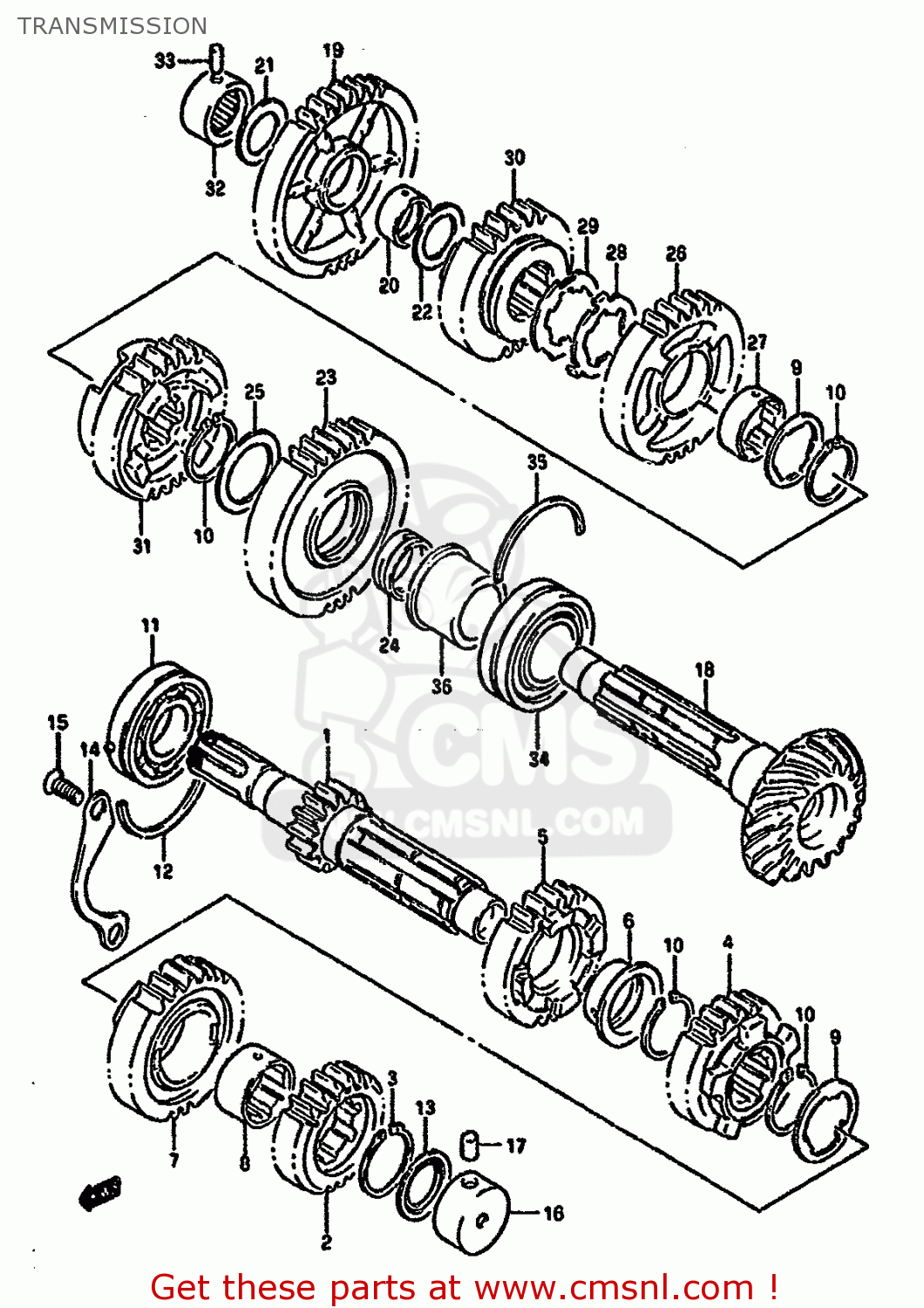

Transmission diagram GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

TRANSMISSION GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
TRANSMISSION GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
TRANSMISSION GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
prices are in EUR
ref
part #
description
quantity
1-1
2412126D01
ref: 1-1
MODEL M/N/P
SHAFT,COUNTER
€ 186.50
1-2
2412126D10
ref: 1-2
MODEL R
SHAFT,COUNTER
€ 186.50
2
2422126D00
ref: 2
GEAR,2ND DRIVE
2422126D00
€ 86.50
3
0938028008
ref: 3
CIRCLIP
0938028008
€ 5.00
4
2423126D02
ref: 4
GEAR,THIRD DRIVE
2423126D02
€ 164.50
5
2424126D00
ref: 5
GEAR,4TH DRIVE
€ 117.50
6
0930128001
ref: 6
BUSH(28X32X2)
0930128001
€ 19.50
7
2425126D01
ref: 7
GEAR,FIFTH DRIVE
€ 115.50
8
2433224A00
ref: 8
BUSH
2433224A00
€ 18.00
9
0916728001
ref: 9
WASHER,LOCK
0916728001
€ 3.00
10
0833131286
ref: 10
CIRCLIP
0833131286
€ 2.50
11
0926225051
ref: 11
BEARING(25X62X17)
0926225051
€ 59.50
12
0939062006
ref: 12
C-RING
0939062006
€ 5.00
13
0928520006
ref: 13
SEAL,OIL(20X31.2X2.7)
0928520006
€ 7.00
14
2474127A00
ref: 14
RETAINER,CNTR SHAFT BEARING
2474127A00
€ 7.00
15-1
0212206167
ref: 15-1
MODEL M/N/P
SCREW
0212206167
€ 2.00
15-2
0212206163
ref: 15-2
MODEL R
SCREW ,6X16
0212206163
€ 2.00
16
0926320049
ref: 16
BEARING(20X34X17.5)
0926320049
€ 58.00
17
0422107129
ref: 17
PIN
0422107129
€ 1.50
18
2413126D04
ref: 18
24131-26D03
SHAFT,DRIVE
€ 205.50
19
2431126D00
ref: 19
GEAR,1ST DRIVEN
2431126D00
€ 127.50
20
0930022005
ref: 20
BUSHING
€ 19.50
21
0821120341
ref: 21
WASHER
0821120341
€ 2.00
22
0821122341
ref: 22
WASHER
0821122341
€ 3.00
23
2432126D01
ref: 23
GEAR,2ND DRIVEN
2432126D01
€ 174.50
24
0930028002
ref: 24
BUSH(28X32X11)
0930028002
€ 15.50
25
0821128381
ref: 25
WASHER, THRUST
0821128381
€ 3.50
26
2433126D00
ref: 26
GEAR,3RD DRIVEN
€ 117.00
27
2433249000
ref: 27
BUSH,3RD DRIVEN GEAR
2433249000
€ 13.50
28
0916928002
ref: 28
WASHER,LOCK
€ 6.00
29
0916728002
ref: 29
WASHER,LOCK
0916728002
€ 3.00
30
2434126D00
ref: 30
GEAR,4TH DRIVEN
2434126D00
€ 130.50
31
2435126D01
ref: 31
GEAR,5TH DRIVEN
2435126D01
€ 134.50
32
0926320040
ref: 32
BEARING(20X34X20)
0926320040
€ 42.50
33
0422107209
ref: 33
PIN
0422107209
€ 1.50
34
0926740002
ref: 34
BEARING(40X80X30.2)
0926740002
€ 141.50
35
0939080004
ref: 35
C RING
0939080004
€ 7.00
36
2413226D00
ref: 36
SPACER,DRIVE SHAFT BEARING
€ 36.50
