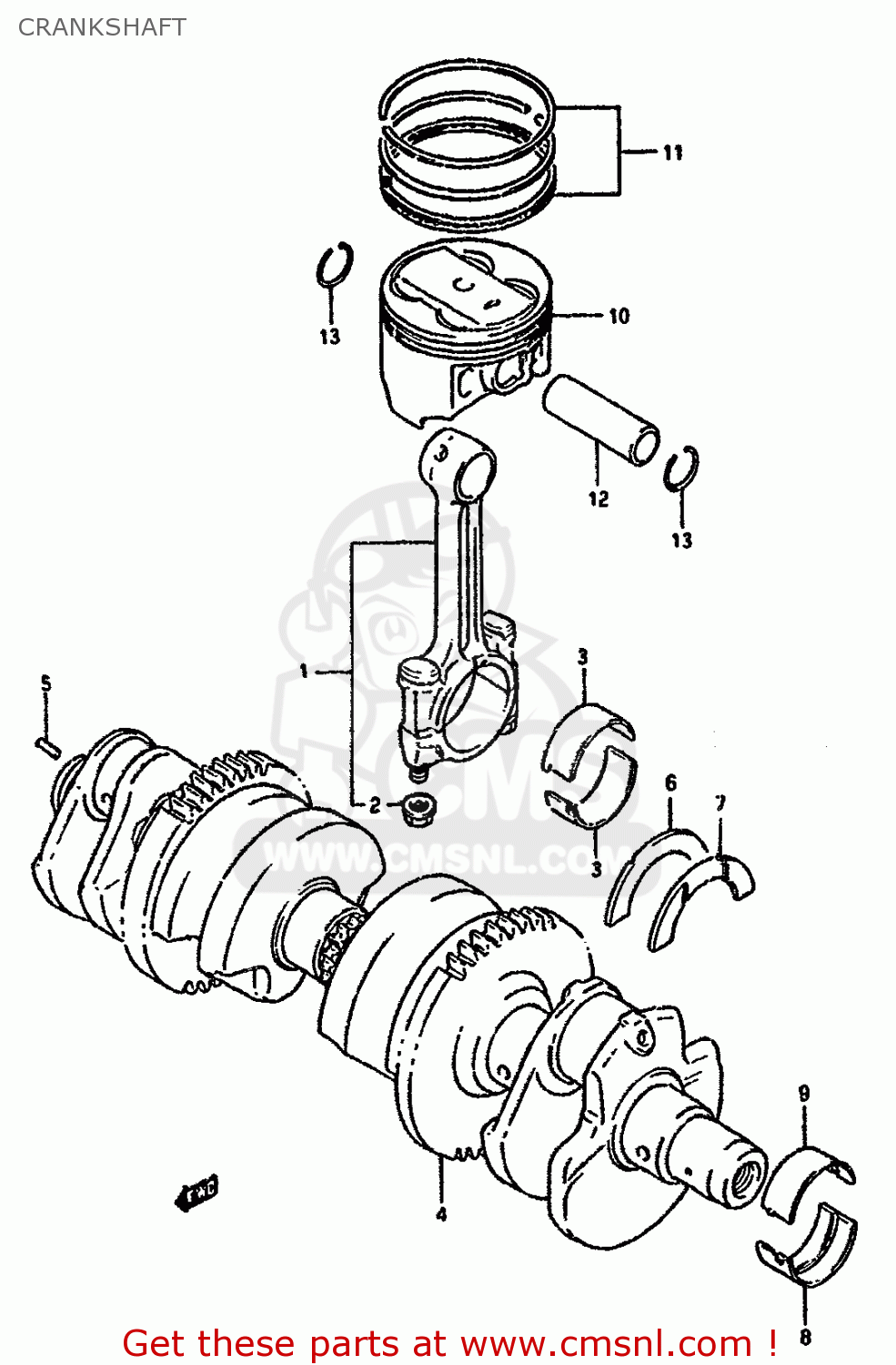

CRANKSHAFT

ref

part #

description

quantity

1

1216040C02
ref: 1

ROD ASSEMBLY,CONNECTING

€ 167.00

2

0915909001
ref: 2

NUT

€ 4.50

3-1

1216446E010A0
ref: 3-1
12164-48B00-0A0

BEARING,CRANK PIN

€ 17.50

3-2

1216446E010B0
ref: 3-2
12164-48B00-0B0

BEARING,CRANK PIN

€ 16.50

3-3

1216446E010C0
ref: 3-3
12164-48B00-0C0

BEARING,CRANK PIN

€ 17.50

3-4

1216446E010D0
ref: 3-4
12164-48B00-0D0

BEARING,CRANK PIN

€ 16.50

4-1

1200026810
ref: 4-1
MODEL M/N/P

CRANKSHAFT SET

€ 1,579.50

4-2

1200026820
ref: 4-2
MODEL R

CRANKSHAFT SET

€ 0.00

5

0422104089
ref: 5

PIN

€ 1.50

6

1222848B000E0
ref: 6
RH

BEARING,CRANK THRUST(GREEN)

€ 8.00

7-1

1222848B000C0
ref: 7-1
LH

BEARING,CRANK THRUST(RED)

€ 7.50

7-2

1222848B000E0
ref: 7-2

BEARING,CRANK THRUST(GREEN)

€ 8.00

7-3

1222848B000H0
ref: 7-3

BEARING,CRANK THRUST(BLACK)

€ 7.50

8-1

1222906B000A0
ref: 8-1
LOWER

BEARING,CRANKSHAFT LWR

€ 12.00

8-2

1222906B000B0
ref: 8-2

BEARING,CRANKSHAFT LWR

€ 12.50

8-3

1222906B000C0
ref: 8-3

BEARING,CRANKSHAFT LWR

€ 12.00

8-4

1222906B000D0
ref: 8-4

BEARING,CRANKSHAFT LWR

€ 12.50

9-1

1222906B100A0
ref: 9-1
UPPER

BEARING,CRANKSHAFT UPR

€ 12.00

9-2

1222906B100B0
ref: 9-2

BEARING,CRANKSHAFT UPR

€ 12.50

9-3

1222906B100C0
ref: 9-3

BEARING,CRANKSHAFT UPR

€ 12.00

9-4

1222906B100D0
ref: 9-4

BEARING,CRANKSHAFT UPR

€ 11.50

10-1

1211148B040F0
ref: 10-1

PISTON

€ 91.50

10-2

1211148B04050
ref: 10-2
OPT

PISTON

€ 144.00

10-3

1211148B04100
ref: 10-3
OPT

PISTON

€ 123.50

11-1

1214048B20
ref: 11-1

RING SET,PISTON

€ 101.00

11-2

1214048B20050
ref: 11-2
OPT

RING SET,PISTON(OS:0.50)

€ 61.00

11-3

1214048B20100
ref: 11-3
OPT

RING SET,PISTON(OS:1.0)

€ 58.00

12

1215105A00
ref: 12

PIN,PISTON

€ 12.00

13

0938120004
ref: 13

CIRCLIP,PISTON PIN

€ 2.00
