Buy Suzuki GSX Parts Online


CLUTCH MASTER CYLINDER

GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

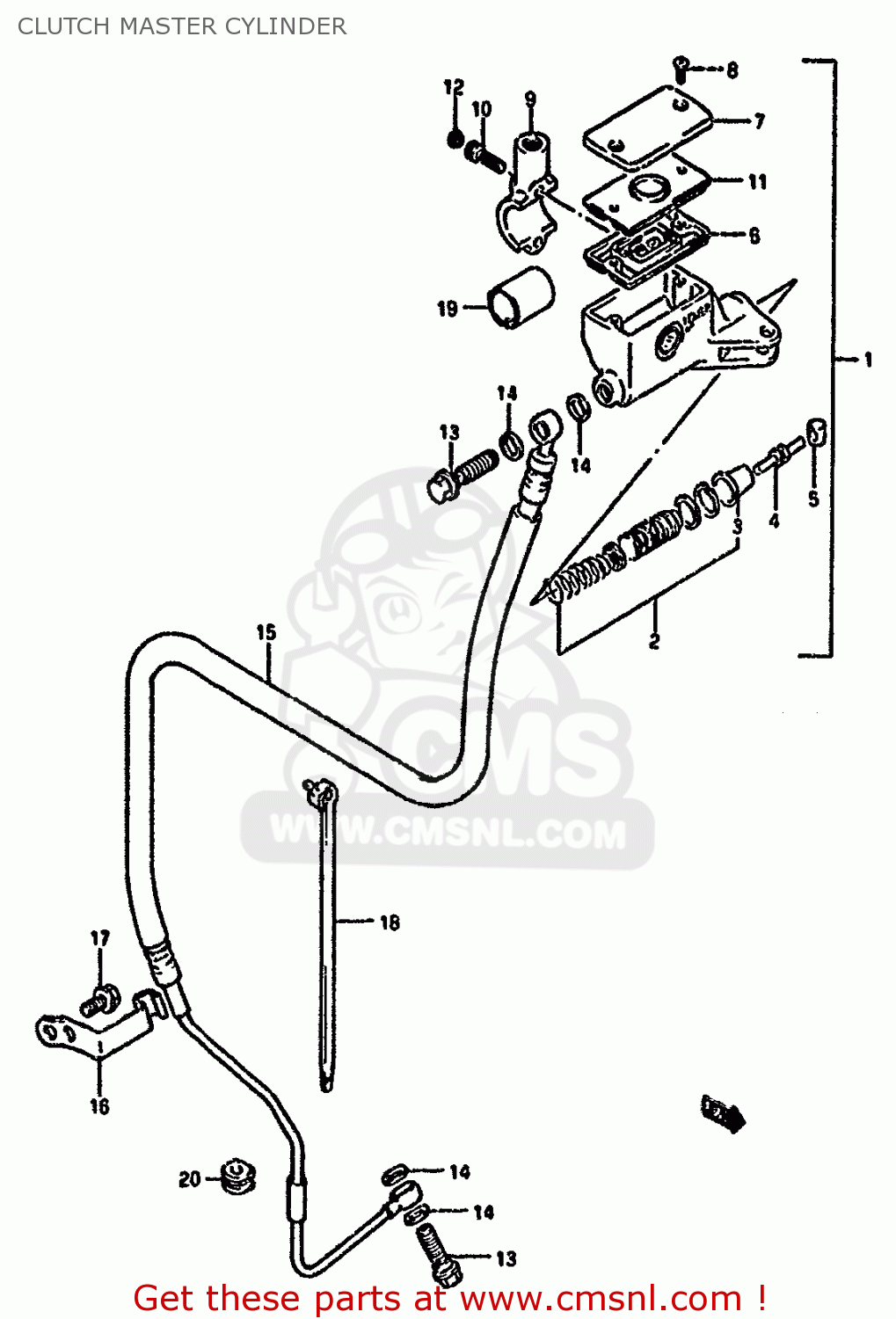

Clutch master cylinder diagram GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)

CLUTCH MASTER CYLINDER GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
CLUTCH MASTER CYLINDER GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
CLUTCH MASTER CYLINDER GSX1100G 1993 (P) ZWITZERLAND AUSTRALIA (E18 E24)
prices are in EUR
ref
part #
description
quantity
1
5980026D00
ref: 1
CYLINDER ASSEMBLY,CLUTCH MASTER
€ 208.00
2
5980008810
ref: 2
PISTON & CUP SET
5980008810
€ 36.50
3
5966644300
ref: 3
BOOT
5966644300
€ 6.00
4
5987138A00
ref: 4
PUSH ROD
5987138A00
€ 6.50
5
5989208A00
ref: 5
BUSH
5989208A00
€ 5.50
6
5966749460
ref: 6
5966749460
7
5966926D00
ref: 7
CAP
5966926D00
€ 48.00
8
5969138A00
ref: 8
SCREW,RESERVOIR CAP
5969138A00
€ 2.00
9
5967126D00
ref: 9
HOLDER
5967126D00
€ 65.50
10
0713006207
ref: 10
BOLT
0713006207
€ 3.50
11
5966841C00
ref: 11
PLATE,DIAPHRAGM
5966841C00
€ 8.00
12
0925005008
ref: 12
CAP(OD:10)
0925005008
€ 5.00
13-1
0936010017
ref: 13-1
MODEL M/N/P
BOLT UNION
0936010017
€ 6.50
13-2
0936010039
ref: 13-2
MODEL R
BOLT UNION
€ 6.50
14
0916110009
ref: 14
WASHER(10X15X1.5)
0916110009
€ 2.00
15
5991026D00
ref: 15
HOSE COMP,CLUTCH
€ 190.00
16
5992126D00
ref: 16
GUIDE,CLUTCH HOSE
€ 6.00
17-1
0151706164
ref: 17-1
MODEL M/N/P
BOLT
€ 2.50
17-2
0155006163
ref: 17-2
MODEL R
BOLT
0155006163
€ 2.50
18
0940722404
ref: 18
CLAMP
0940722404
€ 2.50
19
5989426D00
ref: 19
SPACER,CLUTCH MASTER
€ 8.50
20
5991526D00
ref: 20
GROMMET,CLUTCH HOSE
€ 3.50
