BATTERY

GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

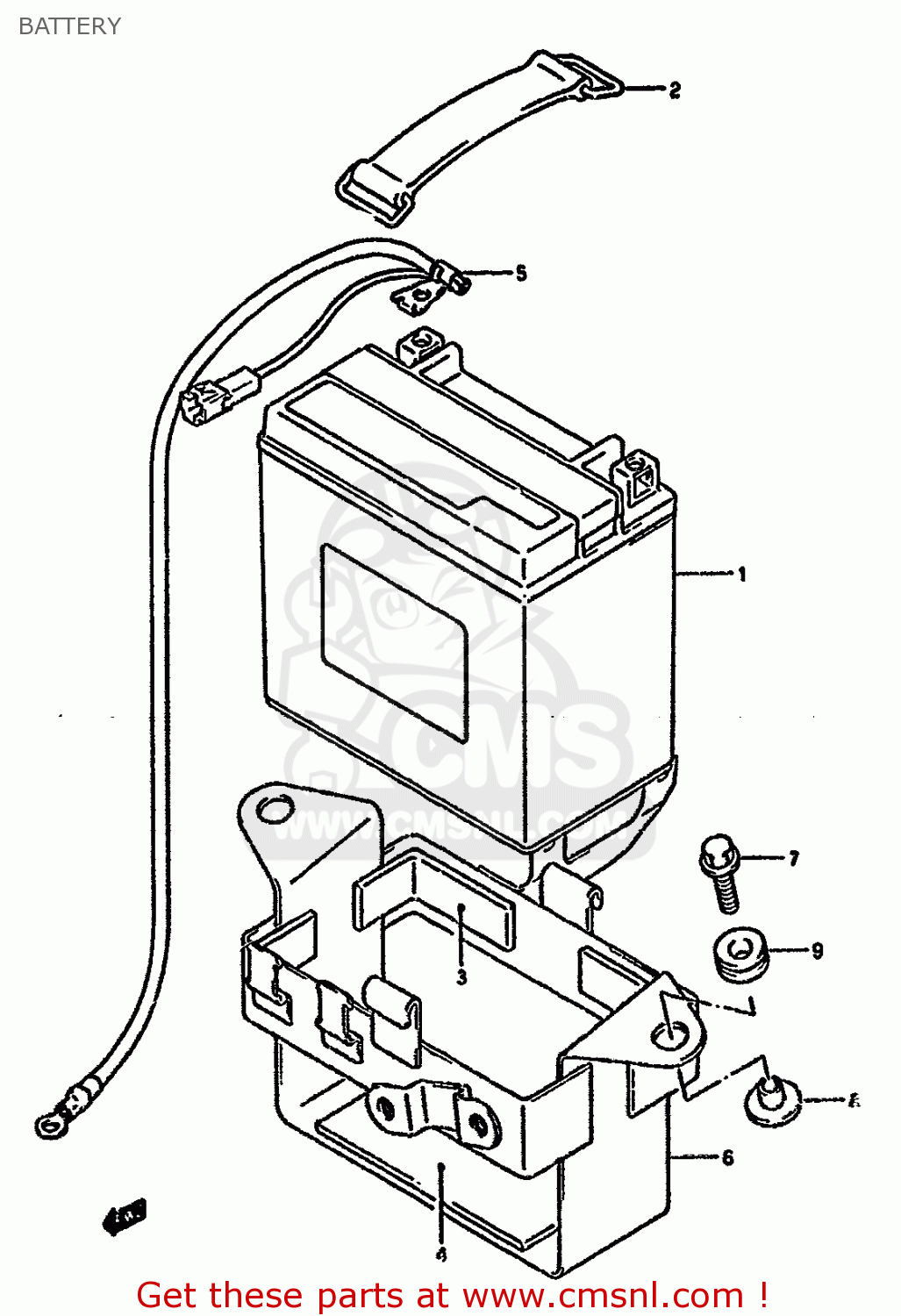

Battery diagram GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

3361026D10
ref: 1
33610-26D00

BATTERY ASSY (12V) YTX14-BS

€ 116.50

0946200067
ref: 2

BAND

€ 4.50

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365137000
ref: 4
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3386026D00
ref: 5

WIRE,BATTERY MINUS LEAD

€ 10.00

4154026D00
ref: 6

HOLDER,BATTERY

€ 70.50

7-1

0155006307
ref: 7-1
MODEL M/N/P

BOLT

€ 2.00

7-2

0155006303
ref: 7-2
MODEL R

BOLT

€ 2.50

4157019C00
ref: 8

PLATE,BATTERY HOLDER

€ 3.50

0932008021
ref: 9
09320-08021

CUSHION

€ 4.00

all assemblies
