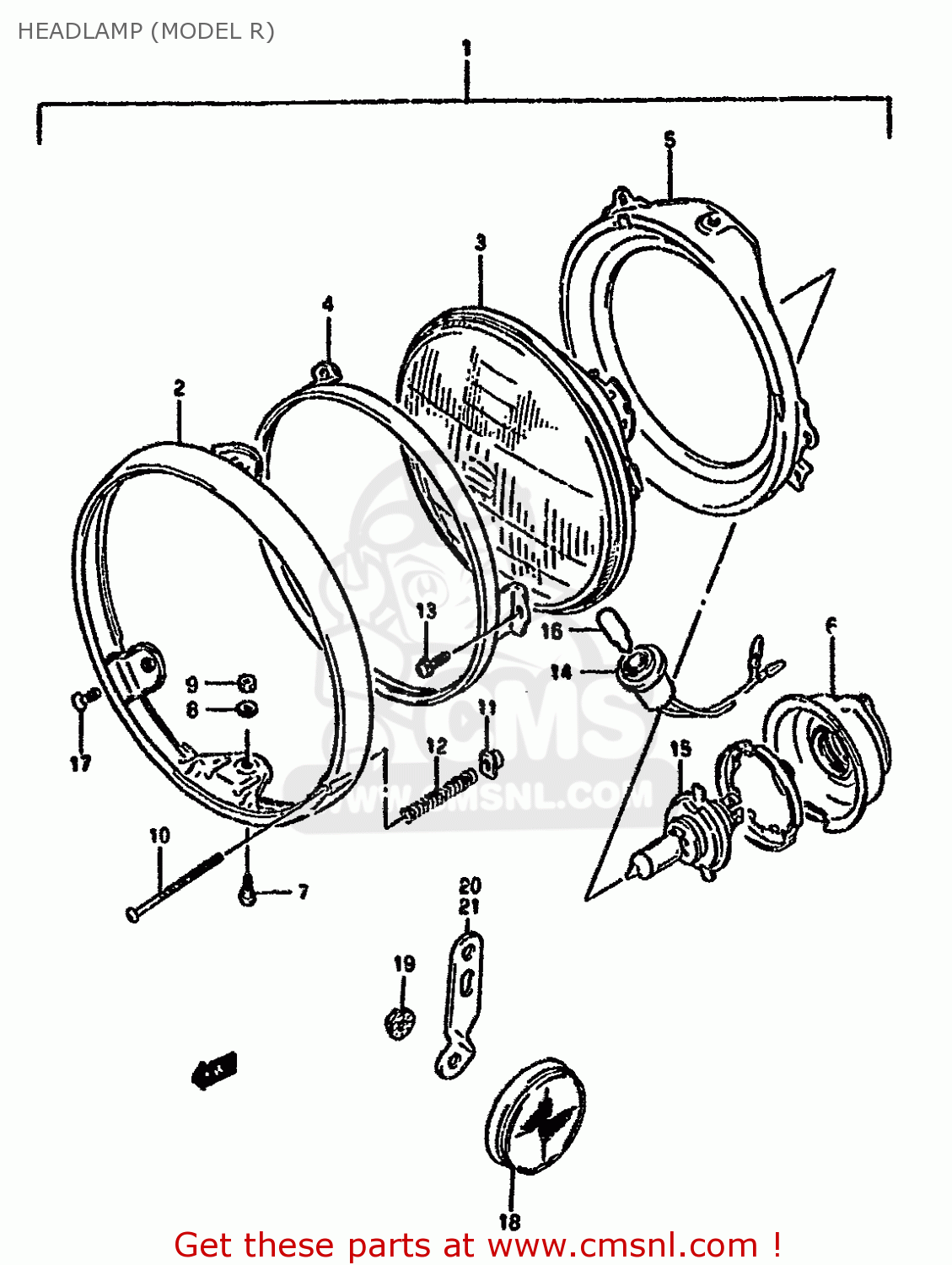

HEADLAMP (MODEL R)

ref

part #

description

quantity

1-1

3510026D20999
ref: 1-1
E2

HEADLAMP ASSY

€ 175.50

1-2

3510010D30999
ref: 1-2
E24

HEADLAMP ASSEMBLY

€ 244.00

1-3

3510026D50999
ref: 1-3
E4,E18,E22,E25

HEADLAMP ASSY

€ 272.00

2

3511101D20
ref: 2

RIM,HEADLAMP

€ 55.50

3-1

3512110D20
ref: 3-1
E2

LAMP UNIT

€ 147.00

3-2

3512110D30
ref: 3-2
E24

LAMP UNIT

€ 113.00

3-3

3512110D40
ref: 3-3
E4,E18,E22,E25

LAMP UNIT

€ 147.00

4

3512710D20
ref: 4

RING

€ 22.00

5

3513045030
ref: 5

RING

€ 29.50

6

3517320A01
ref: 6

COVER,SOCKET

€ 14.50

7

3518115611
ref: 7

H/LAMP LENS UNIT FITING SCRE

€ 3.00

8

0832101057
ref: 8

WASHER,LOCK

€ 2.00

9

0831000053
ref: 9

NUT

€ 2.50

10

3515145030
ref: 10

SCREW,HEADLAMP ADJUST

€ 4.00

11

3515215611
ref: 11

NUT

€ 3.50

12

3515431900
ref: 12

SPRING,ADJUSTING

€ 3.50

13

0211204107
ref: 13

SCREW

€ 2.00

14

3611826D50
ref: 14
E2,E4,E18,E22,E25

SOCKET,PARKING LAMP

€ 19.00

15

0947112060
ref: 15

BULB(12V60/55W,H4)

€ 8.00

16

0947112063
ref: 16
E2,E4,E18,E22,E25

BULB(12V4W)

€ 6.00

17

0212205127
ref: 17

SCREW

€ 2.50

18

3595014A00
ref: 18
E18

REFLECTOR,REFLEX FR

€ 15.00

19

0831600053
ref: 19
E18

NUT

€ 0.00

20

3595626D00
ref: 20
E18

BRACKET,FRONT SIDE REFLECTOR

€ 0.00

21

3595726D00
ref: 21
E18

BRACKET,FRONT SIDE REFLECTOR

€ 0.00

25-1

3595626D00
ref: 25-1
E39,MODEL P E18

BRACKET,FRONT SIDE REFLECTOR

€ 0.00

25-2

3595726D00
ref: 25-2
E39,MODEL P E18

BRACKET,FRONT SIDE REFLECTOR

€ 0.00

all assemblies
