REAR MASTER CYLINDER

GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

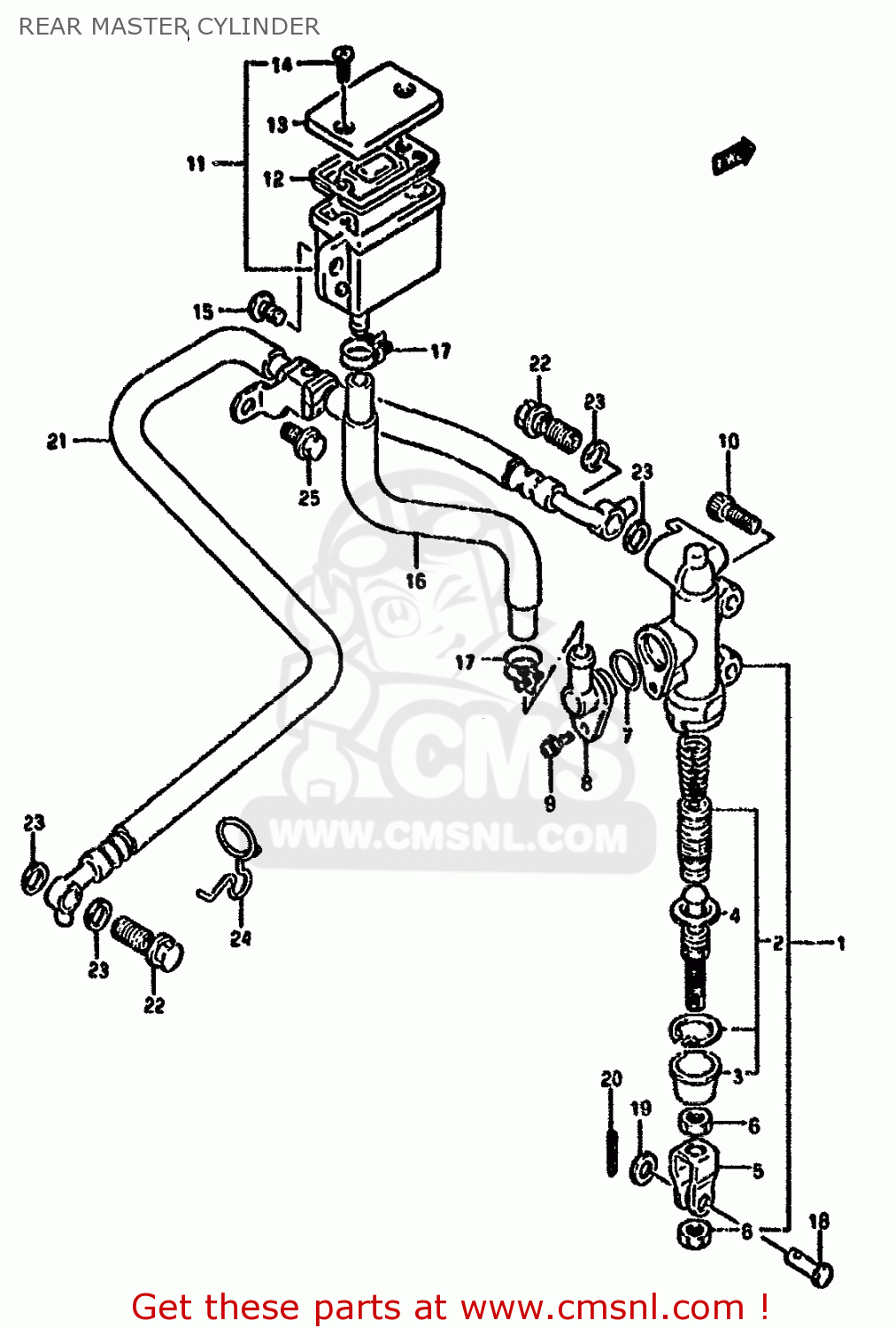

Rear master cylinder diagram GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

REAR MASTER CYLINDER GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)
REAR MASTER CYLINDER GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)
REAR MASTER CYLINDER GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1
6960026D00
ref: 1
CYLINDER ASSEMBLY,REAR MASTER
€ 146.50
2
6960004820
ref: 2
PISTON/CUP SET
6960004820
€ 31.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6967000B21
ref: 4
ROD,PUSH
6967000B21
€ 24.00
5
6969227A30
ref: 5
YOKE
6969227A30
€ 12.50
6
6969305A00
ref: 6
NUT
6969305A00
€ 1.50
7
6968634200
ref: 7
O RING
6968634200
€ 3.50
8
6967205A00
ref: 8
CONNECTOR
6967205A00
€ 4.50
9
0211274125
ref: 9
SCREW
€ 2.50
10-1
0713006205
ref: 10-1
MODEL M/N/P
BOLT
€ 3.00
10-2
0713006203
ref: 10-2
MODEL R
BOLT,CRKCASE,R
0713006203
€ 3.00
11-1
6974024A00
ref: 11-1
MODEL M/N 69740-24A0
TANK ASSEMBLY,RESERVOIR
6974024A00
€ 99.50
11-2
6974024A01
ref: 11-2
MODEL P/R
TANK ASSY,RESERVOIR
6974024A01
€ 99.50
12
5966704700
ref: 12
DIAPHRAGM
5966704700
€ 8.00
13-1
6966924A01
ref: 13-1
MODEL M/N
CAP
6966924A01
€ 12.00
13-2
5966905D00
ref: 13-2
MODEL P/R
CAP
5966905D00
€ 13.50
14
6968904A00
ref: 14
SCREW
6968904A00
€ 2.00
15-1
0214206127
ref: 15-1
MODEL M/N/P
SCREW 6X12
0214206127
€ 1.50
15-2
0214206123
ref: 15-2
MODEL R
SCREW 6X12
0214206123
€ 2.00
16-1
6973126D00
ref: 16-1
MODEL M/N/P
HOSE,RESERVOIR TANK
€ 26.00
16-2
6973126D01
ref: 16-2
MODEL R
HOSE,RESERVOIR TANK
€ 26.00
17
0940015302
ref: 17
CLAMP
0940015302
€ 2.50
18
0920006037
ref: 18
PIN
0920006037
€ 5.00
19-1
0832201067
ref: 19-1
MODEL M/N/P
WASHER
0832201067
€ 2.00
19-2
0832201063
ref: 19-2
MODEL R
WASHER
0832201063
€ 2.00
20
0411120158
ref: 20
PIN
0411120158
€ 1.50
21-1
6948026D00
ref: 21-1
MODEL M
HOSE COMP,REAR BRAKE
€ 80.00
21-2
6948026D01
ref: 21-2
MODEL N/P/R
HOSE,REAR BRAKE
€ 80.00
22-1
0936010017
ref: 22-1
MODEL M/N/P
BOLT UNION
0936010017
€ 6.50
22-2
0936010039
ref: 22-2
MODEL R
BOLT UNION
€ 6.50
23
0916110009
ref: 23
WASHER(10X15X1.5)
0916110009
€ 2.00
24
6924319C00
ref: 24
GUIDE,BRAKE HOSE
€ 3.00
25-1
0151706105
ref: 25-1
MODEL M/N/P
BOLT
€ 2.50
25-2
0155006103
ref: 25-2
MODEL R
BOLT
0155006103
€ 2.50
