FRAME

GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

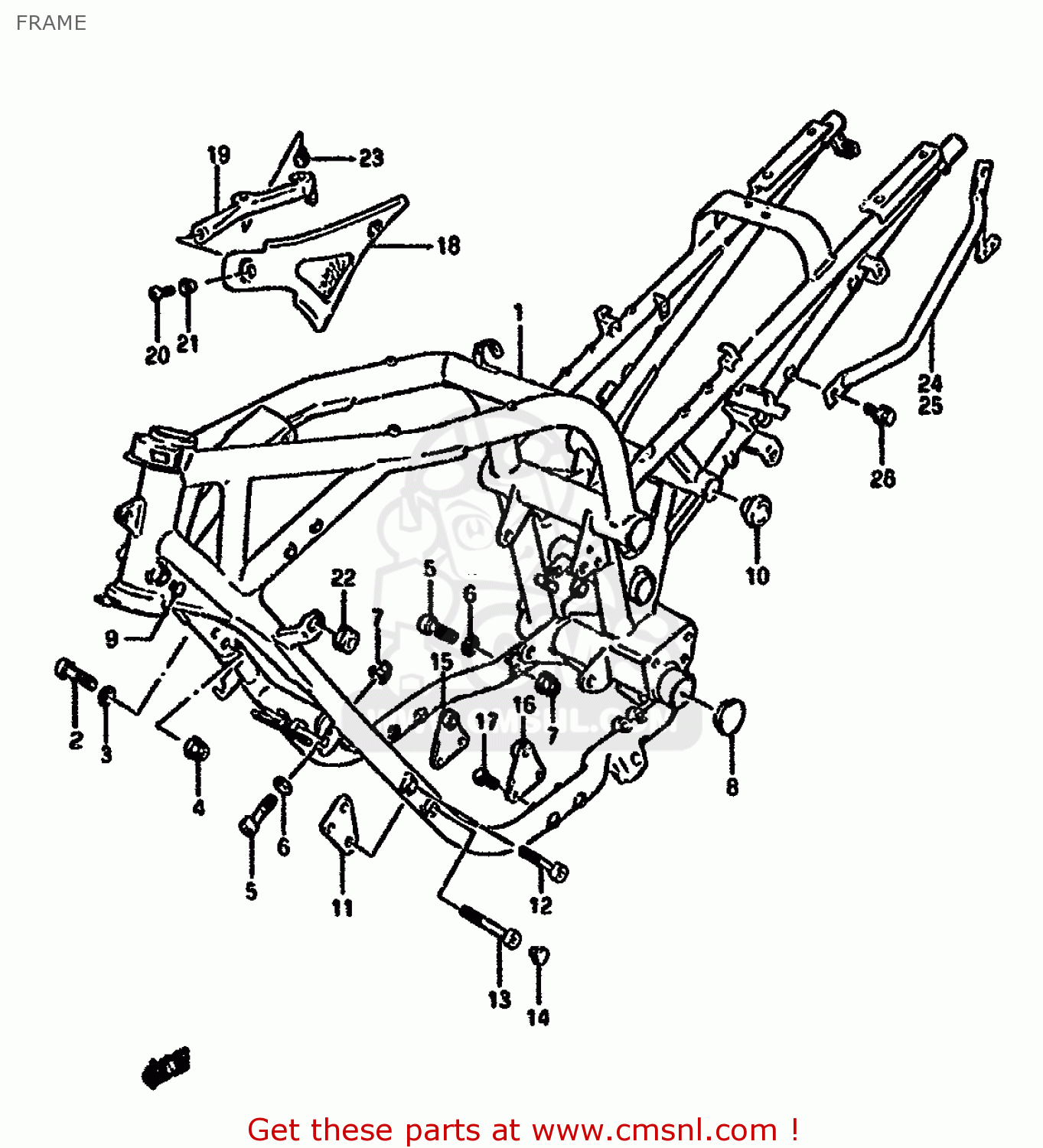

Frame diagram GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

FRAME GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)
FRAME GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)
FRAME GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1-1
4110026D00019
ref: 1-1
MODEL M
FRAME
€ 2,519.00
1-2
4110026D01019
ref: 1-2
MODEL N
FRAME SET (BLACK)
€ 2,519.00
1-3
4110026D02019
ref: 1-3
MODEL P/R
FRAME SET (BLACK)
€ 2,519.00
1-4
4110026D10019
ref: 1-4
MODEL M E18,E39
FRAME
€ 0.00
1-5
4110026D11019
ref: 1-5
MODEL N E18,E39
FRAME SET (BLACK)
€ 0.00
1-6
4110026D12019
ref: 1-6
MODEL P/R E18
FRAME SET (BLACK)
€ 0.00
2
0910610033
ref: 2
BOLT 10X38
0910610033
€ 2.50
3
0916410005
ref: 3
WASHER
0916410005
€ 6.50
4
0831931105
ref: 4
NUT 10MM
€ 3.00
5
0910610019
ref: 5
BOLT(10X33)
0910610019
€ 4.00
6
0916410005
ref: 6
WASHER
0916410005
€ 6.50
7
0831931105
ref: 7
NUT 10MM
€ 3.00
8
4358526D00
ref: 8
CAP,BODY TUBE
4358526D00
€ 5.50
9
0925009001
ref: 9
CAP(OD:14)
0925009001
€ 1.00
10
0925035003
ref: 10
MODEL M
CAP(OD:45)
0925035003
€ 3.00
11
4191126D00
ref: 11
PLATE,ENGINE MOUNTING NO.1
€ 14.50
12-1
0711008505
ref: 12-1
MODEL M/N/P
BOLT
0711008505
€ 3.50
12-2
0713008503
ref: 12-2
MODEL R
BOLT
0713008503
€ 3.50
13-1
0711008605
ref: 13-1
MODEL M/N/P
BOLT, LOWER
€ 4.50
13-2
0713008603
ref: 13-2
MODEL R
BOLT
€ 4.50
14
0925008016
ref: 14
CAP(OD:12)
0925008016
€ 2.50
15
4193026D01
ref: 15
41930-26D00
PLATE,NO.2 RH
€ 24.50
16
4194026D01
ref: 16
41940-26D00
PLATE,NO.2 LH
€ 20.50
17-1
0712008205
ref: 17-1
MODEL M
BOLT
0712008205
€ 3.00
17-2
0151708205
ref: 17-2
MODEL N/P
BOLT
€ 3.00
17-3
0155008203
ref: 17-3
MODEL R
BOLT
0155008203
€ 3.00
18-1
4751126D00
ref: 18-1
COVER,FRAME HEAD,RIGHT
€ 19.50
18-2
4752126D00
ref: 18-2
COVER,FRAME HEAD,LEFT
€ 17.00
19-1
4731226D00
ref: 19-1
PLATE,HEAD COVER,L
4731226D00
€ 15.00
19-2
4731326D00
ref: 19-2
PLATE,HEAD COVER,R
4731326D00
€ 14.00
20
0913905025
ref: 20
SCREW(5X14)
0913905025
€ 2.00
21
0916105017
ref: 21
WASHER(5.2X14X1.5)
0916105017
€ 3.00
22
0932008018
ref: 22
CUSHION
0932008018
€ 4.00
23-1
0214206104
ref: 23-1
MODEL M
SCREW
0214206104
€ 2.00
23-2
0214206108
ref: 23-2
MODEL N/P
SCREW
0214206108
€ 2.00
23-3
0214206103
ref: 23-3
MODEL R
SCREW 6X10
0214206103
€ 2.00
24-1
4397026D00
ref: 24-1
GRIP,REAR RH
4397026D00
€ 39.50
24-2
4397026D10
ref: 24-2
E39,MODEL P/R E18
GRIP COMP,REAR,RIGHT
4397026D10
€ 39.00
25-1
4398026D00
ref: 25-1
GRIP,RR,L
€ 47.00
25-2
4398026D10
ref: 25-2
E39,MODEL P/R E18
GRIP COMP,REAR,LEFT
€ 0.00
26-1
0155008167
ref: 26-1
MODEL M/N/P
BOLT
0155008167
€ 3.00
26-2
0155008163
ref: 26-2
MODEL R
BOLT
0155008163
€ 3.00
