HANDLE SWITCH

GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

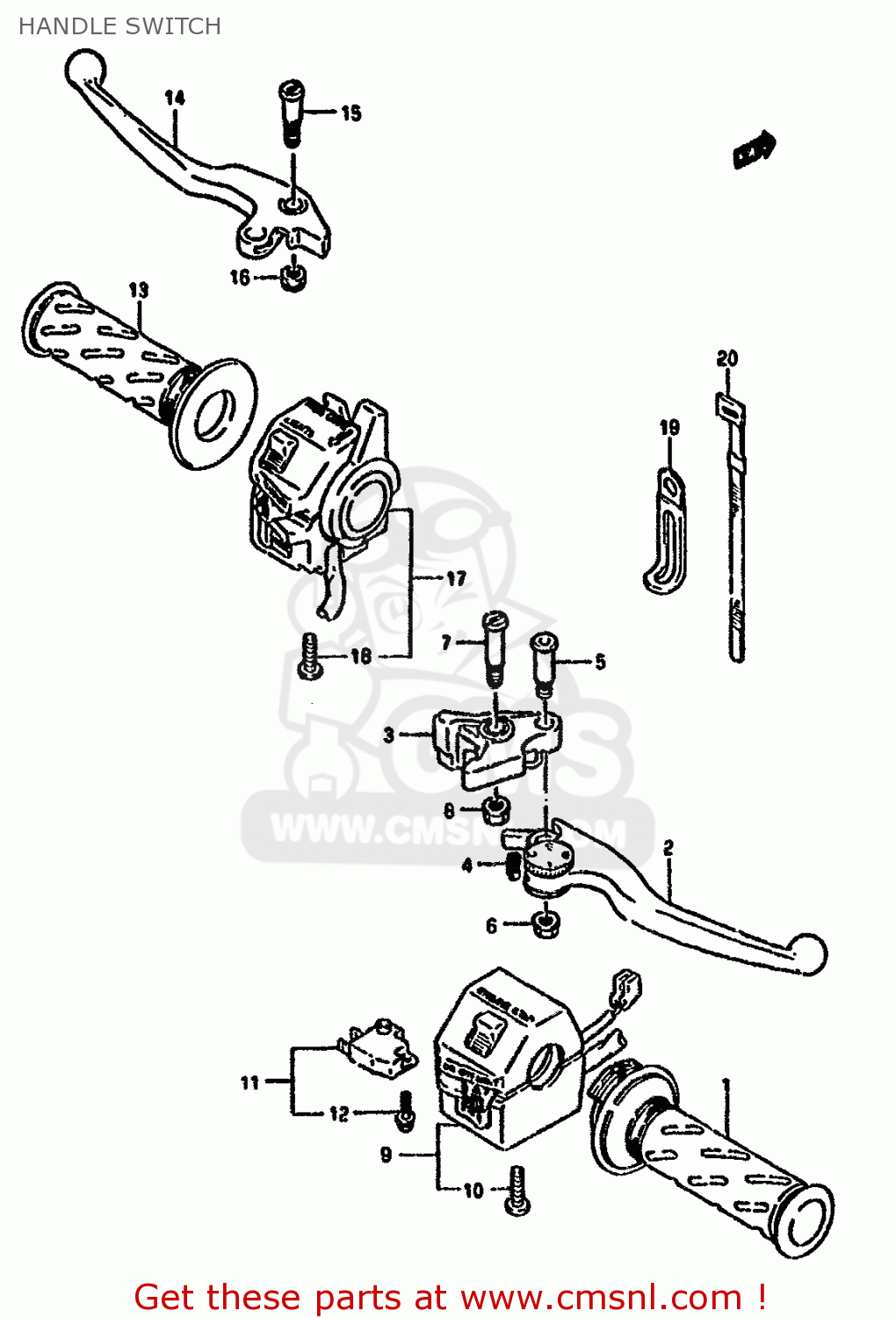

Handle switch diagram GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

HANDLE SWITCH GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)
HANDLE SWITCH GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)
HANDLE SWITCH GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1
5711022D01
ref: 1
GRIP,THROTTLE
5711022D01
€ 22.50
2
5742032C00
ref: 2
LEVER,ADJUST
5742032C00
€ 39.50
3
5743040C00
ref: 3
KNOCKER
5743040C00
€ 51.00
4
5743832C00
ref: 4
SPRING
5743832C00
€ 4.00
5
5743732C00
ref: 5
BOLT,LEVER
5743732C00
€ 6.50
6
0831931065
ref: 6
NUT
0831931065
€ 2.50
7
5743117C00
ref: 7
BOLT,LEVER PIVOT
5743117C00
€ 8.00
8
0831616064
ref: 8
NUT 6MM
0831616064
€ 2.50
9-1
3720026D10
ref: 9-1
MODEL M/N/P
SWITCH,HANDLE,
€ 154.50
9-2
3720026D11
ref: 9-2
MODEL R
SWITCH ASSY,HANDLE RH
€ 154.50
9-3
3720026D50
ref: 9-3
MODEL N/P E24
SWITCH ASSY,HANDLE RH
€ 0.00
9-4
3720026D51
ref: 9-4
MODEL R E24
SWITCH ASSY,HANDLE RH
€ 0.00
10
0211205455
ref: 10
SCREW, 5X45
0211205455
€ 4.00
11
5746017C00
ref: 11
SWITCH ASSEMBLY,STOP
5746017C00
€ 32.50
12
5746517C00
ref: 12
SCREW
5746517C00
€ 1.50
13
5721122D00
ref: 13
GRIP,LEFT
5721122D00
€ 11.50
14
5762138A02
ref: 14
57620-40C00
LEVER,CLUTCH (SILVER)
5762138A02
€ 31.50
15-1
5743126D00
ref: 15-1
MODEL M/N/P
BOLT,LEVER SET
5743126D00
€ 8.50
15-2
5743105A00
ref: 15-2
MODEL R
BOLT,LEVER
5743105A00
€ 8.50
16
0831921065
ref: 16
NUT
0831921065
€ 2.50
17
3740032B00
ref: 17
SWITCH ASSEMBLY,HANDLE,LEFT
3740032B00
€ 146.00
18
0211205455
ref: 18
SCREW, 5X45
0211205455
€ 4.00
19-1
0940408402
ref: 19-1
MODEL M
CLAMP
0940408402
€ 3.50
19-2
0940408402
ref: 19-2
MODEL N/P
CLAMP
0940408402
€ 3.50
19-3
0940408413
ref: 19-3
MODEL R
CLAMP
€ 3.50
20
0940712402
ref: 20
CLAMP(L:120)
0940712402
€ 3.00
