SIGNAL GENERATOR

GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

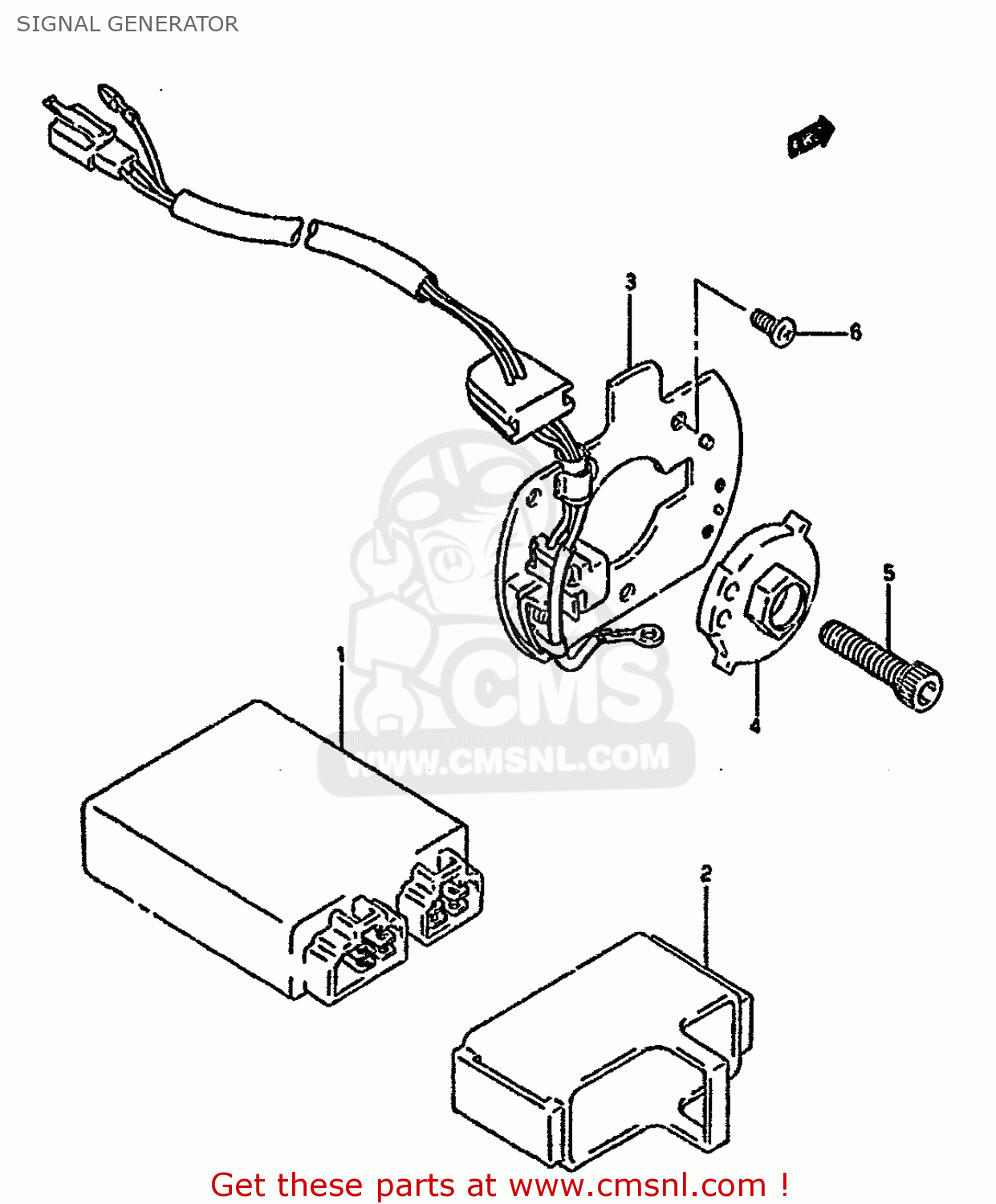

Signal generator diagram GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1-1

3290026D00
ref: 1-1

IGNITER ASSEMBLY

€ 626.00

1-2

3290026D20
ref: 1-2
E22

IGNITER ASSY

€ 0.00

2-1

3298040C00
ref: 2-1
MODEL M/N/P

CUSHION,IGNITER

€ 9.50

2-2

3298040C01
ref: 2-2
MODEL R

CUSHION,IGNITOR

€ 9.50

3311017C00
ref: 3
33110-19C00

GENERATOR ASSY,SIGNAL

€ 324.00

3312019C00
ref: 4

ROTOR,SIGNAL

€ 182.00

5-1

0711008306
ref: 5-1
MODEL M/N/P

BOLT

€ 3.00

5-2

0712008303
ref: 5-2
MODEL R

BOLT

€ 3.50

6-1

0211205107
ref: 6-1
MODEL M/N/P

SCREW

€ 2.00

6-2

0211205103
ref: 6-2
MODEL R

SCREW

€ 2.00
