STARTER CLUTCH

GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

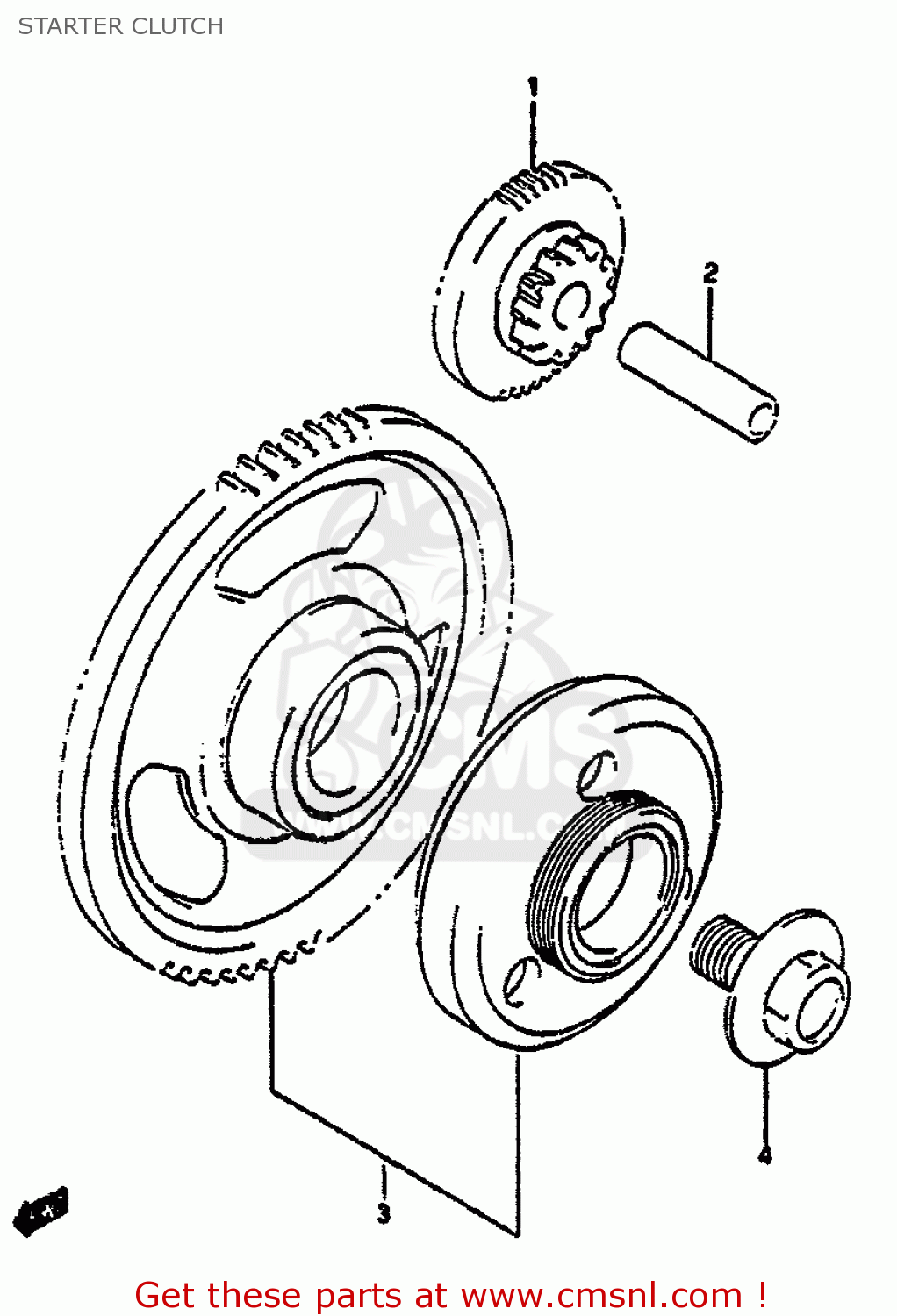

Starter clutch diagram GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

STARTER CLUTCH GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

STARTER CLUTCH GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1

1261126D00
ref: 1

GEAR,STARTER IDLE

€ 40.00

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260026820
ref: 3

CLUTCH SET,STARTER

€ 209.00

4

0910314005
ref: 4

BOLT(14X21)

€ 17.00
