MUFFLER

GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

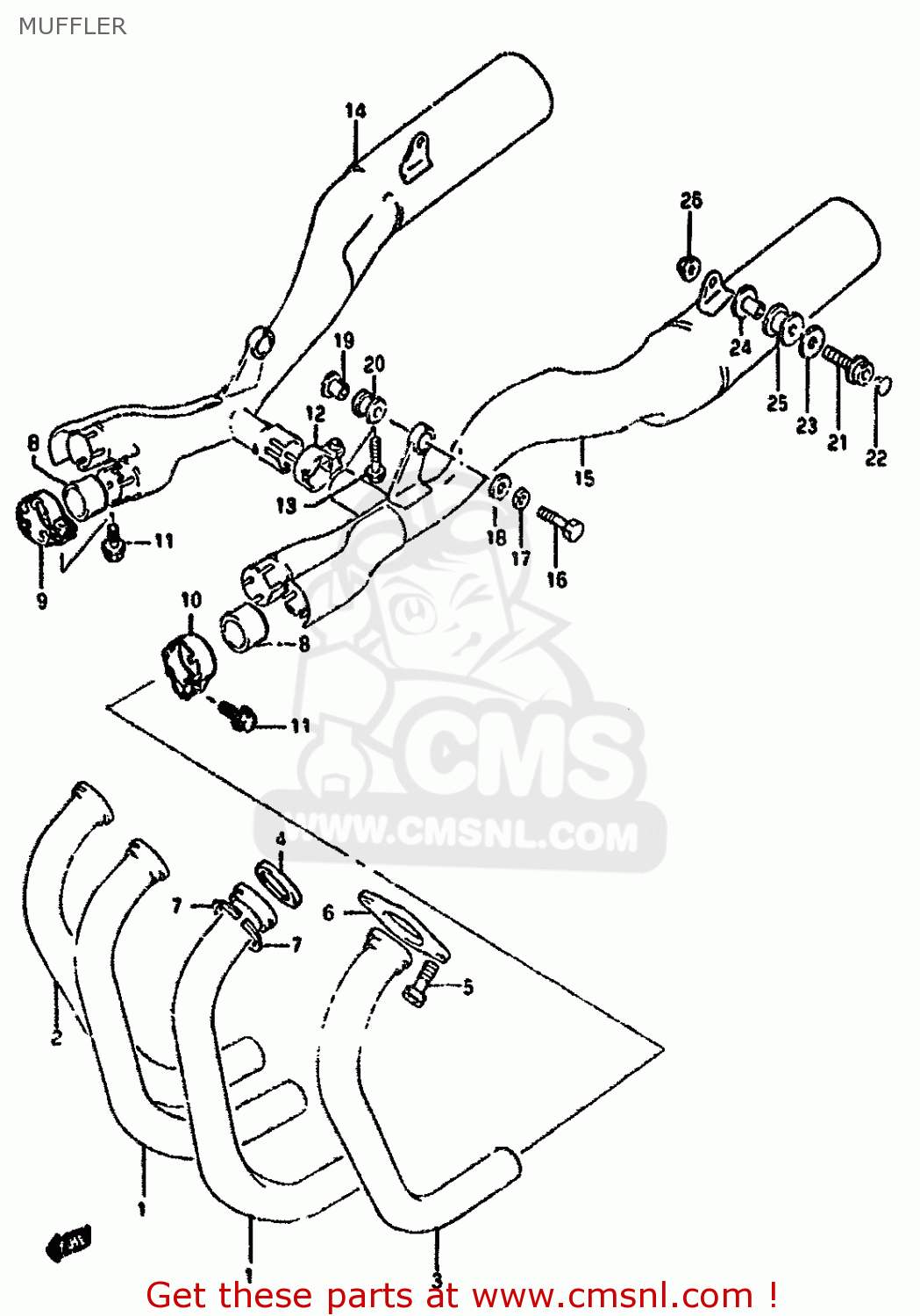

Muffler diagram GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

MUFFLER GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)
MUFFLER GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)
MUFFLER GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1
1417026D01
ref: 1
PIPE,EXHAUST,CENTER
€ 149.00
2
1415026D01
ref: 2
PIPE,EXHAUST,RIGHT
€ 149.50
3
1416026D02
ref: 3
PIPE,EXHAUST
1416026D02
€ 171.00
4
1418118C00
ref: 4
GASKET,EXHAUST (NAS)
1418118C00
€ 6.50
5
0713008257
ref: 5
BOLT
0713008257
€ 3.50
6
1418226D00
ref: 6
CLAMP,EXHAUST PIPE
1418226D00
€ 21.00
7
1415527A00
ref: 7
PLATE,EXHAUST PIPE
1415527A00
€ 3.50
8
1477148B01
ref: 8
CONNECTOR,MUFFLER
1477148B01
€ 25.00
9
1445926D10
ref: 9
CLAMP,MUFFLER CONNECTOR,R
1445926D10
€ 17.00
10
1446926D10
ref: 10
CLAMP,MUFFLER CONNECTOR,L
1446926D10
€ 22.00
11
0155008257
ref: 11
BOLT
0155008257
€ 2.50
12
1445945C00
ref: 12
CLAMP,MUFFLER JOINT
1445945C00
€ 17.00
13-1
0155008357
ref: 13-1
MODEL M/N/P
BOLT
0155008357
€ 3.50
13-2
0155008353
ref: 13-2
MODEL R
BOLT
0155008353
€ 3.50
14-1
1430526D01H01
ref: 14-1
14305-26D00
MUFFLER ASSEMBLY
€ 541.50
14-2
1430526D20
ref: 14-2
E18
MUFFLER,RH
€ 652.00
15-1
1430626D01H01
ref: 15-1
14306-26D00
MUFFLER ASSEMBLY
€ 608.00
15-2
1430626D20
ref: 15-2
E18
MUFFLER,LH
€ 479.50
16-1
0110708458
ref: 16-1
MODEL M/N/P
BOLT 8X45
€ 2.50
16-2
0155008453
ref: 16-2
MODEL R
BOLT
€ 3.00
17
0832131084
ref: 17
MODEL M/N/P
LOCK WASHER
€ 2.50
18
0916008057
ref: 18
WASHER (8.5X20X1.6)
0916008057
€ 2.00
19
0918008157
ref: 19
SPACER(8.6X12X18.5)
0918008157
€ 5.50
20
0932012057
ref: 20
CUSHION
0932012057
€ 13.00
21-1
0712008457
ref: 21-1
MODEL M/N
BOLT
€ 3.50
21-2
0151708457
ref: 21-2
MODEL P
BOLT 8X45
€ 4.00
21-3
0155008457
ref: 21-3
MODEL R
BOLT
0155008457
€ 4.00
22
0925006008
ref: 22
MODEL M/N
CAP(OD:10)
0925006008
€ 3.00
23
0916008110
ref: 23
WASHER (8.5X30X2.3)
€ 2.00
24
0918008156
ref: 24
SPACER(8.6X12X27.1)
0918008156
€ 6.50
25
0932012049
ref: 25
CUSHION
0932012049
€ 9.00
26-1
0831626088
ref: 26-1
MODEL M/N/P
NUT
0831626088
€ 3.00
26-2
0831610087
ref: 26-2
MODEL R
NUT
0831610087
€ 2.50
