CRANK BALANCER

GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

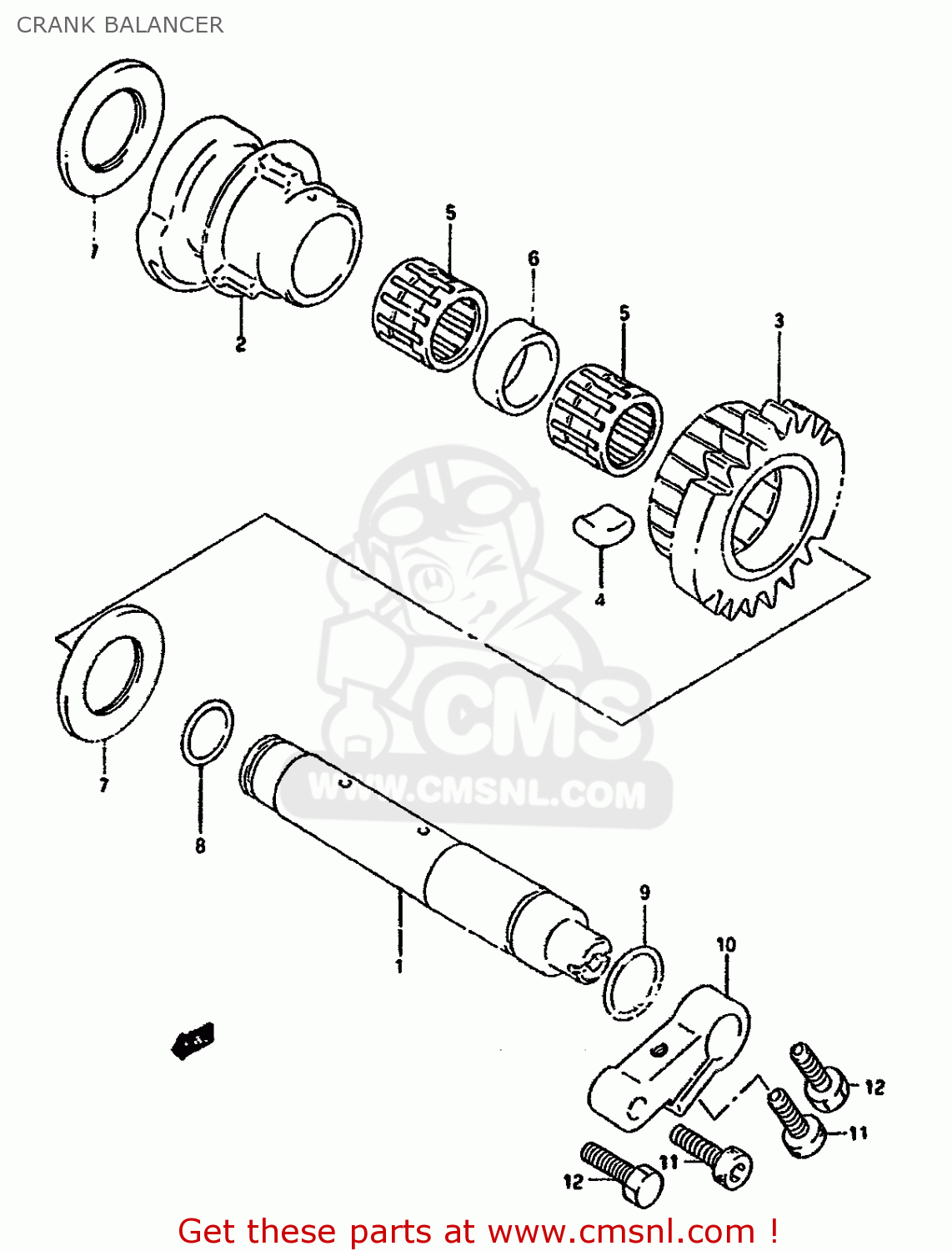

Crank balancer diagram GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1-1

1265026D000F0
ref: 1-1
MODEL M/N

SHAFT COMP,BALANCER

€ 120.00

1-2

1265026D010F0
ref: 1-2
MODEL P/R

SHAFT,CRANK BALANCER

€ 120.00

1265426D000F0
ref: 2

BALANCER,CRANKSHAFT

€ 115.00

1266626D00
ref: 3

GEAR,CRANK BALANCER

€ 79.50

1268626D00
ref: 4

DAMPER,BALANCER GEAR

€ 4.50

0926319014
ref: 5

BEARING 19X25X22.8

€ 21.00

0918019010
ref: 6

SPACER (19X25X10)

€ 11.50

0916922006
ref: 7

WASHER (22X40X1)

€ 6.50

0928015006
ref: 8

O RING(D:1.9,ID:14.5)

€ 3.00

0928017004
ref: 9

O RING(D:1.9,ID:16.6)

€ 3.00

1268126D00
ref: 10

ARM,BALANCER SHAFT

€ 32.00

0713006205
ref: 11
MODEL M/N/P

BOLT

€ 3.00

0150006203
ref: 12
MODEL R

BOLT

€ 2.00
