CAM CHAIN

GSX1250FA 2011 (L1) USA (E03)

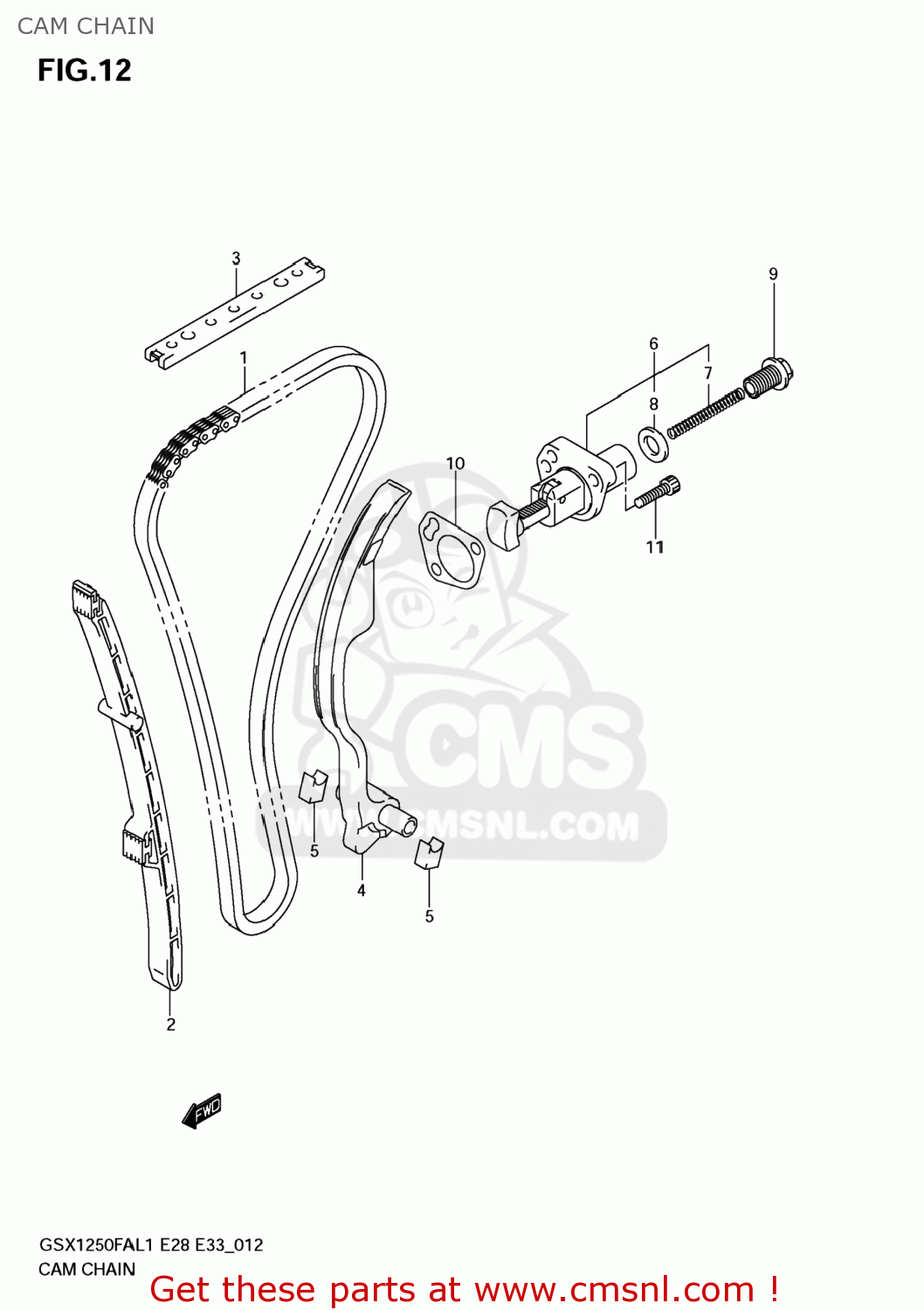

Cam chain diagram GSX1250FA 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1276018H00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 125.00

1277118H00
ref: 2

GUIDE,CAM CHAIN NO.1

€ 24.00

1278218H00
ref: 3

GUIDE,CAM CHAIN NO.2

€ 26.00

1281018H00
ref: 4

TENSIONER,CAM CHAIN

€ 55.50

1281434200
ref: 5

CUSHION,CAM CHAIN TENSIONER

€ 6.50

1283448G00
ref: 6

ADJUSTER ASSY,TNSN NO.2 FR

€ 85.50

1283135F00
ref: 7

SPRING

€ 3.50

1283724F10
ref: 8

GASKET,TENSIONER ADJUSTER (NAS)

€ 4.00

1283317G00
ref: 9

PLUG,TENSIONER ADJUSTER

€ 3.50

1283727G00
ref: 10

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

071300625A
ref: 11

BOLT

€ 2.50
