THROTTLE BODY (E28)
GSX1250FA 2011 (L1) USA (E03)

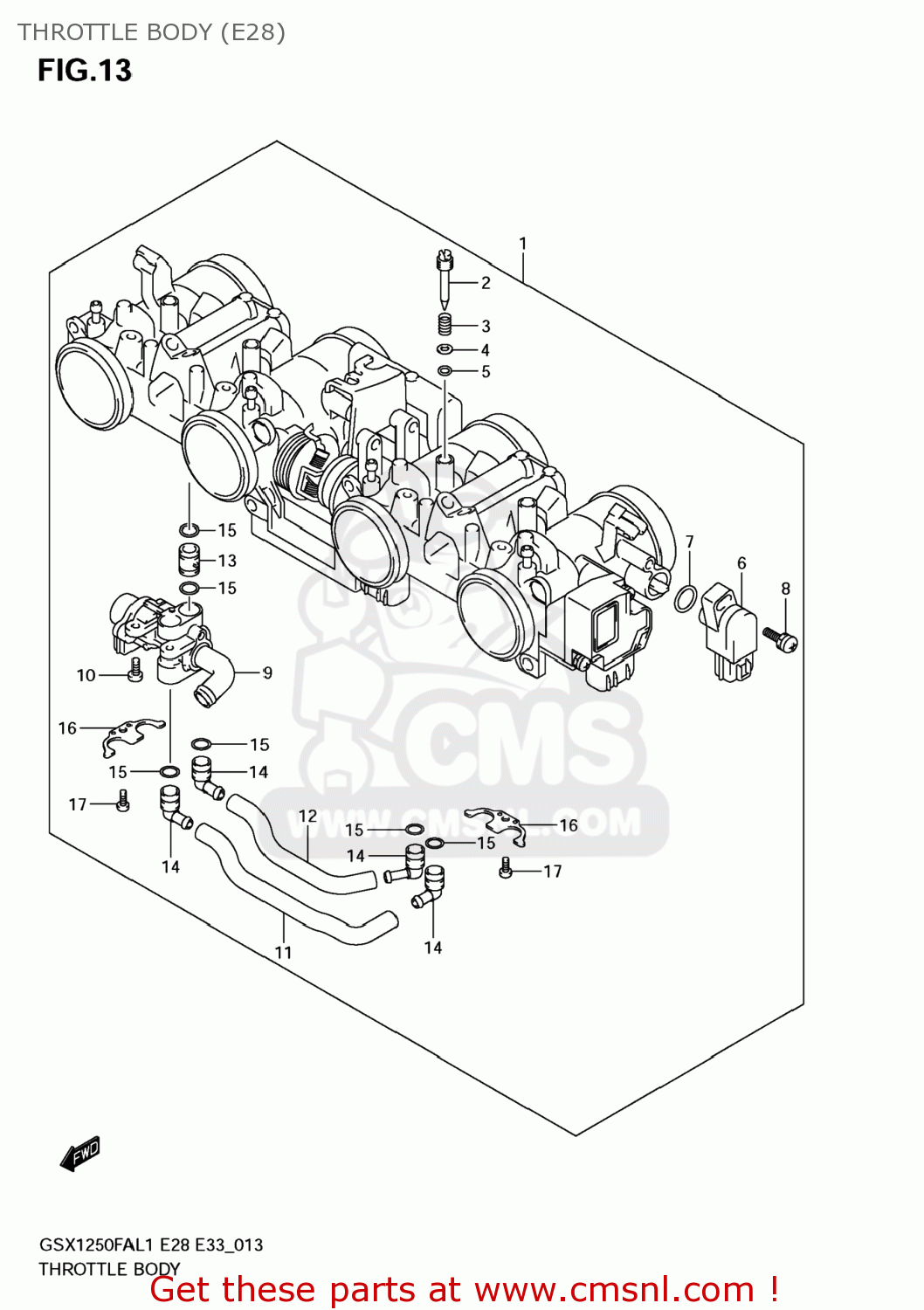

Throttle body (e28) diagram GSX1250FA 2011 (L1) USA (E03)
THROTTLE BODY (E28) GSX1250FA 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1340518H00
ref: 1
BODY ASSY,THROTTLE
€ 1,903.00
2
1326933E00
ref: 2
SCREW
€ 8.50
3
1326848700
ref: 3
SPRING,THROTTLE SCREW
€ 3.50
4
1360647A00
ref: 4
WASHER
€ 2.00
5
1329529900
ref: 5
O RING,PILOT AIR SCREW
€ 4.00
6
1358018H00
ref: 6
SENSOR
€ 130.00
7
1357529G00
ref: 7
O RING
€ 3.00
8
1360502F00
ref: 8
SCREW
€ 3.00
9
1811718H00
ref: 9
ACTUATOR
€ 360.00
10
1360518H00
ref: 10
SCREW
€ 3.00
11
1369818H00
ref: 11
HOSE
€ 44.00
12
1369818H10
ref: 12
HOSE
€ 44.00
13
1368218H00
ref: 13
PIPE
€ 7.00
14
1368518H00
ref: 14
NIPPLE
€ 8.50
15
1367918H00
ref: 15
O RING
€ 6.50
16
1369118H00
ref: 16
PLATE
€ 6.00
17
021120408A
ref: 17
SCREW
€ 2.00
