TRANSMISSION
GSX1250FA 2011 (L1) USA (E03)

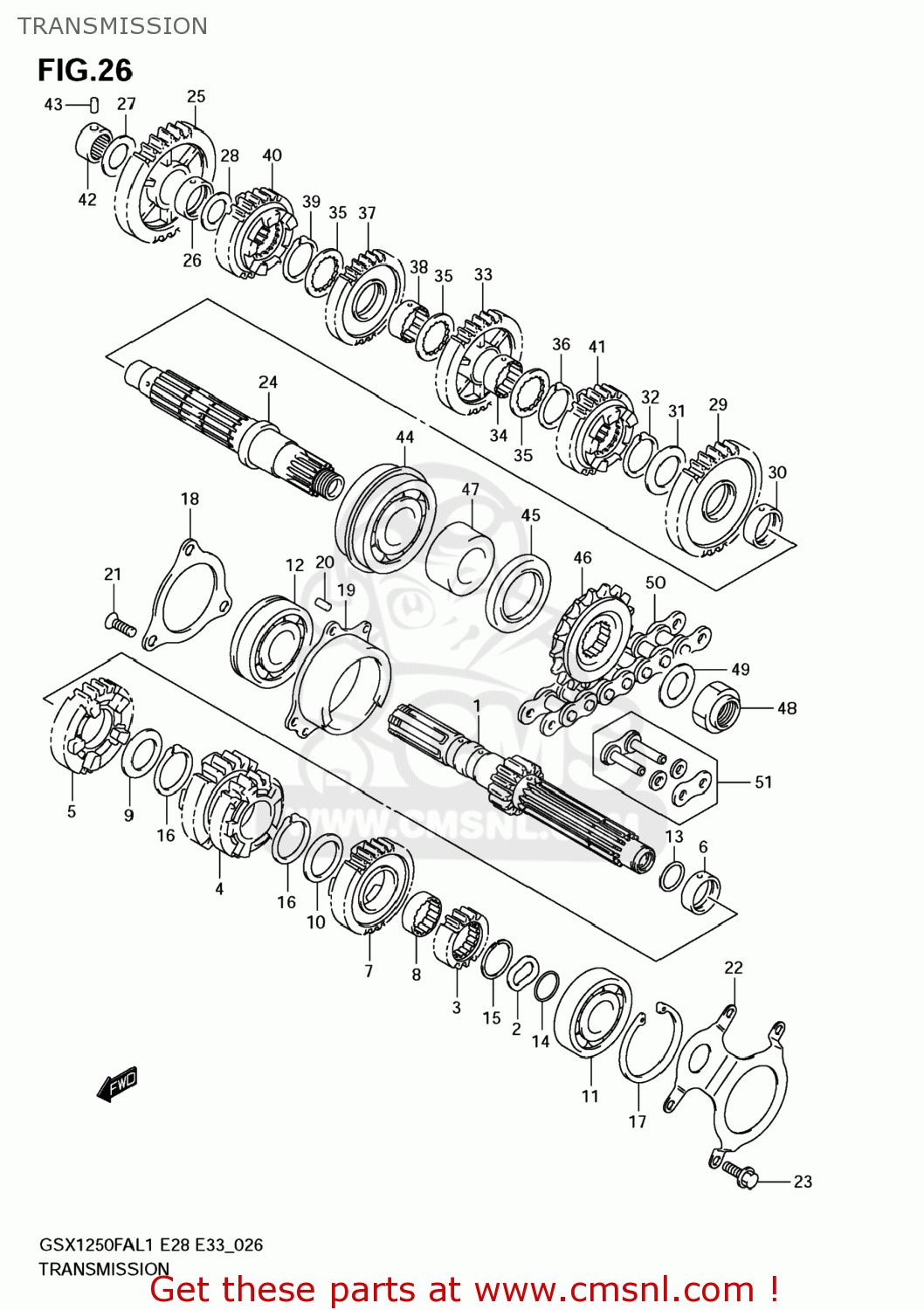

Transmission diagram GSX1250FA 2011 (L1) USA (E03)
TRANSMISSION GSX1250FA 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412018H10
ref: 1
SHAFT,COUNTER
€ 335.50
2
2412718H00
ref: 2
WASHER,COUNTER SHAFT WAVE
€ 3.00
3
2422118H10
ref: 3
GEAR,2ND DRIVE
€ 107.00
4
2423118H00
ref: 4
GEAR,3RD & 4TH DRIVE(NT:20/23)
€ 166.00
5
2425118H00
ref: 5
GEAR,5TH DRIVE(NT:25)
€ 140.00
6
2425235F00
ref: 6
BUSH,5TH DRIVE GEAR
€ 13.00
7
2426118H00
ref: 7
GEAR,6TH DRIVE(NT:28)
€ 132.50
8
2426235F10
ref: 8
BUSH,6TH DRIVE GEAR
€ 15.00
9
0916027008
ref: 9
WASHER(27X36X1)
€ 3.00
10
0916727001
ref: 10
WASHER,LOCK
€ 3.50
11
0926220080
ref: 11
BEARING(20X52X15)
€ 21.50
12
0926225163
ref: 12
BEARING(25X62X17)
€ 25.50
13
0928017004
ref: 13
O RING(D:1.9,ID:16.6)
€ 3.00
14
0928020001
ref: 14
O RING(D:1,ID:19.5)
€ 2.00
15
0938027004
ref: 15
CIRCLIP
€ 3.50
16
0938027006
ref: 16
CIRCLIP
€ 2.50
17
083314152A
ref: 17
CIRCLIP
€ 3.00
18
2475118H00
ref: 18
RETAINER,CNTR SHAFT BEARING,R
€ 13.50
19
2477118H10
ref: 19
HOUSING,CNTR SHAFT BRG,R
€ 96.00
20
0422106129
ref: 20
PIN
€ 1.50
21
0913906159
ref: 21
SCREW(6X20)
€ 2.50
22
2474118H10
ref: 22
RETAINER,CL PUSH ROD OIL SEAL
€ 11.00
23
0910306236
ref: 23
BOLT(6X12)
€ 3.00
24
2413118H20
ref: 24
SHAFT,DRIVE
€ 256.50
25
2431118H00
ref: 25
GEAR,1ST DRIVEN(NT:40)
€ 155.50
26
2431202F00
ref: 26
BUSH
€ 19.50
27
0918120251
ref: 27
SHIM(20X34X1)
€ 3.00
28
0918122223
ref: 28
SHIM(22X34X1)
€ 3.00
29
2432118H00
ref: 29
GEAR,2ND DRIVEN(NT:35)
€ 109.00
30
2432202F01
ref: 30
BUSH,2ND DRIVEN GEAR
€ 11.00
31
0916027008
ref: 31
WASHER(27X36X1)
€ 3.00
32
0938027006
ref: 32
CIRCLIP
€ 2.50
33
2433118H00
ref: 33
GEAR,3RD DRIVEN(NT:31)
€ 130.00
34
2433246H00
ref: 34
BUSH,3RD DRIVEN GEAR
€ 20.00
35
2433302F00
ref: 35
WASHER,3RD & 4TH DRIVEN
€ 3.50
36
0938027006
ref: 36
CIRCLIP
€ 2.50
37
2434118H00
ref: 37
GEAR,4TH DRIVEN(NT:30)
€ 137.00
38
2433246H00
ref: 38
BUSH,3RD DRIVEN GEAR
€ 20.00
39
0938027006
ref: 39
CIRCLIP
€ 2.50
40
2435118H00
ref: 40
GEAR,5TH DRIVEN(NT:29)
€ 135.00
41
2436118H00
ref: 41
GEAR,6TH DRIVEN(NT:30)
€ 124.00
42
0926320087
ref: 42
BEARING(20X34X13.5)
€ 31.50
43
0926106003
ref: 43
PIN(6X10)
€ 1.50
44
0926730011
ref: 44
BEARING(30X62X23.8)
€ 103.50
45
0928342018
ref: 45
SEAL,OIL(42X62X7)
€ 33.00
46
2751021A40
ref: 46
SPROCKET,ENGINE(NT:18)
€ 69.00
47
2753118H00
ref: 47
SPACER,ENGINE SPROCKET
€ 22.00
48
0915920004
ref: 48
NUT
€ 12.00
49
0916025035
ref: 49
WASHER(25X40X1.4)
€ 4.00
50
2760024F20120
ref: 50
CHAIN,DRIVE(RK50GSVZ3M)
€ 243.00
51
2762024F20
ref: 51
JOINT SET
€ 8.00
