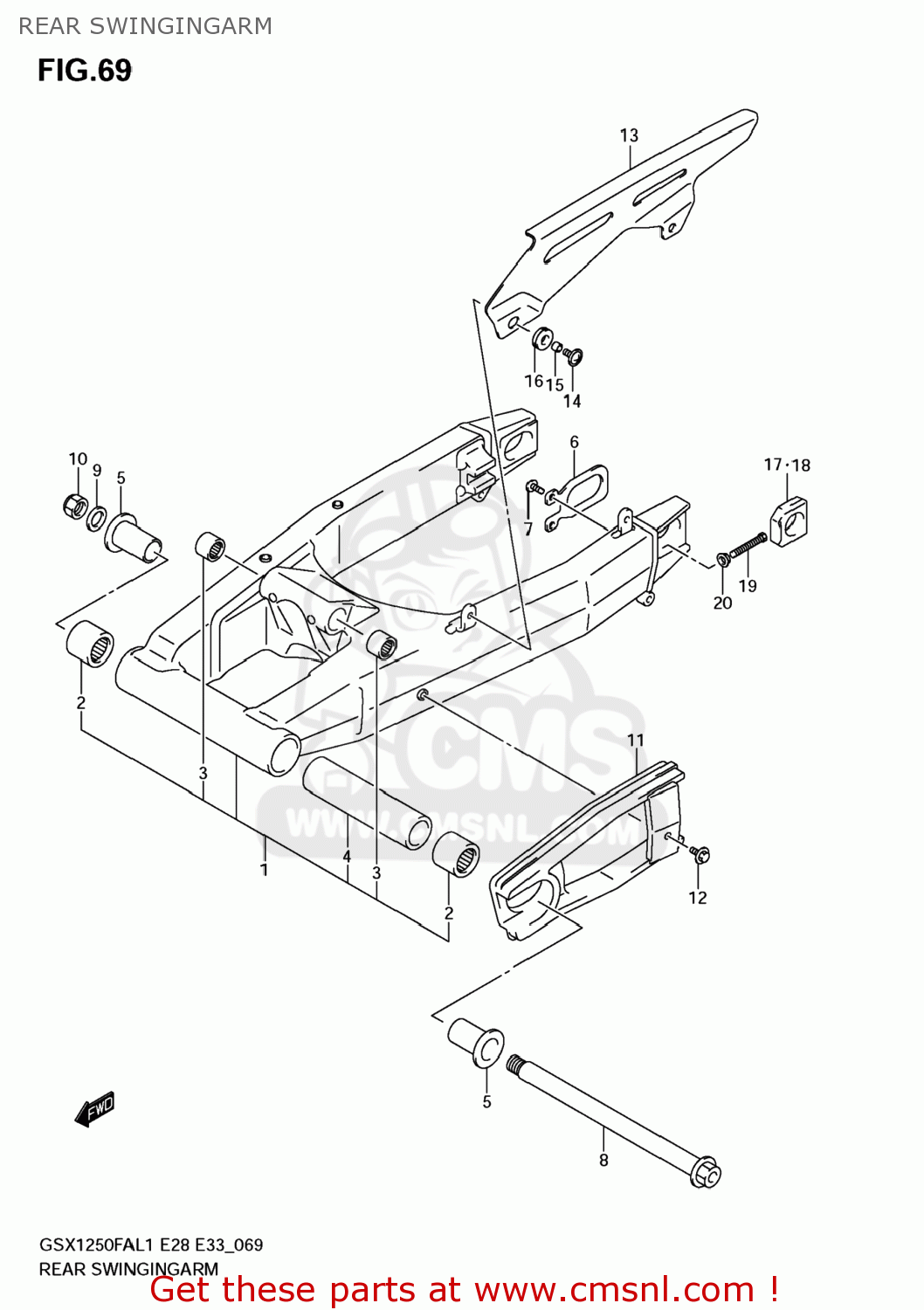

REAR SWINGINGARM

ref

part #

description

quantity

1

6100049G10YAP
ref: 1

SWINGINGARM ASSY,RR

€ 1,314.50

1

6100049G10YAP
ref: 1

SWINGINGARM ASSY,RR

€ 1,314.50

2

0926325059
ref: 2

BEARING(25X33X35)

€ 35.00

3

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

4

6128231E00
ref: 4

SPACER,RR SWGARM PIVOT CTR

€ 19.00

5

6125131E00
ref: 5

SPACER,RR SWGARM PIVOT BERRING

€ 16.00

6

6112433E00
ref: 6

PLATE,RR SWING ARM BRKT

€ 3.50

7

021420616B
ref: 7

SCREW

€ 1.50

8

6121131E00
ref: 8

SHAFT,RR SWINGINGARM PIVOT

€ 53.00

9

0916018030
ref: 9

WASHER(18.5X28X2.6)

€ 2.50

10

0915918007
ref: 10

NUT

€ 14.00

11

6127349G10
ref: 11

BUFFER,CHAIN TOUCH DEFENSE

€ 33.50

12

0911106072
ref: 12

BOLT(6X17.8)

€ 2.00

13

6131127E20
ref: 13

CASE,CHAIN

€ 172.00

14

0913606017
ref: 14

SCREW(6X16)

€ 2.50

15

0918006092
ref: 15

SPACER(6.2X8.3X6.1)

€ 4.00

16

0932008013
ref: 16

CUSHION

€ 4.00

17

6144540F20
ref: 17

ADJUSTER,CHAIN

€ 31.00

18

6144640F10
ref: 18

ADJUSTER,CHAIN

€ 31.00

19

0910008287
ref: 19

BOLT(8X50)

€ 3.00

20

083161008A
ref: 20

NUT

€ 2.50
