WATER PUMP
GSX1250FA 2011 (L1) USA (E03)

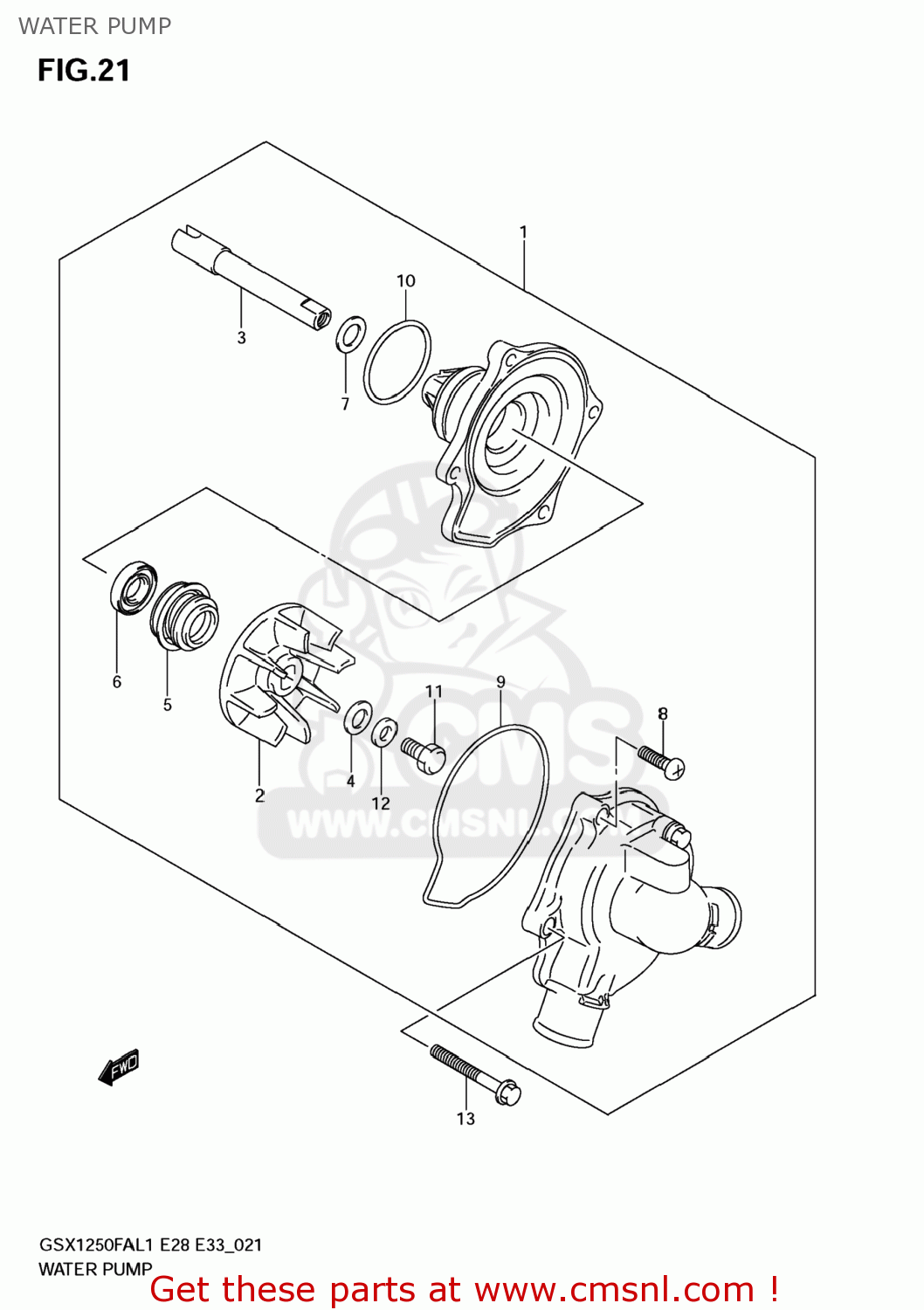

Water pump diagram GSX1250FA 2011 (L1) USA (E03)
WATER PUMP GSX1250FA 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1740018H00
ref: 1
PUMP ASSY,WATER
€ 359.00
2
1749101H00
ref: 2
IMPELLER
€ 17.00
3
1751141G00
ref: 3
SHAFT
€ 40.50
4
0916806025
ref: 4
GASKET(6X15X2.2) (NAS)
€ 3.00
5
1747002F10
ref: 5
SEAL,MECHANICAL
€ 21.50
6
1746101H00
ref: 6
SEAL,OIL
€ 15.50
7
1743207G00
ref: 7
WASHER
€ 2.00
8
021120616A
ref: 8
SCREW
€ 1.50
9
1741818H00
ref: 9
O RING
€ 14.00
10
1743533400
ref: 10
O RING,WATER PUMP HOLDER
€ 13.00
11
0910006099
ref: 11
BOLT(6X13)
€ 2.00
12
0916406006
ref: 12
WASHER
€ 2.50
13
015470635A
ref: 13
BOLT
€ 3.00
