MAGNETO
GSX1250FA 2011 (L1) USA (E03)

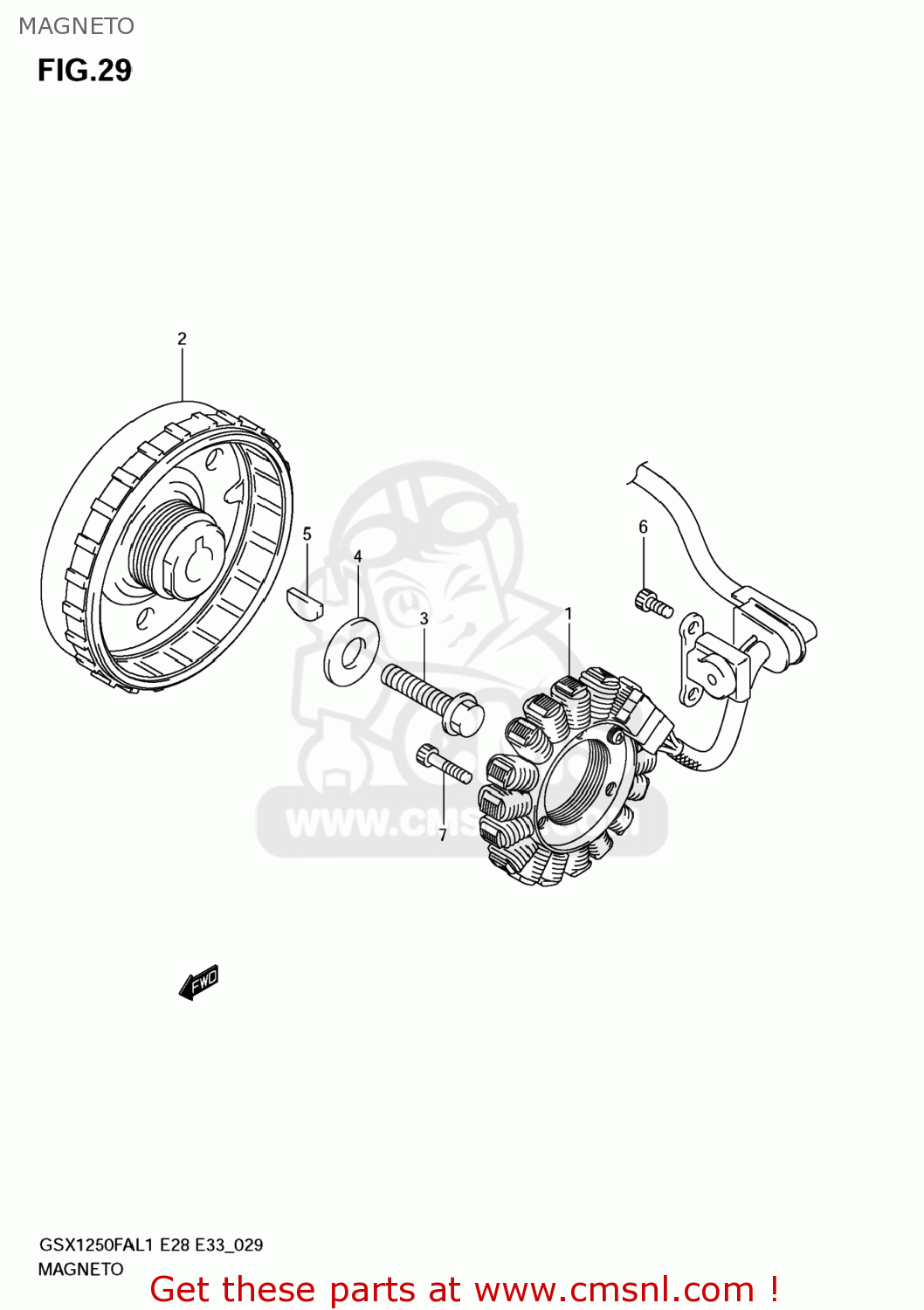

Magneto diagram GSX1250FA 2011 (L1) USA (E03)
MAGNETO GSX1250FA 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210118H00
ref: 1
STARTER ASSY
€ 464.50
2
3210218H00
ref: 2
ROTOR ASSY
€ 556.00
3
0910312004
ref: 3
BOLT(12X40)
€ 3.00
4
0916012036
ref: 4
WASHER(12X30X3)
€ 3.00
5
0942004008
ref: 5
KEY
€ 3.50
6
071300612A
ref: 6
BOLT
€ 2.50
7
071300620A
ref: 7
BOLT
€ 3.00
