HEADLAMP

GSX1250FA 2011 (L1) USA (E03)

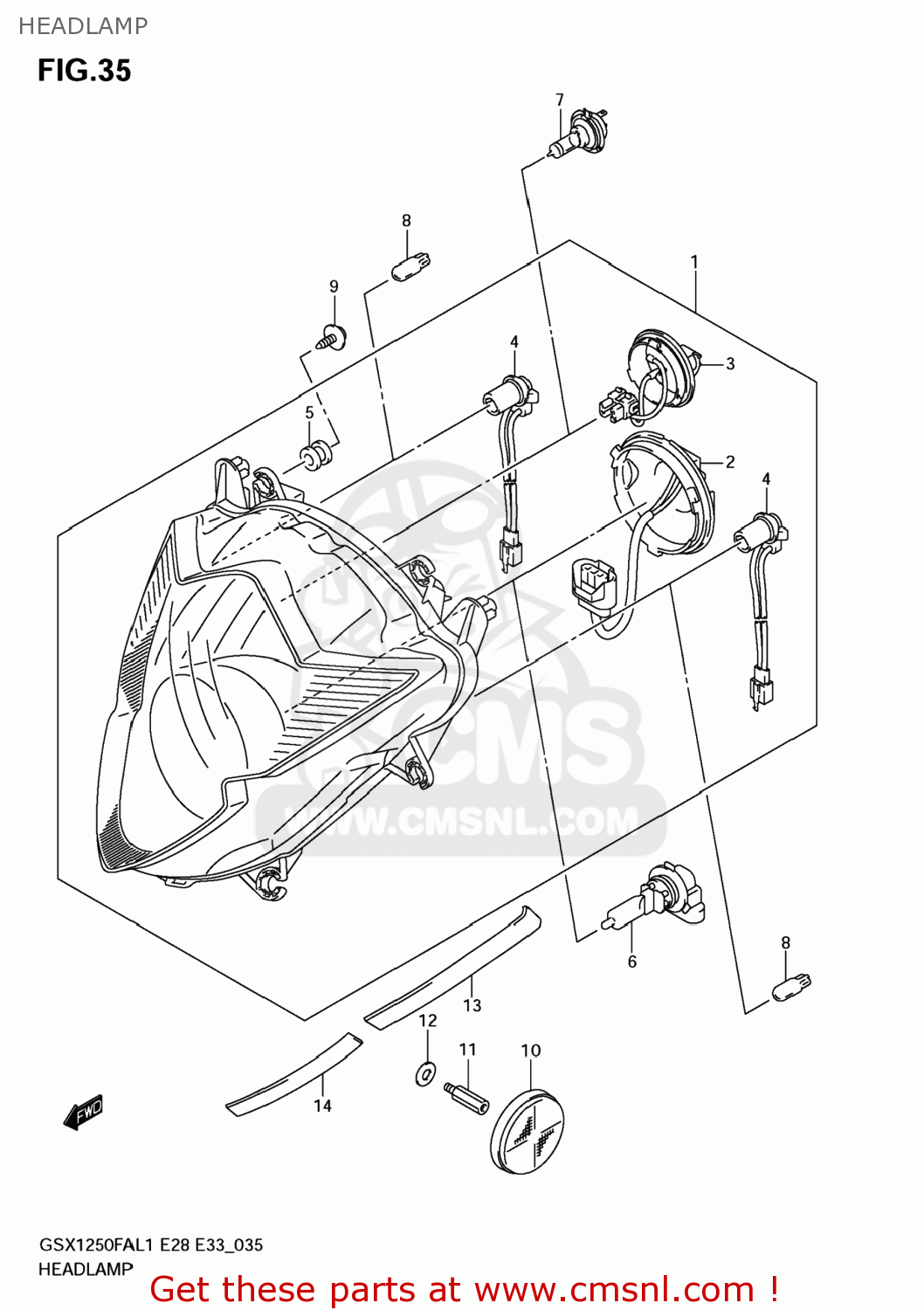

Headlamp diagram GSX1250FA 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

3510041G00999
ref: 1
35100-41G01-999

HEADLAMP ASSY

€ 515.50

3517941G30
ref: 2

BACK COVER,LWR

€ 43.00

3517941G70
ref: 3

BACK COVER,UPR

€ 34.00

3611829G50
ref: 4
36118-29G51

CORD ASSY

€ 15.00

0932009039
ref: 5

CUSHION

€ 6.00

0947112151
ref: 6

BULB(12V60W,HB3,#9005)

€ 56.50

0947112188
ref: 7

BULB(12V55W/H7/PX26D/PHILIPS)

€ 12.50

0947112216
ref: 8

BULB(12V5W)

€ 5.00

0913605062
ref: 9

SCREW(5X15)

€ 2.50

3595014A11
ref: 10

REFLEX REFLECTOR ASSY,FR SIDE

€ 11.00

0911905023
ref: 11

BOLT(5X10)

€ 7.50

083220105B
ref: 12

WASHER

€ 2.50

3365241G50
ref: 13

TAPE,HEADLAMP LENS NO.1

€ 3.00

3365241G60
ref: 14

TAPE,HEADLAMP LENS NO.2

€ 3.00
