STARTING MOTOR
GSX1250FA 2011 (L1) USA (E03)

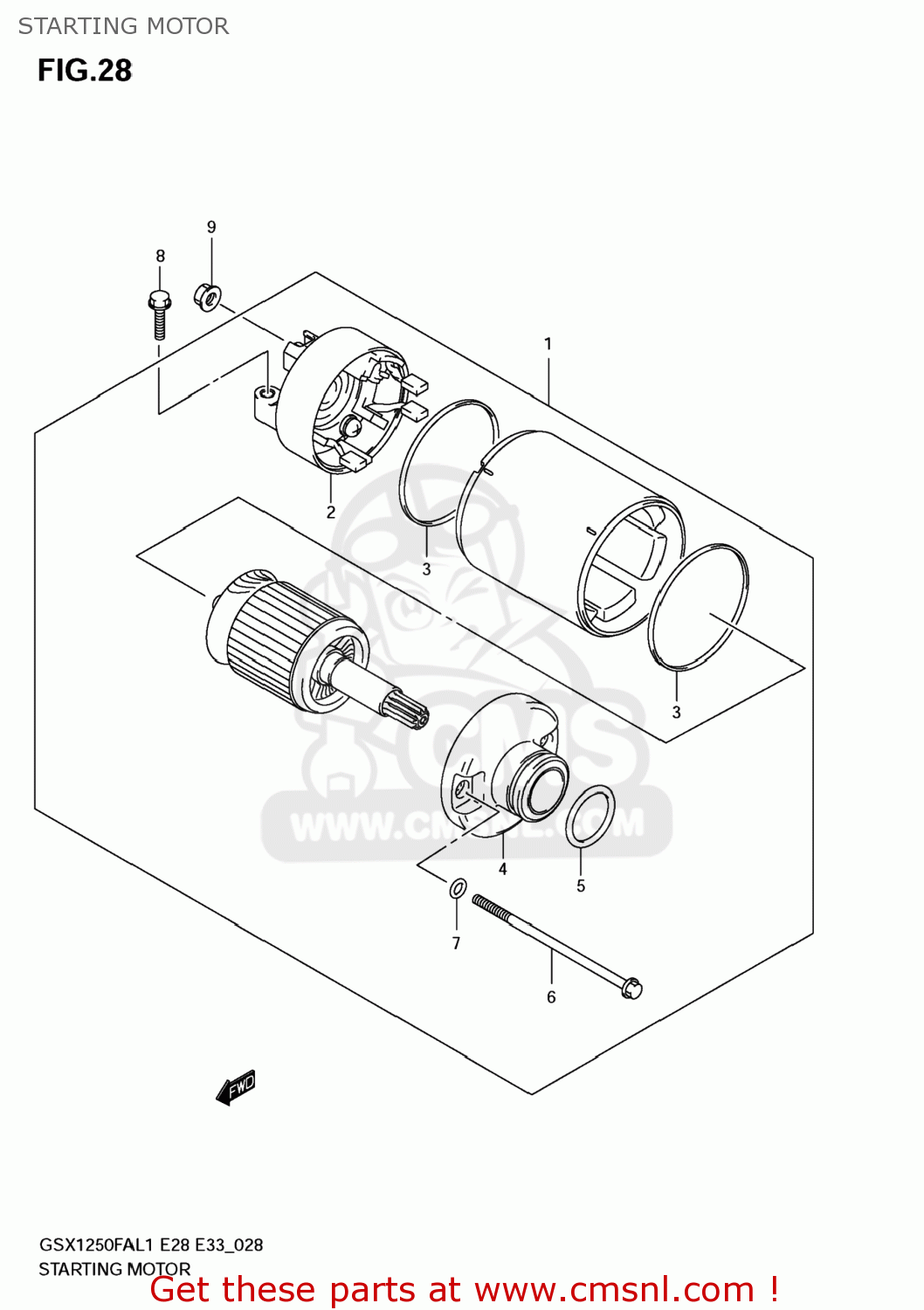

Starting motor diagram GSX1250FA 2011 (L1) USA (E03)
STARTING MOTOR GSX1250FA 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110018H00
ref: 1
31100-18H10
MOTOR ASSY,STARTING
€ 546.00
2
3117518H00
ref: 2
FRAME ASSY
€ 126.50
3
3126431300
ref: 3
31264-32E00
O RING
€ 7.50
4
3115018H00
ref: 4
HOUSING ASSY
€ 109.50
5
0928024003
ref: 5
O RING(D:3,ID:24.5)
€ 2.00
6
3128118H00
ref: 6
BOLT
€ 23.50
7
3114349040
ref: 7
O RING
€ 3.00
8
0910306212
ref: 8
BOLT(6X25)
€ 2.50
9
083613506A
ref: 9
NUT
€ 2.00
