GEAR SHIFTING
GSX1250FA 2011 (L1) USA (E03)

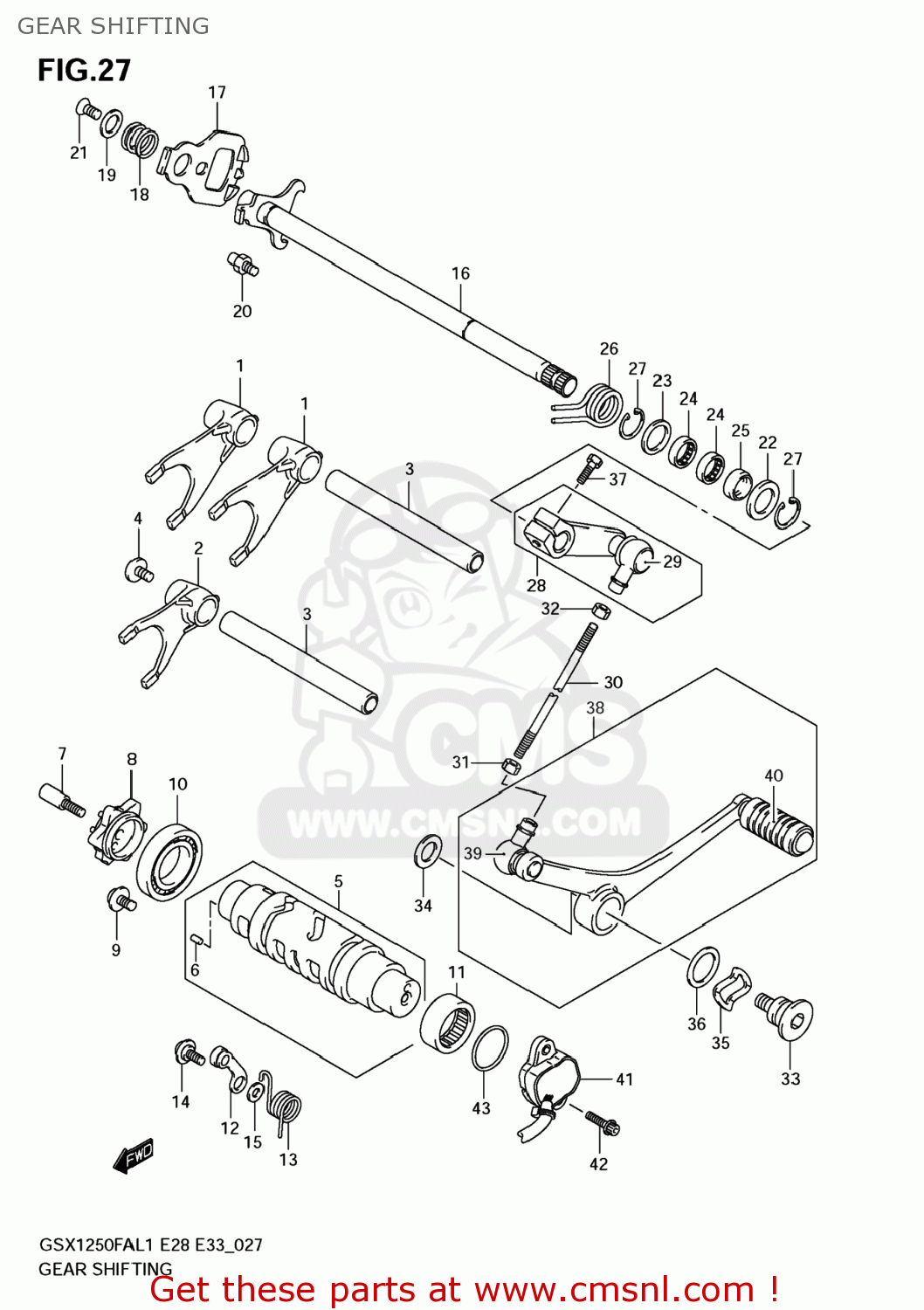

Gear shifting diagram GSX1250FA 2011 (L1) USA (E03)
GEAR SHIFTING GSX1250FA 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521101H01
ref: 1
FORK,GEAR SHIFT NO.1
€ 72.50
2
2523101H01
ref: 2
FORK,GEAR SHIFT NO.3
€ 74.00
3
2541127A00
ref: 3
SHAFT,GEAR SHIFT FORK(L:128)
€ 23.50
4
0913606147
ref: 4
SCREW(6X12)
€ 2.00
5
2531018H00
ref: 5
CAM,GEAR SHIFT
€ 178.50
6
0422104089
ref: 6
PIN
€ 1.50
7
2531242F01
ref: 7
BOLT,GEAR SHIFT CAM PLATE
€ 5.50
8
2538113E30
ref: 8
PLATE,GEAR SHIFT CAM
€ 30.00
9
0913606147
ref: 9
SCREW(6X12)
€ 2.00
10
0926225006
ref: 10
BEARING(25X47X8)
€ 24.00
11
0926325018
ref: 11
BEARING(25X32X12)
€ 17.50
12
2535006G00
ref: 12
STOPPER,SHIFT CAM
€ 19.00
13
2535546H00
ref: 13
SPRING,GEAR SHIFT CAM STOPPER
€ 3.50
14
0911106041
ref: 14
BOLT(6X14.3)
€ 3.00
15
0821106141
ref: 15
WASHER
€ 2.50
16
2551018H00
ref: 16
SHAFT,GEAR SHIFT
€ 97.00
17
2551206G10
ref: 17
PLATE,GEAR SHIFT CAM DRIVE
€ 20.00
18
2551801H00
ref: 18
SPRING,GEAR SHIFT PLATE RETURN
€ 2.00
19
2551901H00
ref: 19
WASHER,GEAR SHIFT SHAFT END
€ 3.00
20
2567101011
ref: 20
STOPPER,GEAR SHIFT ARM
€ 3.00
21
0912606014
ref: 21
SCREW(6X16)
€ 2.00
22
0916014016
ref: 22
WASHER(14X29X0.8)
€ 1.50
23
0918114195
ref: 23
SHIM(14X24X1)
€ 1.50
24
0926314027
ref: 24
BEARING(14X20X12)
€ 11.00
25
0928314005
ref: 25
SEAL,OIL(14X22X7.3)
€ 6.50
26
0944420001
ref: 26
SPRING
€ 5.00
27
083313114A
ref: 27
CIRCLIP
€ 2.00
28
2552018H00
ref: 28
ARM,GEAR SHIFT LINK
€ 51.00
29
2552647000
ref: 29
COVER,DUST
€ 3.50
30
2552505A10
ref: 30
ROD,GEAR SHIFT LINK
€ 12.00
31
0914006025
ref: 31
NUT
€ 2.00
32
0831000067
ref: 32
NUT
€ 2.50
33
2561718H00
ref: 33
BOLT,GEAR SHIFT LEVER
€ 25.00
34
0916010149
ref: 34
WASHER(10X28X2.3)
€ 6.50
35
0916418011
ref: 35
WASHER
€ 2.50
36
0918118007
ref: 36
SHIM(18X26X0.8)
€ 3.00
37
015000620A
ref: 37
BOLT
€ 2.00
38
2560018H00
ref: 38
LEVER ASSY,GEAR SHIFT
€ 68.00
39
2552647000
ref: 39
COVER,DUST
€ 3.50
40
2565220C00
ref: 40
RUBBER,GEAR SHIFT PEDAL
€ 8.00
41
3773018H01
ref: 41
SENSOR ASSY,GE
€ 126.00
42
0910605023
ref: 42
BOLT(5X16)
€ 2.50
43
0928026005
ref: 43
O RING(D:2.4,ID:26.2)
€ 2.50
