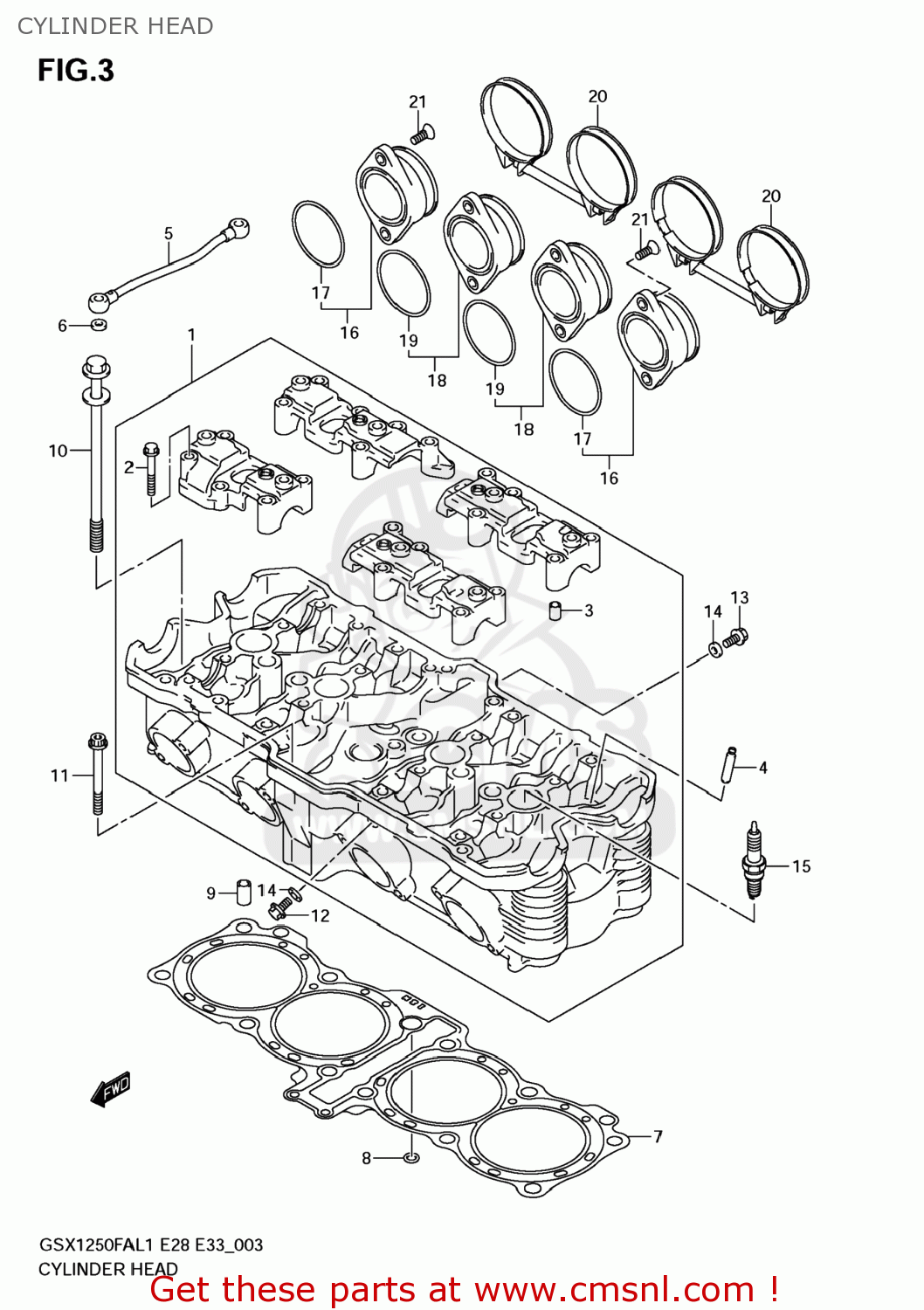

CYLINDER HEAD

ref

part #

description

quantity

1

1110018H10
ref: 1

HEAD ASSY,CYLINDER

€ 2,691.00

2

0910306293
ref: 2

BOLT(6X45)

€ 2.00

3

0920608001
ref: 3

PIN(6.2X8X11)

€ 2.00

4

1111517E70
ref: 4

GUIDE,VALVE

€ 23.00

5

1113118H00
ref: 5

PIPE,CYLINDER HEAD OIL

€ 55.00

6

083220106B
ref: 6

WASHER

€ 2.00

7

1114118H00
ref: 7

GASKET,CYLINDER HEAD (NAS)

€ 84.50

8

1114332F00
ref: 8

O RING,HEAD GASKET

€ 6.00

9

0421111169
ref: 9

PIN

€ 2.00

10

1111718H00
ref: 10

BOLT,CYLINDER HEAD(L:175)

€ 17.00

11

071200665B
ref: 11

BOLT

€ 3.00

12

015500612A
ref: 12

BOLT

€ 2.50

13

071200612B
ref: 13

BOLT

€ 3.50

14

0916806023
ref: 14

GASKET(5.8X13X1.2) (NAS)

€ 2.00

15-1

0948200516
ref: 15-1

PLUG,SPARK(CR7E)

€ 8.50

15-2

0948200515
ref: 15-2

PLUG,SPARK(U22ESR-N)

€ 8.50

15-3

0948200528
ref: 15-3

PLUG,SPARK(CR6E)

€ 9.50

15-4

0948200456
ref: 15-4

PLUG,SPARK(CR8E)

€ 7.00

15-5

0948200529
ref: 15-5

PLUG,SPARK(U20ESR-N)

€ 9.50

15-6

0948200457
ref: 15-6

PLUG,SPARK(U24ESR-N)

€ 7.00

16

1310118H00
ref: 16

PIPE ASSY,INTAKE NO.1

€ 49.00

17

0928042003
ref: 17

O RING(D:2.4,ID:41.7)

€ 8.50

18

1310218H00
ref: 18
13102-18H01

PIPE ASSY,INTA

€ 49.00

19

0928042003
ref: 19

O RING(D:2.4,ID:41.7)

€ 8.50

20

1317018H10
ref: 20

CLAMP,INTAKE PIPE

€ 26.50

21

021220616B
ref: 21

SCREW

€ 2.00
