CARBURETOR

GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

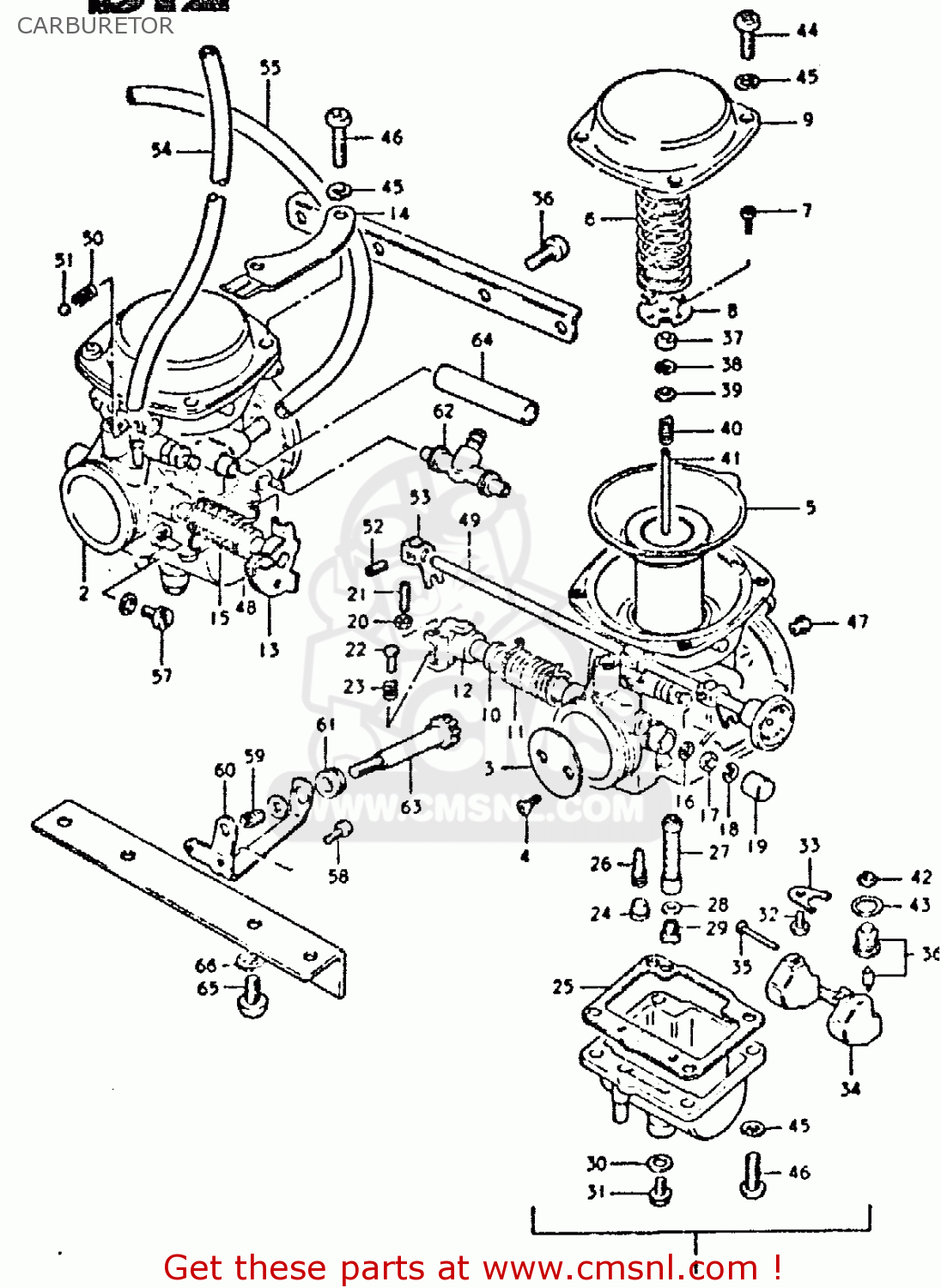

Carburetor diagram GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

CARBURETOR GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)
CARBURETOR GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)
CARBURETOR GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)
prices are in EUR
ref
part #
description
quantity
0
1320044202
ref: 0
FROM 13200-44201
CARBURETOR ASSY
€ 0.00
0
NOTUSED
ref: 0
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-1
1320144201
ref: 1-1
LH, TO 13201-44202
CARBURETOR, LH
€ 0.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2-1
1320244201
ref: 2-1
RH, TO 13202-44202
CARBURETOR, RH
€ 248.50
2-2
NOTUSED
ref: 2-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
1355144080
ref: 3
VALVE, THROTTLE (135)
1355144080
€ 29.00
4
1360444080
ref: 4
SCREW
1360444080
€ 3.50
5
1360044200
ref: 5
DIAPHRAGM
€ 0.00
6
1350344200
ref: 6
SPRING
1350344200
€ 5.50
7
0211203088
ref: 7
SCREW
€ 1.50
8
1358144200
ref: 8
PLATE
€ 0.00
9
1350244080
ref: 9
COVER,DIAPHRAGM
€ 24.50
10
1338744200
ref: 10
LH
SPACER,THROTTLE SHAFT
€ 0.00
11
1357344200
ref: 11
LH
SPRING
€ 0.00
12-1
1355044210
ref: 12-1
LH, MARK:44201
SHAFT ASSEMBLY
€ 0.00
12-2
1355044200
ref: 12-2
LH, MARK:44202
SHAFT
€ 0.00
13
1355044220
ref: 13
RH
SHAFT,THROTTLE
€ 0.00
14
1362144200
ref: 14
RH
BRACKET
€ 0.00
15
1357344210
ref: 15
RH
SPRING
€ 0.00
16
1365151010
ref: 16
SEAL
1365151010
€ 4.00
17
1355747070
ref: 17
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
18
1361744080
ref: 18
E RING
1361744080
€ 3.50
19
1357847070
ref: 19
CAP
1357847070
€ 5.50
20
1360747070
ref: 20
LH
NUT
1360747070
€ 4.00
21
1360547070
ref: 21
LH
SCREW
1360547070
€ 5.50
22
1356344110
ref: 22
LH
PIN,THROTTLE LEVER
€ 0.00
23
1326844110
ref: 23
LH
SPRING,THROTTLE SCREW
€ 0.00
24
1335744080
ref: 24
PLUG,NEEDLE JET
1335744080
€ 4.50
25
1325144080
ref: 25
GASKET,FLOAT CHAMBER (NAS)
1325144080
€ 9.50
26
0949242005
ref: 26
JET, PILOT (42.5)
€ 8.50
27-1
0949400312
ref: 27-1
JET,NEEDLE(P-1)
0949400312
€ 24.00
27-2
NOTUSED
ref: 27-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
28
1333244080
ref: 28
WASHER,NEEDLE NOZZLE
€ 2.50
29
0949123004
ref: 29
JET
€ 11.00
30
1324644080
ref: 30
GASKET (NAS)
1324644080
€ 3.50
31
1324744080
ref: 31
PLUG,DRAIN
1324744080
€ 9.50
32
0211204068
ref: 32
SCREW 4X6
0211204068
€ 2.00
33
1337339110
ref: 33
PLATE
1337339110
€ 6.50
34
1325044080
ref: 34
FLOAT
1325044080
€ 31.00
35
1325492311
ref: 35
PIN,FLOAT
1325492311
€ 2.00
36
1337044080
ref: 36
VALVE ASSEMBLY,NEEDLE
€ 40.50
37
1338747010
ref: 37
RING
1338747010
€ 7.50
38
1339410010
ref: 38
CLIP
1339410010
€ 4.50
39
1325420010
ref: 39
PIN,FLOAT
1325420010
€ 3.00
40
1338847010
ref: 40
SPRING
1338847010
€ 7.00
41
1338344200
ref: 41
NEEDLE,JET
1338344200
€ 16.00
42
1337644080
ref: 42
FILTER
1337644080
€ 6.50
43
1337444080
ref: 43
O-RING,NEEDLE VALVE
1337444080
€ 6.00
44
0211105158
ref: 44
SCREW
0211105158
€ 2.50
45
0832121058
ref: 45
LOCK WASHER
0832121058
€ 2.00
46
0211205168
ref: 46
SCREW
0211205168
€ 2.50
47
0949325001
ref: 47
JET,AIR(125)
€ 11.50
48
1338744210
ref: 48
RH
SPACER,THROTTLE SHAFT
€ 0.00
49
1355044200
ref: 49
SHAFT
€ 0.00
50
1343443010
ref: 50
SPRING
1343443010
€ 6.50
51
1359693010
ref: 51
BALL,CARBURETOR
1359693010
€ 3.50
52
1360547070
ref: 52
SCREW
1360547070
€ 5.50
53
1342244080
ref: 53
LEVER
1342244080
€ 10.00
54
1368718656
ref: 54
HOSE
1368718656
€ 14.00
55
1368744200
ref: 55
HOSE
€ 13.00
56
0211205128
ref: 56
SCREW
€ 2.50
57
1360544200
ref: 57
SCREW
€ 0.00
58
0211205088
ref: 58
SCREW
0211205088
€ 2.00
59-1
1327193011
ref: 59-1
MARK:44201
SPRING
1327193011
€ 4.50
59-2
1327144220
ref: 59-2
MARK:44202
SPRING,THROTTLE ADJUST
€ 3.50
60
1362144210
ref: 60
BRACKET,THROTTLE ADJUST
€ 0.00
61
1368116601
ref: 61
CAP
1368116601
€ 7.00
62
1368511400
ref: 62
NIPPLE,CARBURETOR
€ 19.50
63
1326747070
ref: 63
SCREW
1326747070
€ 21.00
64
1368744210
ref: 64
HOSE
€ 13.00
65
0211206128
ref: 65
SCREW 6X12
0211206128
€ 2.00
66
0832121068
ref: 66
LOCK WASHER
0832121068
€ 2.50
