REAR COMBINATION LAMP

GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

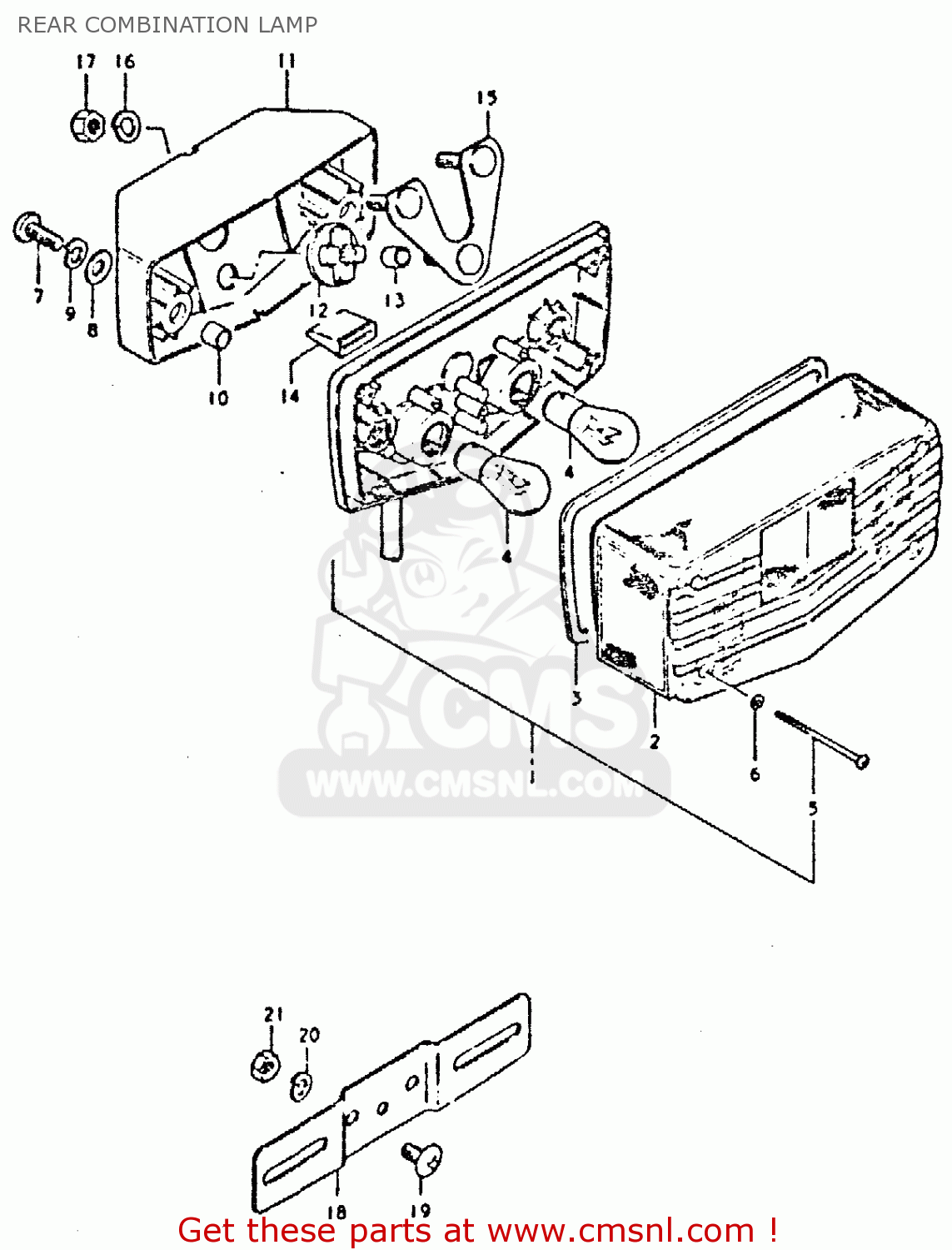

Rear combination lamp diagram GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

REAR COMBINATION LAMP GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

REAR COMBINATION LAMP GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

prices are in EUR

ref

part #

description

quantity

1-1

3572044180
ref: 1-1
MODEL T

LAMP UNIT, TAIL

€ 133.50

1-2

3572011480
ref: 1-2
MODEL X

LAMP UNIT, TAIL

€ 149.00

2-1

3571244180
ref: 2-1
MODEL T

LENS

€ 58.50

2-2

3571244181
ref: 2-2
MODEL X

LENS

€ 58.50

3

3571344130
ref: 3

GASKET,REAR COMBINATION LAMP LENS (NAS)

€ 6.50

4

0947112057
ref: 4

BULB 12V21/5W

€ 6.00

5

3572344130
ref: 5

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0211206208
ref: 7

SCREW

€ 2.00

8

0832221068
ref: 8

WASHER

€ 2.00

9

0832121068
ref: 9

LOCK WASHER

€ 2.50

10

3576644130
ref: 10

SPACER,REAR COMBINATION LAMP

€ 0.00

11

3573044130
ref: 11

BRACKET UNIT,TAIL LAMP

€ 37.00

12

3576544130
ref: 12

CUSHION,REAR COMBINATION LAMP

€ 6.50

13

3576744130
ref: 13

SPACER,REAR COMBINATION LAMP

€ 2.00

14

3576444130
ref: 14

CUSHION,REAR COMBINATION LAMP

€ 3.00

15

3572744130
ref: 15

PLATE,REAR COMBINATION LAMP

€ 6.00

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

0831011068
ref: 17

NUT

€ 2.50

18

3592744110
ref: 18

PLATE,RR LICENSE

€ 22.50

19

0214206167
ref: 19

SCREW

€ 2.00

20

0832121068
ref: 20

LOCK WASHER

€ 2.50

21

0831011068
ref: 21

NUT

€ 2.50
