HANDLEBAR (GSX400ST, GSX400SX)

GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

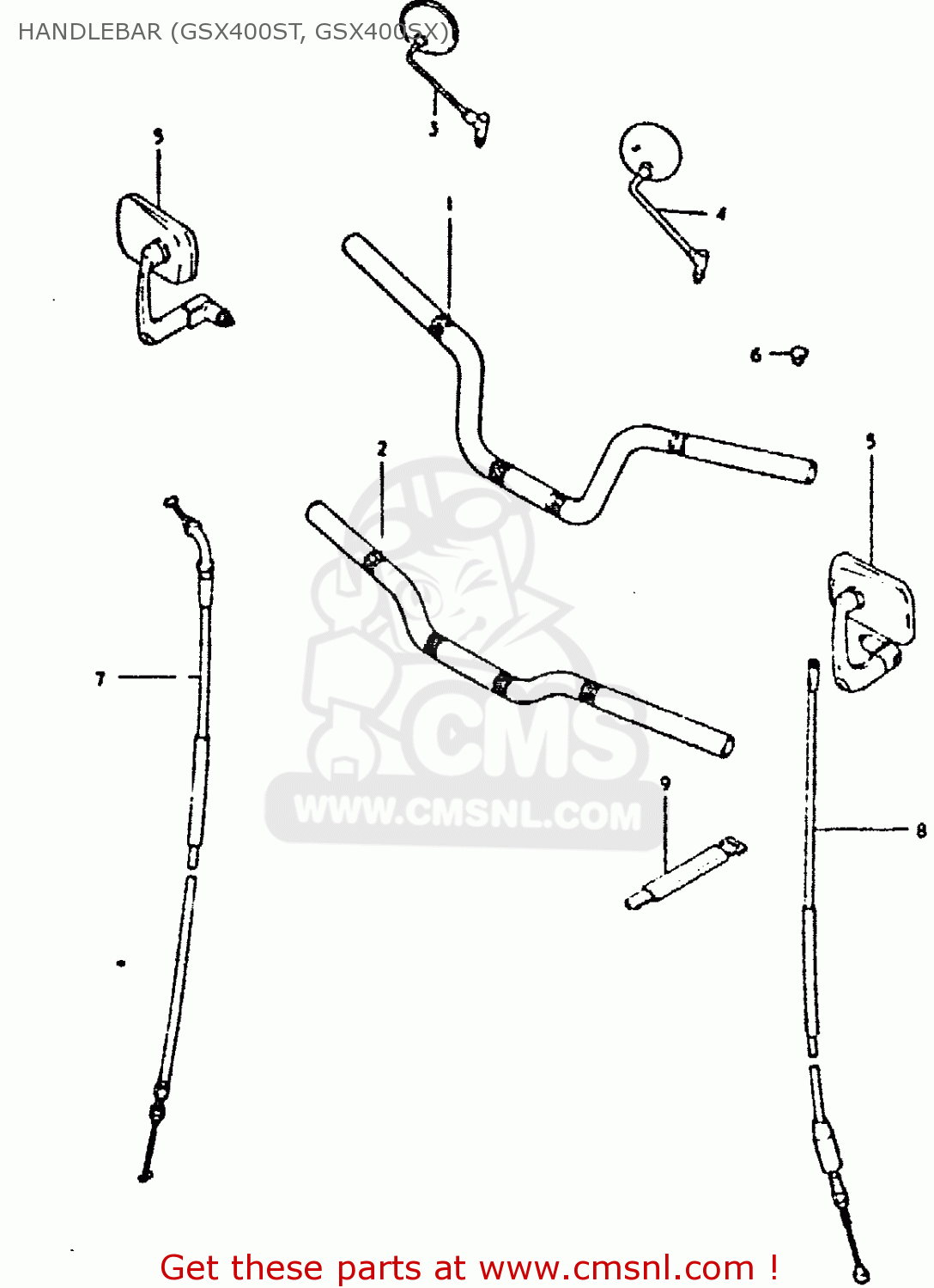

Handlebar (gsx400st, gsx400sx) diagram GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

HANDLEBAR (GSX400ST, GSX400SX) GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)
HANDLEBAR (GSX400ST, GSX400SX) GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)
HANDLEBAR (GSX400ST, GSX400SX) GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)
prices are in EUR
ref
part #
description
quantity
1-1
5611044120
ref: 1-1
HANDLEBAR
€ 52.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2-1
5611044130
ref: 2-1
HANDLEBAR
€ 61.00
2-2
NOTUSED
ref: 2-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
5650045650
ref: 3
MIRROR ASSY,RR VIEW
5650045650
€ 35.00
4-1
NOTUSED
ref: 4-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
4-2
NOTUSED
ref: 4-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
5
NOTUSED
ref: 5
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
6
NOTUSED
ref: 6
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7-1
5820044100
ref: 7-1
CABLE ASSY,CLUTCH
5820044100
€ 41.50
7-2
5820044110
ref: 7-2
CABLE ASSEMBLY,CLUTCH
€ 41.50
8-1
5830044100
ref: 8-1
CABLE ASSEMBLY,THROTTLE
5830044100
€ 23.50
8-2
5830044110
ref: 8-2
CABLE ASSEMBLY,THROTTLE
5830044110
€ 25.00
9
0940718301
ref: 9
CLAMP
0940718301
€ 6.00
up
