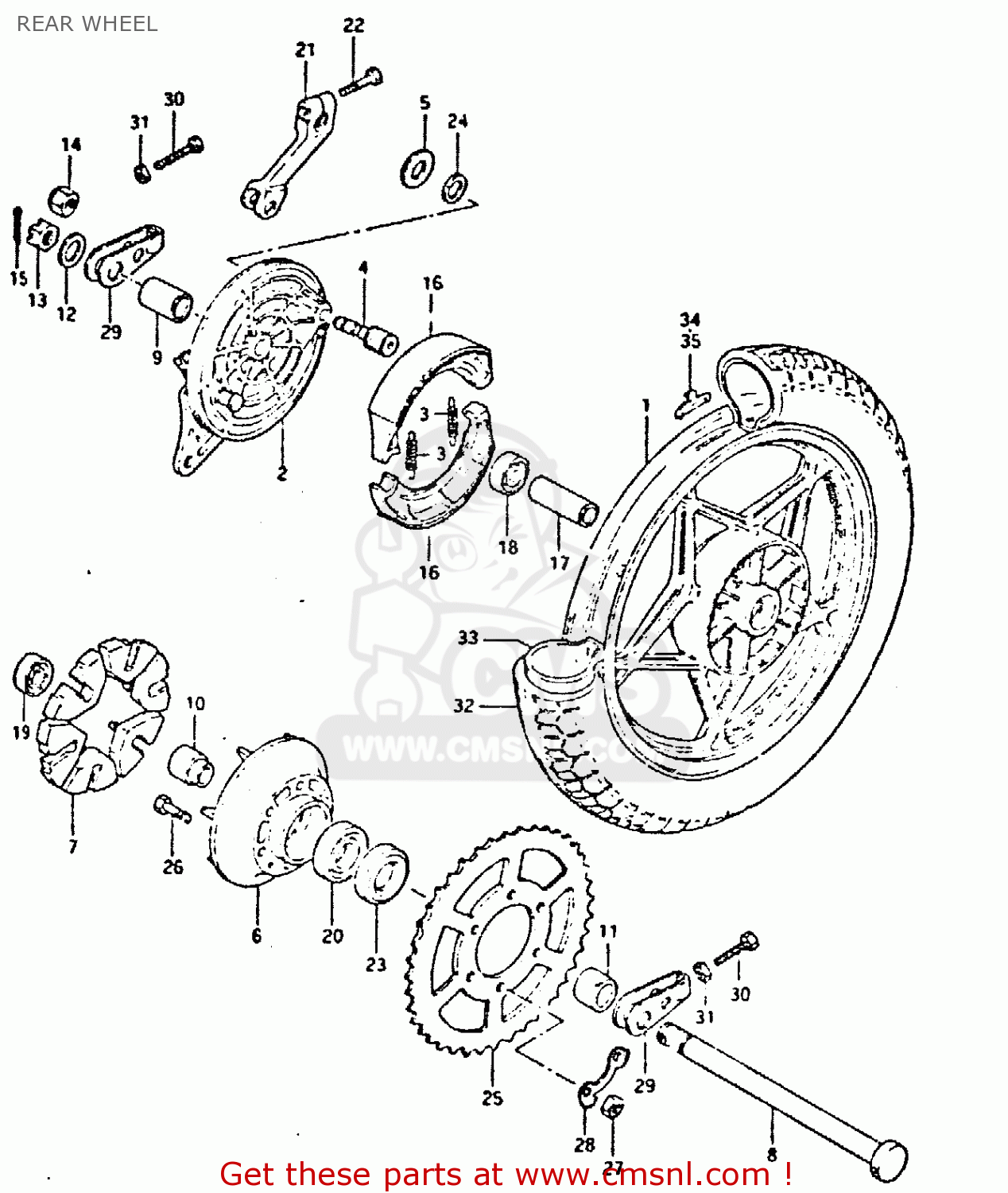

REAR WHEEL

ref

part #

description

quantity

1-1

6415044000
ref: 1-1

WHEEL,REAR

€ 600.50

1-2

6415044020
ref: 1-2
GSX400ST, SX:E2, E4,

WHEEL,REAR

€ 192.00

2

6421044060
ref: 2

PANEL,REAR HUB

€ 111.50

3

5542030000
ref: 3

SPRING,BRAKE SHOE

€ 3.50

4

5444008003
ref: 4

CAM,FRONT BRAKE

€ 19.00

5

0916015001
ref: 5

WASHER (15X24X1.6)

€ 2.50

6

6461144001
ref: 6

DRUM,REAR SPROCKET MOUNT

€ 84.00

7

6465111300
ref: 7

ABSORBER,RR HUB SHOCK

€ 12.50

8

6471133000
ref: 8

AXLE,REAR

€ 33.50

9

0918017043
ref: 9

SPACER(17.5X28X44.8)

€ 7.00

10

6473333000
ref: 10

SPACER,REAR HUB BEARING

€ 20.00

11

0918017042
ref: 11

SPACER(17X30.5X22.3)

€ 8.50

12

0916017013
ref: 12

WASHER (17X30X3.2)

€ 2.00

13

0914116001
ref: 13

NUT

€ 6.50

14

NOTUSED
ref: 14

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

15

0411140308
ref: 15

PIN,COTTER

€ 1.50

16

6441011301
ref: 16

SHOE,BRAKE

€ 29.50

17

0918017056
ref: 17

SPACER (17.6X24X57)

€ 19.00

18

0814363037
ref: 18

BEARING

€ 23.00

19

0814362037
ref: 19

BEARING

€ 18.50

20

0811362057
ref: 20

BEARING

€ 18.00

21

6445144001
ref: 21

LEVER,RR BRAKE CAM

€ 111.00

22

0110706258
ref: 22

BOLT

€ 2.00

23

0928530001
ref: 23

SEAL,OIL(30.5X52X8)

€ 20.00

24

0928015001
ref: 24

O-RING,BOSS

€ 2.00

25

6451133770
ref: 25

SPROCKET,REAR (NT:44)

€ 52.00

26

0911910002
ref: 26

BOLT

€ 3.50

27

0831011108
ref: 27

NUT

€ 2.50

28

0916910006
ref: 28

WASHER

€ 4.50

29

6141044200
ref: 29

ADJUSTER,CHAIN

€ 31.00

30

0910408006
ref: 30

BOLT

€ 3.00

31

0831012088
ref: 31

NUT

€ 2.00

32-1

6510044111
ref: 32-1
IRC

TIRE,RR(3.50S18)

€ 0.00

32-2

6510044130
ref: 32-2
BS

TIRE

€ 0.00

32-3

NOTUSED
ref: 32-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

33-1

6520018010
ref: 33-1

TUBE ASSEMBLY,WHEEL,INNER

€ 35.00

33-2

NOTUSED
ref: 33-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

34

5541147C01
ref: 34

BALANCER, NO. 1

€ 0.00

35

5541247001
ref: 35

BALANCER,WHEEL

€ 3.50
