CYLINDER HEAD COVER

GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

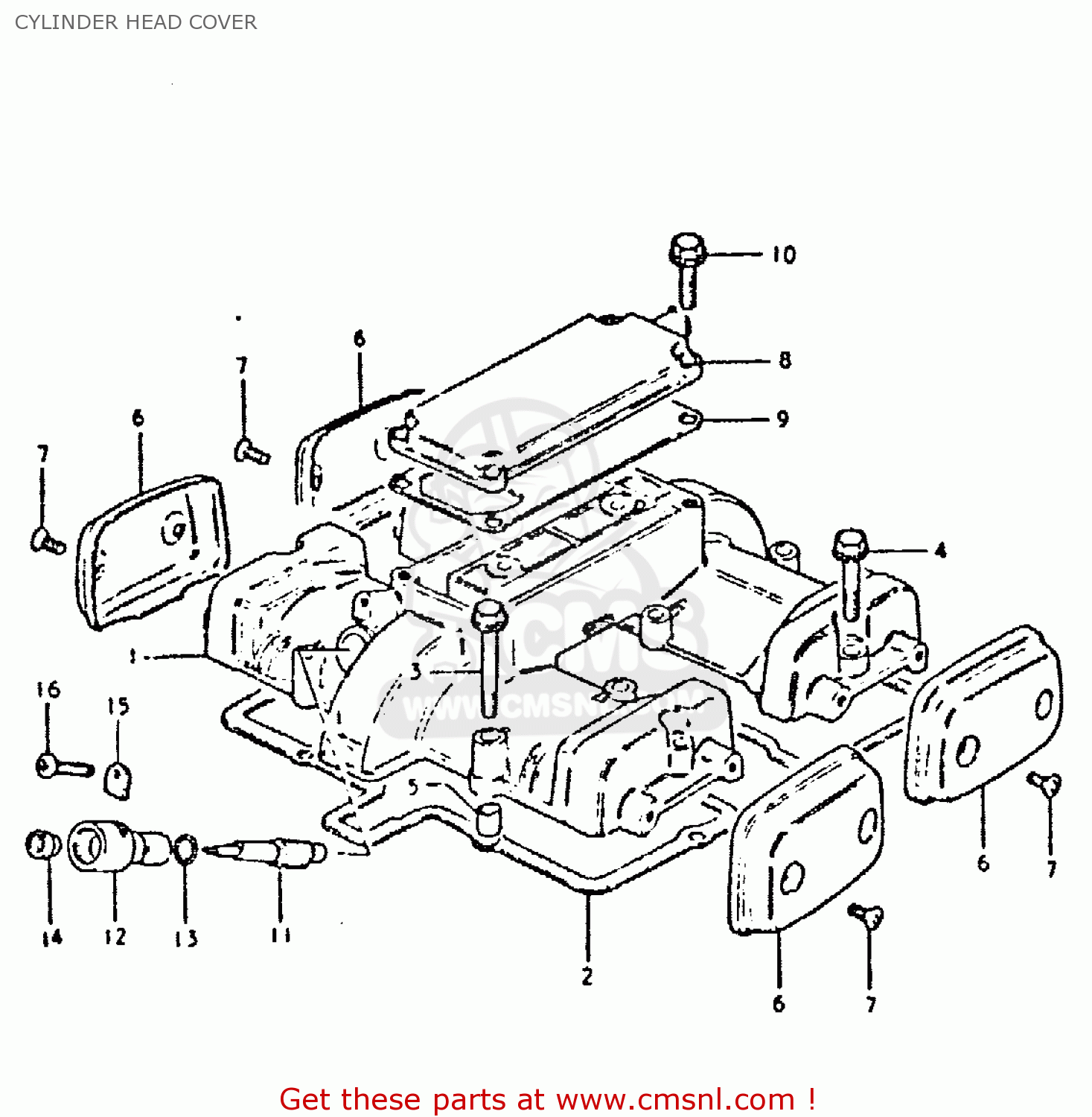

Cylinder head cover diagram GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

CYLINDER HEAD COVER GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

CYLINDER HEAD COVER GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

prices are in EUR

ref

part #

description

quantity

1

1117144201
ref: 1

COVER, CYLINDER HEAD

€ 0.00

2

1117344202
ref: 2
FROM 11173-44201

GASKET (MCA)

€ 31.00

3

0151706358
ref: 3

BOLT 6X35

€ 2.50

4

0151706308
ref: 4

BOLT

€ 2.00

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6-1

1117449201
ref: 6-1
MODEL T, TO 11190-11

CAP,CYLINDER HEAD COVER

€ 28.50

6-2

1117449210
ref: 6-2
MODEL X

CAP,CYLINDER HEAD COVER

€ 28.50

7

0213205127
ref: 7

SCREW 5X12

€ 2.50

8

1117645400
ref: 8

COVER,BREATHER

€ 24.50

9

1117745400
ref: 9

GASKET (MCA)

€ 19.00

10

0151706208
ref: 10

BOLT,REAR

€ 2.50

11

2643147002
ref: 11

GEAR,TACHOMETER DRIVEN

€ 29.00

12

2644145000
ref: 12

SLEEVE,TACHOMETER DRIVE

€ 18.00

13

2645145000A
ref: 13

SEAL,TACHOMETER DRIVEN

€ 4.50

14

0928905002
ref: 14

SEAL,OIL(5X12X8)

€ 11.00

15

2644933000
ref: 15

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50

16

0912805101
ref: 16

SCREW(5X12)

€ 1.50
