FRAME COVER (GSX400SX)

GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

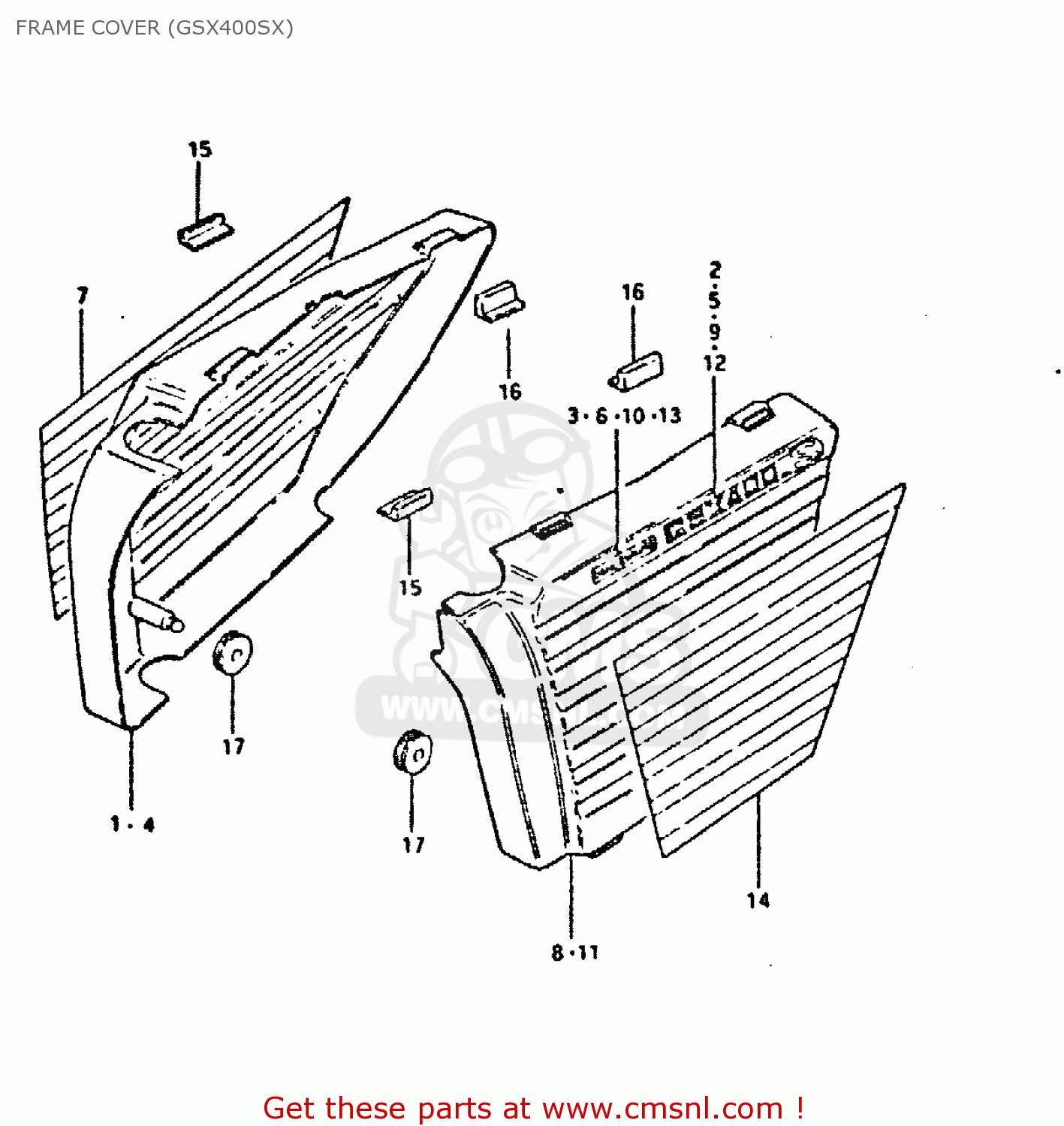

Frame cover (gsx400sx) diagram GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

FRAME COVER (GSX400SX) GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

FRAME COVER (GSX400SX) GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

prices are in EUR

ref

part #

description

quantity

1

4711144100019
ref: 1

COVER,FRAME,RIGHT

€ 40.00

2

681314415070Z
ref: 2

EMBLEM, "GSX400S"

€ 0.00

3

6813244110064
ref: 3

EMBLEM (WHITE)

€ 3.50

4

471114410010V
ref: 4

COVER, FRAME RH (WHITE)

€ 40.00

5

681314415065H
ref: 5

EMBLEM, "GSX400S"

€ 0.00

6

6813244110019
ref: 6

EMBLEM (BLACK)

€ 4.50

7

6813044100
ref: 7

TAPE SET, RH

€ 14.00

8

4721144100019
ref: 8

COVER,FRAME,LEFT

€ 44.00

9

681314415070Z
ref: 9

EMBLEM, "GSX400S"

€ 0.00

10

6813244110064
ref: 10

EMBLEM (WHITE)

€ 3.50

11

472114410010V
ref: 11

COVER, FRAME LH (WHITE)

€ 44.00

12

681314415065H
ref: 12

EMBLEM, "GSX400S"

€ 0.00

13

6813244110019
ref: 13

EMBLEM (BLACK)

€ 4.50

14

6814044100
ref: 14

TAPE SET

€ 12.00

15

4711745000
ref: 15

CUSHION,FRAME COVER

€ 1.50

16

4711702400
ref: 16

CUSHION,FRAME COVER

€ 2.00

17

0932008018
ref: 17

CUSHION

€ 4.00
