FRONT MASTER CYLINDER

GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

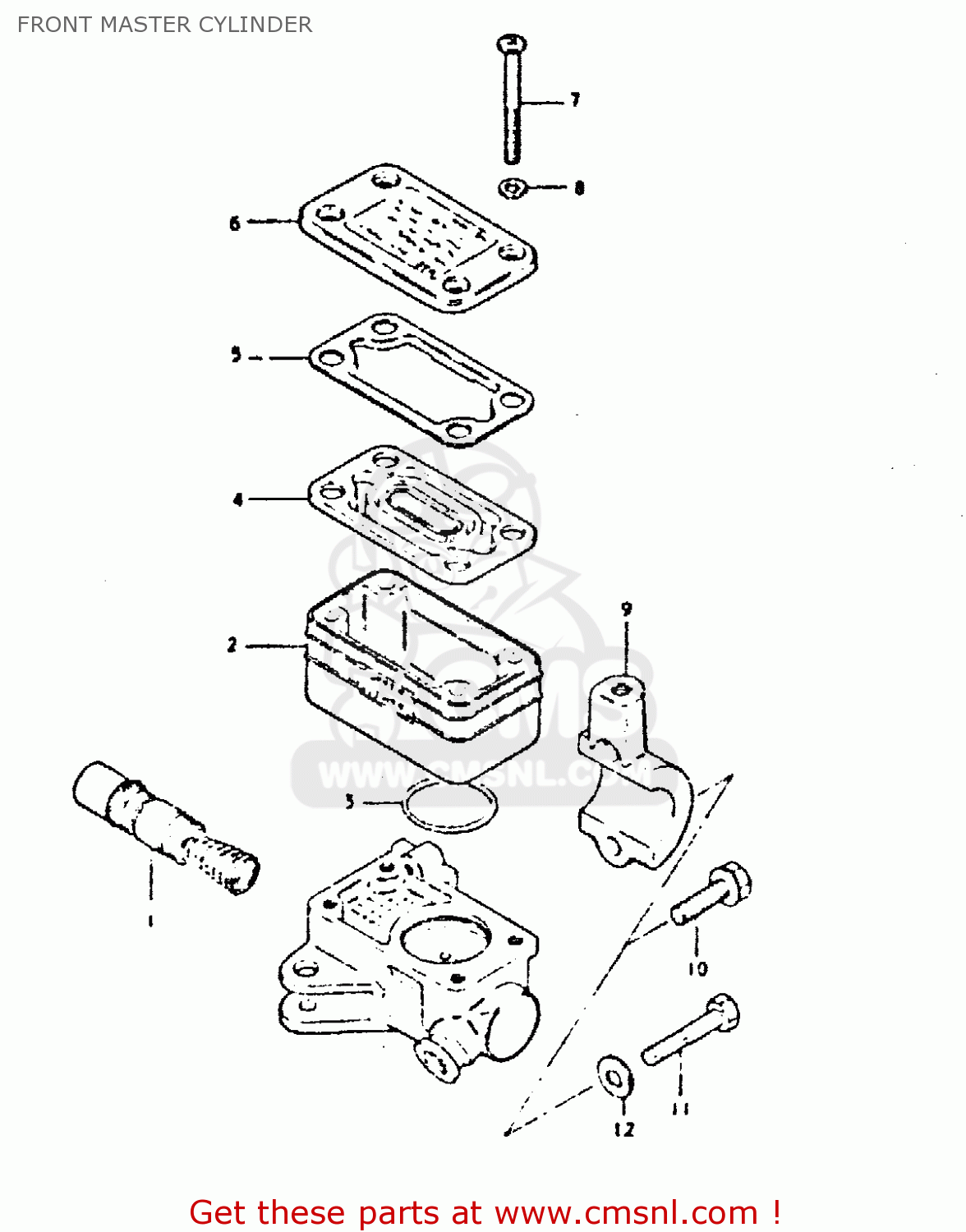

Front master cylinder diagram GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

FRONT MASTER CYLINDER GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

FRONT MASTER CYLINDER GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

prices are in EUR

ref

part #

description

quantity

0

5960045210
ref: 0

CYLINDER ASSY, MASTER

€ 188.00

1-1

5960045840
ref: 1-1
GSX400ET/ST

CUP SET,MASTER CYLINDER

€ 41.50

1-2

5960045841
ref: 1-2
GSX400EX/SX

PISTON & CUP SET

€ 41.50

2

5968745100
ref: 2

RESERVOIR

€ 20.50

3

5968645100
ref: 3

O RING

€ 9.50

4

5986745100
ref: 4

DIAPHRAGM

€ 0.00

5-1

5966845100
ref: 5-1
GSX400ET/ST

PLATE,DIAPHRAGM

€ 14.50

5-2

5966845101
ref: 5-2
GSX400EX/SX

PLATE,DIAPHRAGM

€ 14.50

6

5966945100
ref: 6

CAP

€ 27.50

7

5969145100
ref: 7

SCREW

€ 3.00

8

5969245100
ref: 8

WASHER

€ 3.00

9

5967145100
ref: 9

HOLDER

€ 17.50

10

5969345100
ref: 10
GSX400ET/ST

BOLT,MASTER CYLINDER H

€ 2.00

11

0110706258
ref: 11
GSX400EX/SX

BOLT

€ 2.00

12

0832221068
ref: 12
GSX400EX/SX

WASHER

€ 2.00
