SEAT (GSX400ET)

GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

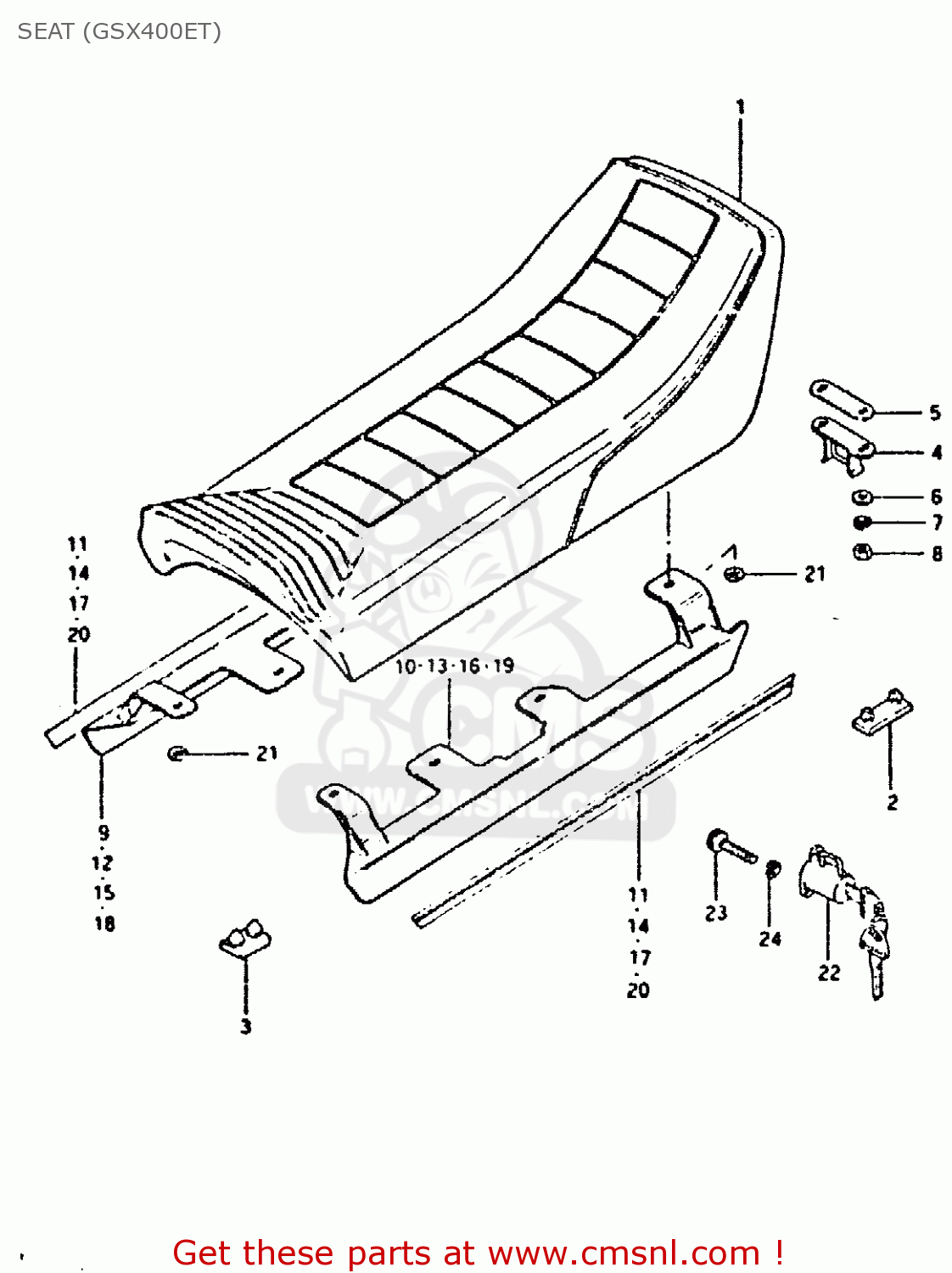

Seat (gsx400et) diagram GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

SEAT (GSX400ET) GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)
SEAT (GSX400ET) GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)
SEAT (GSX400ET) GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)
prices are in EUR
ref
part #
description
quantity
1
451004411241G
ref: 1
SEAT ASSEMBLY
€ 281.50
2
0932108009
ref: 2
CUSHION
0932108009
€ 4.00
3
0932108010
ref: 3
CUSHION
0932108010
€ 4.00
4
4521044010
ref: 4
STRIKER, SEAT LOCK
€ 0.00
5
4521744100
ref: 5
SHIM,SEAT LOCK STRIKER
4521744100
€ 4.50
6
0832221068
ref: 6
WASHER
0832221068
€ 2.00
7
0832121068
ref: 7
LOCK WASHER
0832121068
€ 2.50
8
0831022068
ref: 8
NUT 6MM
€ 2.50
9-1
4519144101019
ref: 9-1
MOLDING,SEAT
€ 42.00
9-2
4519144102019
ref: 9-2
F.NO. 500005~
MOLDING,SEAT
4519144102019
€ 42.00
10-1
4519244101019
ref: 10-1
MOLDING,SEAT
4519244101019
€ 29.50
10-2
4519244102019
ref: 10-2
F.NO. 500005~
MOLDING,SEAT
€ 29.50
11
681014486073F
ref: 11
TAPE SET
€ 0.00
12-1
451914410105H
ref: 12-1
MOULDING, SEAT RH (BLUE)
€ 42.00
12-2
451914410205H
ref: 12-2
F.NO. 500005~
MOULDING, SEAT RH (BLUE)
€ 42.00
13-1
451924410105H
ref: 13-1
MOULDING, SEAT LH (BLUE)
€ 29.50
13-2
451924410205H
ref: 13-2
F.NO. 500005~
MOULDING, SEAT LH (BLUE)
€ 29.50
14
681014486073N
ref: 14
TAPE SET
€ 0.00
15-1
451914410100J
ref: 15-1
MOLDING,SEAT
€ 42.00
15-2
451914410200J
ref: 15-2
F.NO. 500005~
MOLDING,SEAT
€ 42.00
16-1
451924410100J
ref: 16-1
MOLDING,SEAT
€ 29.50
16-2
451924410200J
ref: 16-2
F.NO. 500005~
MOLDING,SEAT
€ 29.50
17
681014486073M
ref: 17
TAPE SET
€ 0.00
18-1
4519144101737
ref: 18-1
MOULDING, SEAT RH (SILVER)
€ 42.00
18-2
4519144102737
ref: 18-2
F.NO. 500005~
MOLDING,SEAT
€ 42.00
19-1
4519244101737
ref: 19-1
MOLDING,SEAT
€ 29.50
19-2
4519244102737
ref: 19-2
F.NO. 500005~
MOLDING,SEAT
€ 29.50
20
681014486073G
ref: 20
TAPE SET
€ 0.00
21
0914806005
ref: 21
NUT
0914806005
€ 1.50
22
9570035821
ref: 22
LOCK ASSEMBLY,HELMET
9570035821
€ 57.50
23
0910606024
ref: 23
BOLT 6X11
0910606024
€ 2.50
24
0832121068
ref: 24
LOCK WASHER
0832121068
€ 2.50
