HEADLAMP

GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

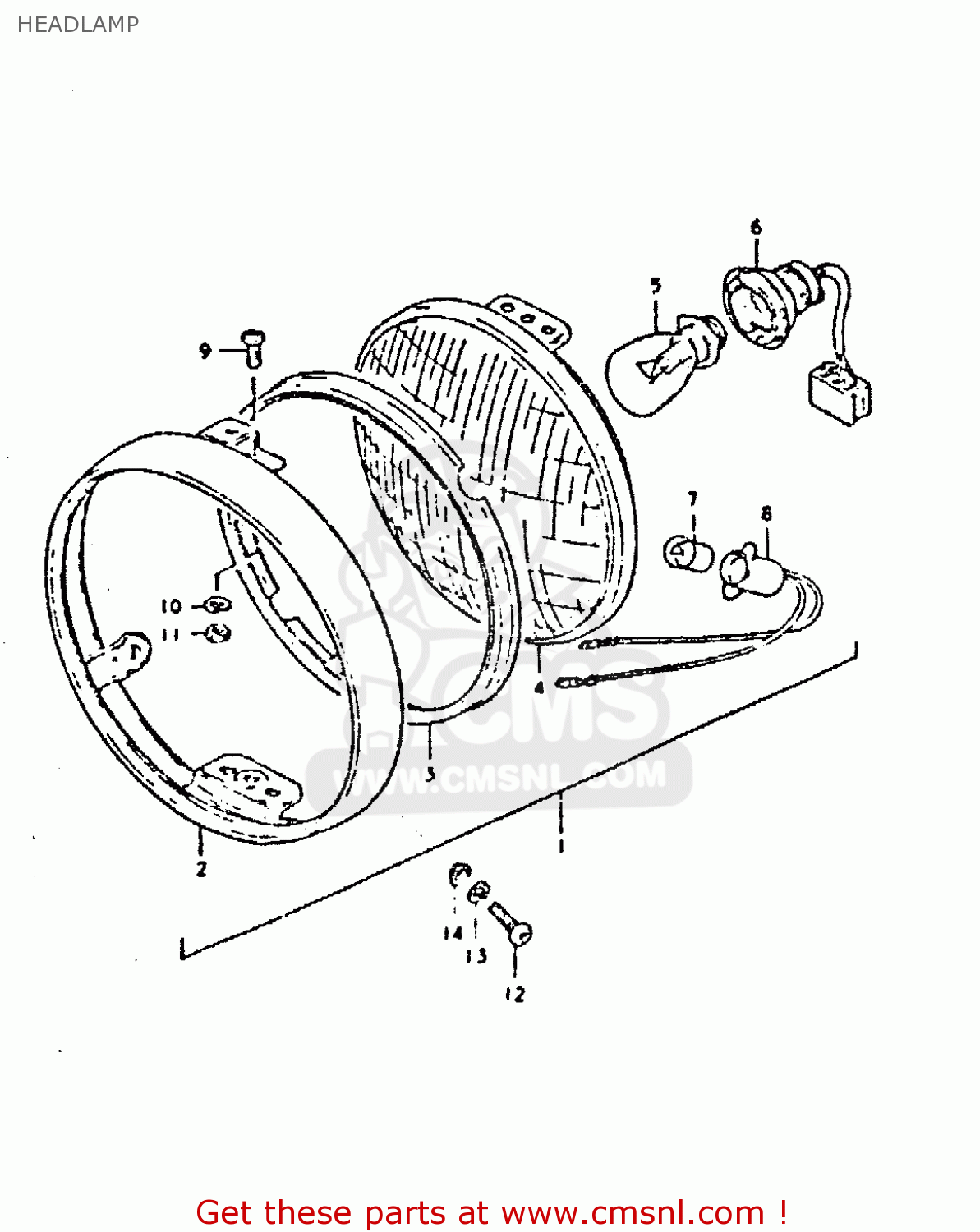

Headlamp diagram GSX400E 1981 (X) (E02 E04 E16 E22 E24 E26)

prices are in EUR

ref

part #

description

quantity

3510044651
ref: 1

HEADLAMP ASSY

€ 156.00

3511144030
ref: 2

RIM

€ 46.50

3512733032
ref: 3

RETAINER,HEADLAMP

€ 17.00

3512115617
ref: 4

UNIT, HEAD LIGHT

€ 77.50

0947112033
ref: 5

BULB 12V35/35W

€ 6.00

3517115616
ref: 6

SOCKET

€ 14.50

0947112001
ref: 7

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

3611828660
ref: 8

SOCKET

€ 11.50

0211205108
ref: 9

SCREW

€ 2.00

0832121058
ref: 10

LOCK WASHER

€ 2.00

0831022058
ref: 11

NUT

€ 2.50

0912505022
ref: 12

SCREW

€ 3.50

0916205003
ref: 13

WASHER,LOCK

€ 2.00

0916906021
ref: 14

WASHER

€ 2.50
